General

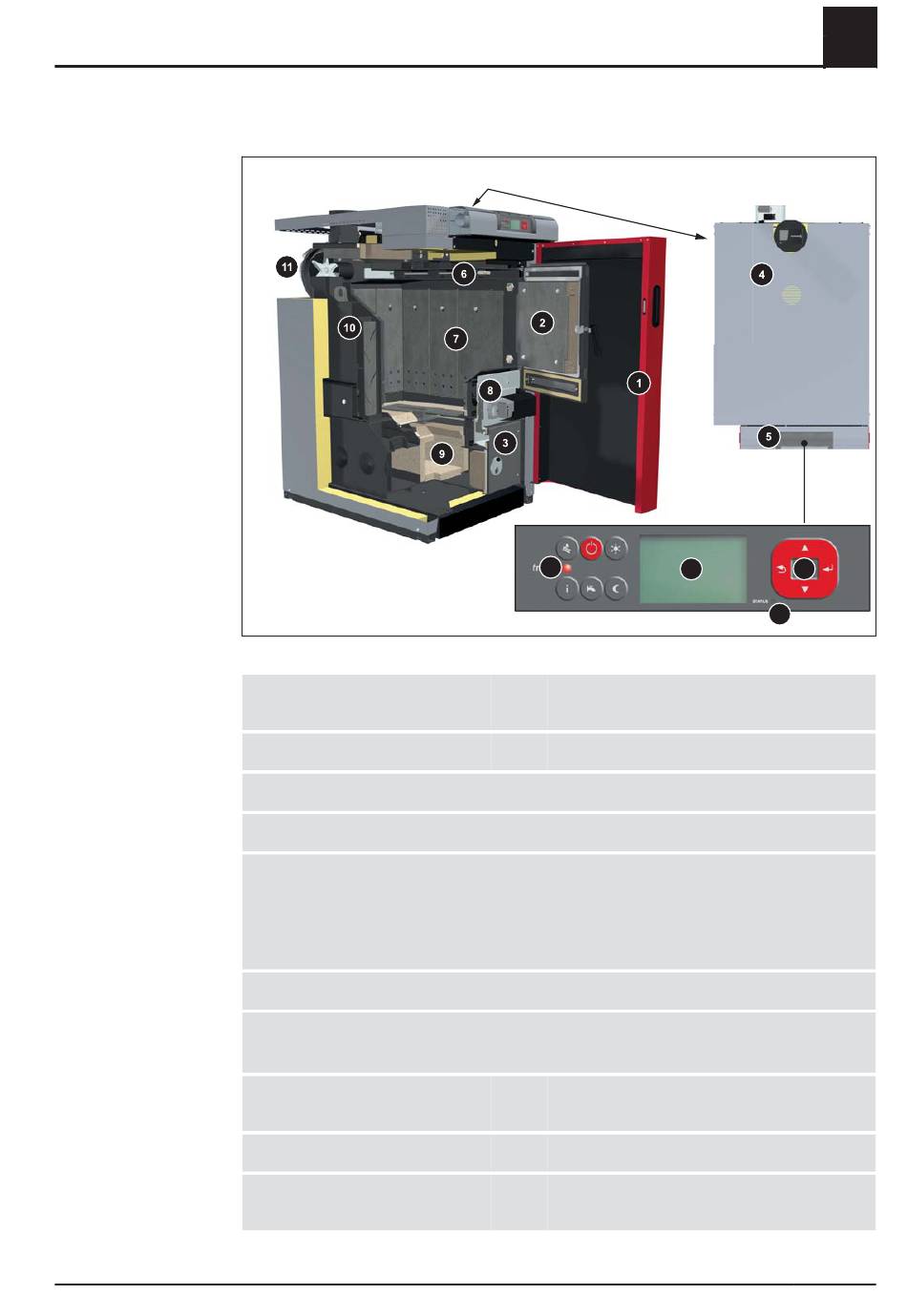

S1 Turbo Product Overview

1 1 .1 S1 Turbo Product Overview
Operating Instructions S1 Turbo | B0980113_en
1 Insulated door
2 Fuel loading door
5 Lambdatronic S 3200 S1 boiler controller
5.1 Visual display showing operating statuses and parameters
5.2 Status LED to display the operating status:
- GREEN constant: BOILER ACTIVE (heating up/heating)
- GREEN flashing (interval: 5 sec OFF, 1 sec ON): OFF
- ORANGE flashing: WARNING
- RED flashing: FAULT
5.3 Navigation keys to move around in the menus and to change the parameter values
5.4 Function keys to call up individual boiler functions directly
NOTICE! For key layout see operating instructions for boiler controller
6 Carbonisation gas duct
flap
7 Cladding plates
8 Servo-motor/manual ad‐
juster
5.4
3 Combustion chamber door with inspection
glass
4 Controller cover
9 Combustion chamber
10 WOS (Efficiency Optimisation System)
11 Induced draught fan
1
5.1 5.3
5.2
5
