Eaton C Series Instruction Leaflet page 2

Instruction Leaflet IL01203016E
Effective April 2016
2

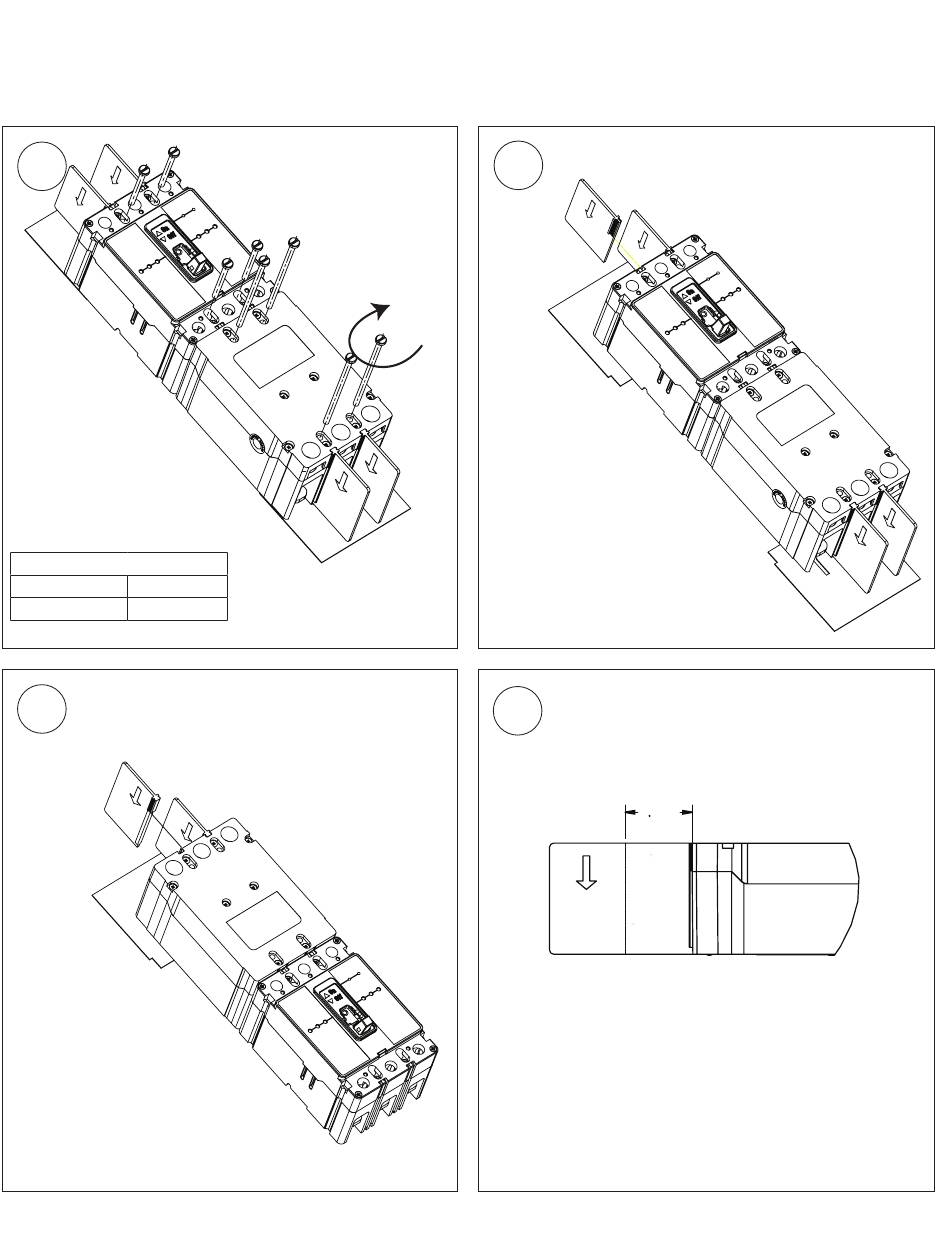

Hardware Required
FD Breaker 8-32, 1.5 in. long
Limiter Module 8-32, 3.5 in. long
4 Phase Mounting Barriers
(Provided) Required, Line
Side Only.
Line
Mounted
Limiter
Phase Barriers (Provided)
Required, Line Side Only.
2 EATON www.eaton.com
10 in-lb (1.1 N•m)
Series C F-frame circuit breaker with current
limiter module - instruction leaflet for circuit
breaker and motor circuit protector
3
Load
Mounted
Limiter
Phase Barriers (Provided)
Required, Line and Load
Sides of Breaker.
5
2.000
(51)
Phase Barriers Can Be
Shortened to a Minimum
of 2" (51 mm).
Mounting Barriers
(Provided) Required,
Line and Load Sides
of Breaker.
