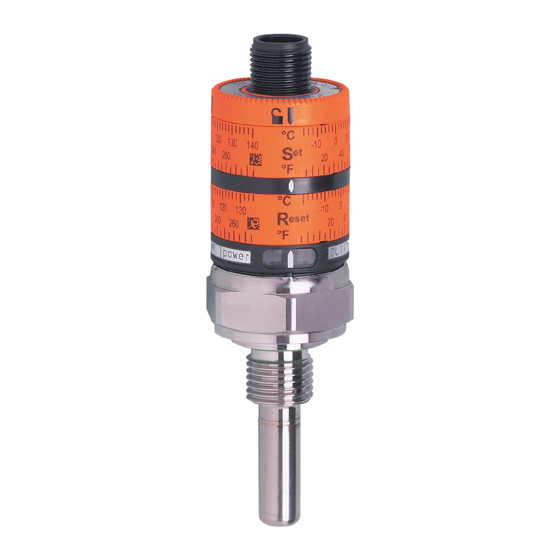

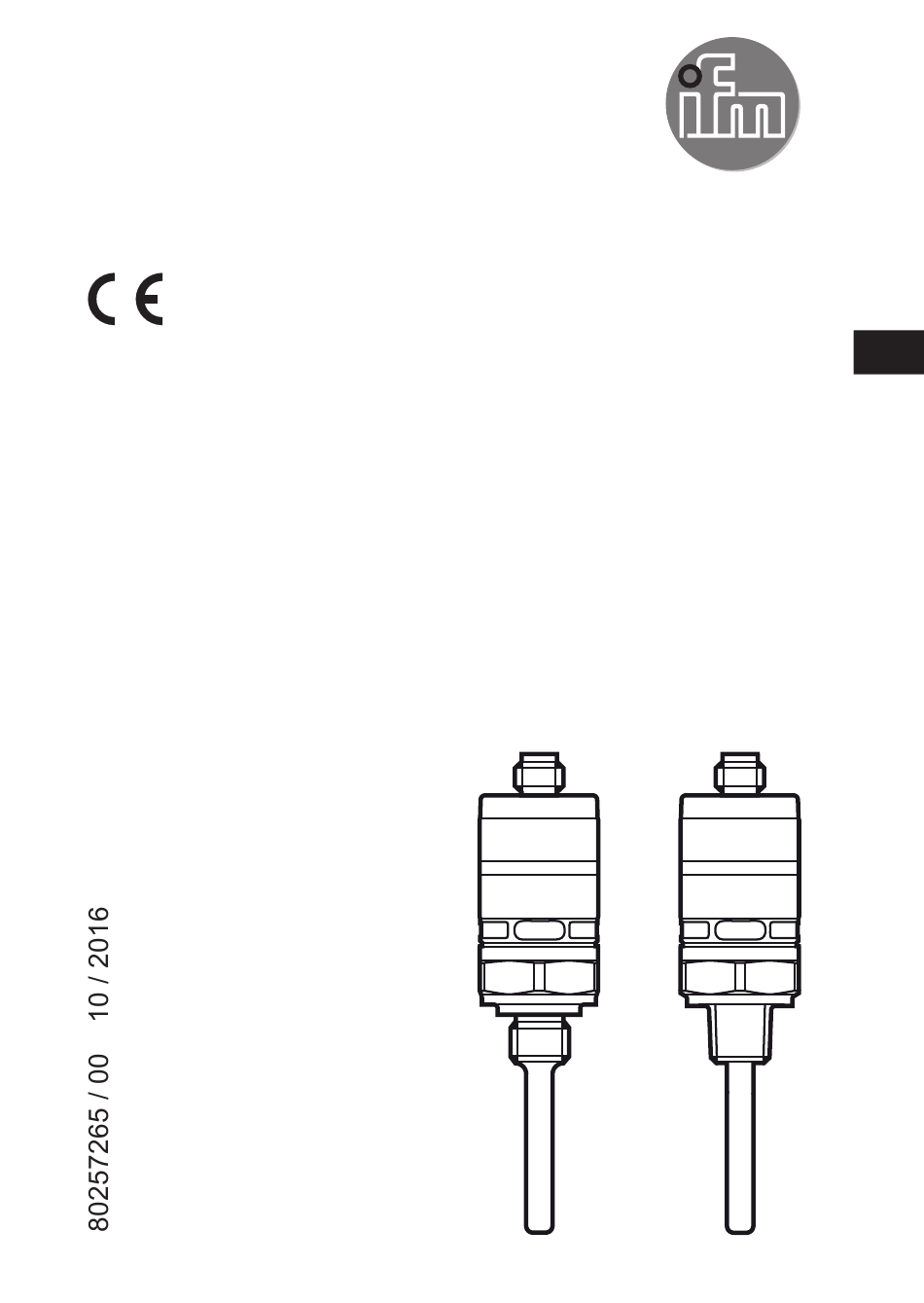

- Page 1 Operating instructions Electronic temperature sensor TK61xx TK63xx...
-
Page 2: Safety Instructions
Contents 1 Safety instructions ....................2 2 Functions and features ..................2 3 Function .......................3 4 Installation......................3 5 Electrical connection ....................4 6 Setting........................5 1 Safety instructions • Please read this document prior to set-up of the unit. Ensure that the product is suitable for your application without any restrictions. - Page 3 3 Function The unit switches the two complementary outputs OUT1 / OUT2: With rising temperature OUT1 closes / OUT2 opens when the value SET is reached. With falling temperature OUT1 opens / OUT2 closes when the value RESET is reached. RESET T = Temperature OUT1 (Hno)
-
Page 4: Electrical Connection
5 Electrical connection The unit must be connected by a qualified electrician. The national and international regulations for the installation of electrical equipment must be adhered to. Voltage supply according to EN 50178, SELV, PELV. ► Disconnect power. ► Connect the unit as follows: BK: black OUT2 BN: brown... - Page 5 ► Rotate RESET ring to desired temperature. The RESET value must be lower than the SET value. Minimum distance between SET and RESET = 3 K (= hysteresis). ► Turn the locking ring to the locked position. Technical data, approvals, accessories and further information at www.ifm.com.
