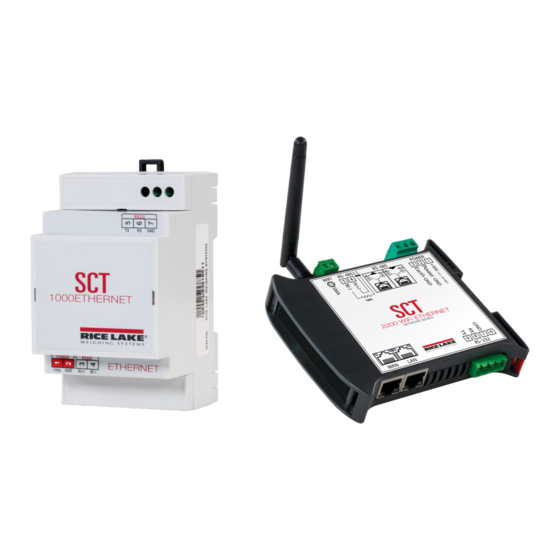

- Page 1 SCT-1000ETHERNET/ SCT-2200WIFI Ethernet, Modbus TCP, Wi-Fi Operation Manual July 15, 2019 PN 190959...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
6.0 Compliance ................22 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 SCT-1000Ethernet / SCT-2200WIFI Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. - Page 6 SCT-1000Ethernet / SCT-2200WIFI The SCT-1000 Ethernet module and SCT-2200 Wi-Fi module add the following communication functions to the SCT-2200 indicator, See Section 5.1 on page 20 for full specifications: Device Name Functions SCT-1000 Ethernet 1 RS-485 bidirectional port for connection to SCT-2200...
-
Page 7: Setup
2. The shielding can be connected to a single point in the network (as shown in Figure 2-1) or at both ends, however, it is important that all the devices have the same potential in order to avoid forming ground rings. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Electrical Diagrams
SCT-1000Ethernet / SCT-2200WIFI 3. Connect two termination resistances equal to the characteristic impedance of the cable (typically 120 Ω, see Figure 2-1 on page 3). Only connect the two devices at the two ends of the ring connection (Example: indicator and last device). -
Page 9: Wi-Fi Module
3. In Network and Internet, select Ethernet, then select Change Adapter Options. See step 3 in Figure 2-4.. Figure 2-4. Setting IP Address 4. In the Network Connections window, double click Ethernet. See Figure 2-5. Figure 2-5. Network Connections © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Setting Upwi-Fi
SCT-1000Ethernet / SCT-2200WIFI 5. In Ethernet Status, click Properties. See step 5 in Figure 2-6. 6. Highlight Internet Protocol Version 4 (TCP/IPV4) and click Properties.See step 6 in Figure 2-6. 7. Toggle Use the following IP address. See step 7 in Figure 2-6. -
Page 11: Sct-1000 Ethernet Module Parameters
IP Address Selection, General Configuration Settings or this device can be rebooted by selecting Restore Factory Defaults. The top of the page displays the module’s Name, Firmware Revision, IP Address and MAC Address. Click Reboot to reboot the module. Figure 3-2. Miscellaneous Settings Page © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Ip Address Selection
SCT-1000Ethernet / SCT-2200WIFI 3.2.1 IP Address Selection This section provides a way to change the Address Type from the drop-down menu, as well as enter the Static IP Address, Subnet Mask, and Default Gateway. Click Save and Reboot to save changes and reboot the module. -
Page 13: Port Settings
Set the Local TCP Port Number, TCP Timeout, and Modbus Mode using the fields and drop-down in the TCP table. TCP settings are only editable if the Protocol parameter is set to TCP in the LAN Settings table. Note Figure 3-7. TCP Settings © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Tunneling Mode
SCT-1000Ethernet / SCT-2200WIFI 3.3.2 Tunneling Mode Tunneling mode allows the Ethernet protocol to overcome the limits of serial communication by creating a virtual connection. This mode requires the use of two modules and their respective UDP ports.This can only be performed in Serial to Ethernet mode. -
Page 15: Broadcast Mode
2. Enter a password into the Password field, then type the same password again into the Re-enter field. 3. Click Submit! to save the password. Figure 3-8. Setting a Password Submit. To disable the Password feature, remove all text in both password fields and click Note © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Sct-2200 Wi-Fi Module Parameters
SCT-1000Ethernet / SCT-2200WIFI SCT-2200 Wi-Fi Module Parameters Status and Configuration Type the IP address into an internet browser. The default address is 192.168.16.254. • The SCT-2200 Wi-Fi will require a password. See Figure 4-1. Enter default device Username: admin and Password: admin. -
Page 17: Netmode
• WAN default IP is dynamic • LAN and Wi-Fi are enabled by the default DHCP server Scale SCT-2200 Wi- Wi-Fi CLIENT Module (PHONE, PAD) Wi-Fi SERIAL COM1 ETH2 ETH1 Figure 4-4. Default Mode Model © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Serial To Ethernet
SCT-1000Ethernet / SCT-2200WIFI 4.2.2 Serial to Ethernet • ETH1 is enabled • Wi-Fi and ETH2 are disabled • Two-way data communication is possible between COM1 and the network • Ethernet can be configured as a dynamic IP address (DHCP) or as a static IP address (STATIC) -
Page 19: Serial To Wi-Fi Ap
• Wi-Fi device can connect with the module and become the device under Wi-Fi LAN Scale SCT-2200 Wi-Fi Wi-Fi CLIENT Module Wi-Fi SERIAL COM1 Figure 4-11. Serial to Wi-Fi AP Mode Model Figure 4-12. Serial to Wi-Fi AP © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 20: Serial Settings
SCT-1000Ethernet / SCT-2200WIFI Serial Settings The Serial Settings menu allows for the parameters of the serial communications to be changed. There are 3 columns of information in this menu. 1. The first column lists the name of the parameter to be adjusted. -
Page 21: Tcp Server
The module will record only the last information on the remote connection. Serial received data will be sent directly to the recorded remote ip, port. SCT-2200 Wi-Fi UDP Server UDP Client Figure 4-16. UDP Server Model © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 22: Udp Client
SCT-1000Ethernet / SCT-2200WIFI 4.3.4 UDP Client In this mode, the module directly sends the serial data to the specified ip port. The serial data returned form the server-side will be distributed to the serial port. SCT-2200 Wi-Fi UDP Client UDP Server Figure 4-17. -
Page 23: Settings Managment
4. Click Import. The unit will restart with the imported settings enabled. Load Factory Defaults To restore factory default settings to the SCT-2200 Wi-Fi, click Load Default. Upon system reboot, the system will be returned to factory settings. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 24: Specifications
SCT-1000Ethernet / SCT-2200WIFI Specifications SCT-1000 Ethernet Specifications Physical Characteristics Power Supply +5Vdc / +12Vdc (AMP) +12Vdc +24Vdc (WIRE TERMINAL) Max Consumption 200mA, 5W at 24Vdc Dimensions 2" x 2.5" x 3.5" (53mm x 58mm x 90mm) Case ABS case for panel mounting on Omega/DIN bar Operating Temperature 14°F +122°F (-10°C +50°C) -
Page 25: Sct-2200 Wi-Fi Specifications
The SCT 22000 complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. Radio certificate number: WiFi: US: ZXVHLK-RM04 © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 26: Compliance
SCT-1000Ethernet / SCT-2200WIFI Compliance DECLARATIONOF CONFORMITY SCT indicator series 2014/30/EU EMC EN 61000-6-2:2015, EN 61000-6-4:2007+A1:2011, EN61326-1:2013, EN55011:2009 +A1:2010 2014/35/EU LVD EN 61010-1:2010 2011/65/EU RoHS EN 50581:2012 __________________________ ________________ ________ __________________________ May 3, 2019 __________________________ __________________________ __________________________ www.RiceLake.com Visit our website... - Page 28 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
