Summary of Contents for Rice Lake SCT-1SX-Ethernet/IP

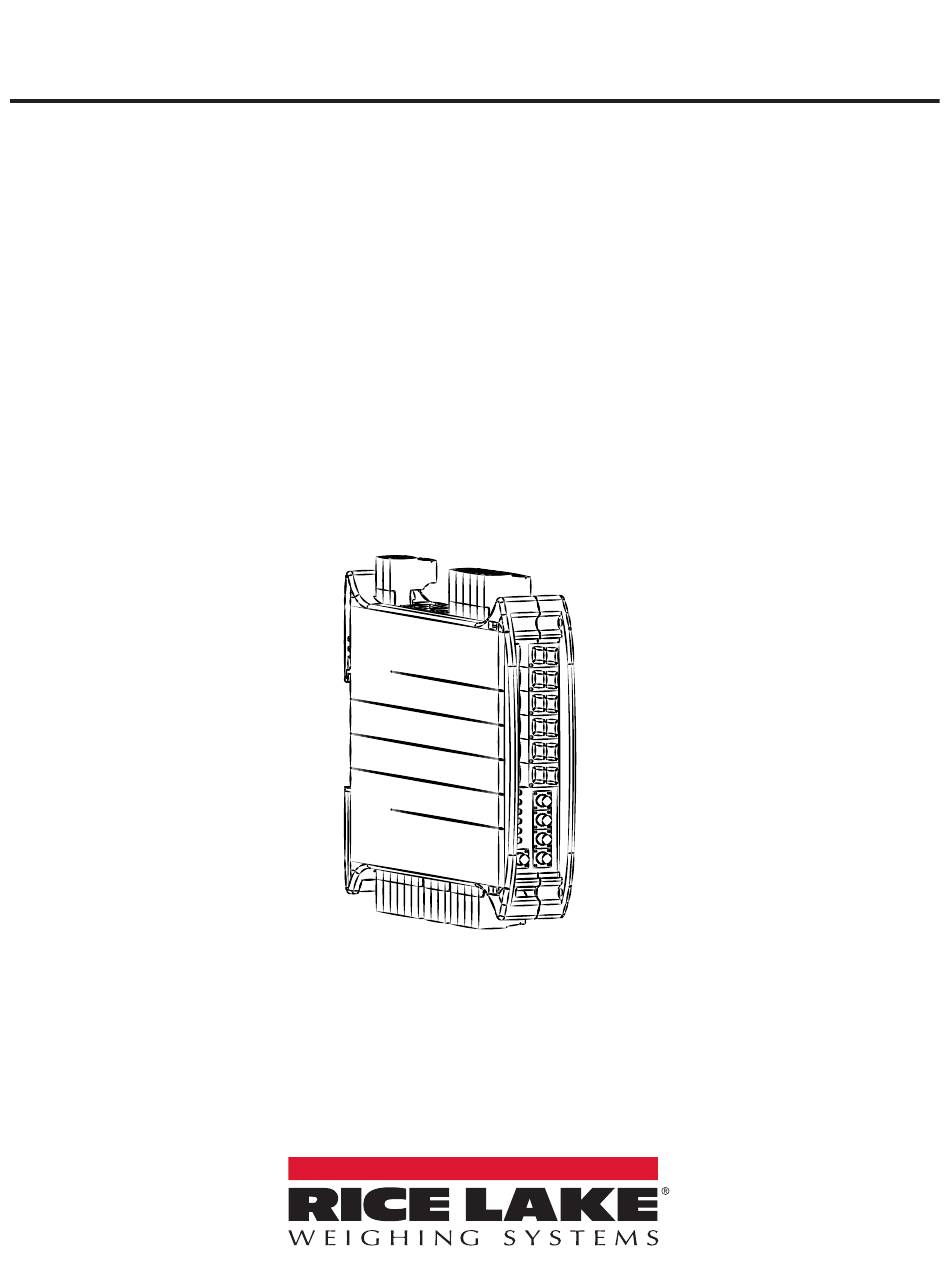

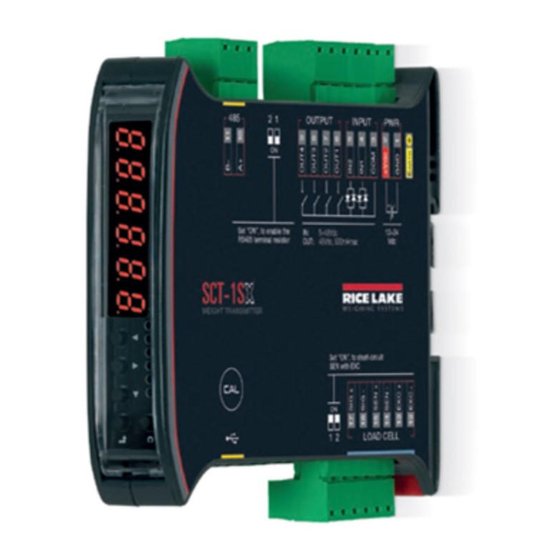

- Page 1 SCT-1SX-Ethernet/IP Quick Start Guide September 29, 2023 PN 219716 Rev A...
-
Page 3: Electrical Schematic
12 to 24 Vdc LPS or Class 2 power source. 12 13 14 15 16 17 LOAD CELL Internal use Manuals are available from Rice Lake Weighing Systems at www.ricelake.com/manuals Warranty information is available at www.ricelake.com/warranties © Rice Lake Weighing Systems • All Rights Reserved... -
Page 4: Key Functions
SCT-1SX-Ethernet/IP 2. Key Functions Configuration menu Weighing mode Decreases digit / Scrolls down. Clears the displayed gross weight. Increases digit / Scrolls up. Short press: executes semiautomatic tare. Long press: allows to enter known tare. -
Page 5: Configuration Menu
Date and time setting (with optional card only). HOW TO EXIT THE MENU AND SAVE YOUR CONFIGURATION 1. Press key repeatedly until appears; press to save or press to exit without saving. save? © Rice Lake Weighing Systems • All Rights Reserved... -
Page 6: Theoretical Calibration
SCT-1SX-Ethernet/IP 5. Maximum Scale Capacity, Increment and Decimal Point Settings Set the decimal point position and the minimum scale increment* 888888 div.deC 0,001 0,002 0,005 0,01 0,02 0,05 div.deC CapaC Set the maximum scale capacity* 999999 (max Examples: For a 60000 lb scale, with 2 lb For a 10000 g scale, with 0.1 g increment:... - Page 7 It allows to verify signal of each channel. It must be included into the range 0 to 3 mV/V. adC.v Signal have to be stable and it have to increase by increasing the weight on the scale. © Rice Lake Weighing Systems • All Rights Reserved...
-
Page 8: Input Settings
SCT-1SX-Ethernet/IP 10. Input Settings 888888 div.deC inps div.deC inp.01 INP.02 inp.02 none Input disabled. dis.key When input is active, transmitter keyboard is locked. When input is active, transmitter reboots. Emulation of key. prin Emulation of key. mode Emulation of key. -
Page 9: Output Settings
12. Fieldbus Settings 888888 div.deC FLDBUS div.deC Fb.ini ehip Fb.Se? Set the IP address: Fb.Se div.deC a.CfG Dynamic IP address. ip.add Static IP address. ne.msk Subnet mask. Ga.way Default gateway. © Rice Lake Weighing Systems • All Rights Reserved... -
Page 10: Programming Errors
SCT-1SX-Ethernet/IP 13. Weight Filter 888888 div.deC filer The active weight filter is displayed, alternating with the weight value. Press keys to scroll through the available filters (from slowest to fastest, F1 to F11). 14. Programming Errors MESSAGE DESCRIPTION SOLUTION First calibrate the zero point (zero), then proceed with sample preC. - Page 11 Digital output 2 status (0 = OFF; 1 = ON). Bit 0 Digital output 1 status (0 = OFF; 1 = ON). (lsb) (MSB) Selected page Shows the value of the selected page (3001). (LSB) (MSB) µV µV value. (LSB) © Rice Lake Weighing Systems • All Rights Reserved...
- Page 12 SCT-1SX-Ethernet/IP 15.2 ETHERNET/IP REGISTERS FOR COMMAND SENDING Data Byte DESCRIPTION Not used Always 0. Main available commands: Value Command 00 Hex No command 01 Hex Scale zeroing 02 Hex Tare Command 03 Hex Preset Tare 0A Hex Setpoint 1 setting...
- Page 13 Ethernet/IP Notes © Rice Lake Weighing Systems • All Rights Reserved...
- Page 14 SCT-1SX-Ethernet/IP Notes Visit our website www.RiceLake.com...
- Page 16 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 September 29, 2023 PN 219716 Rev A www.ricelake.com...
