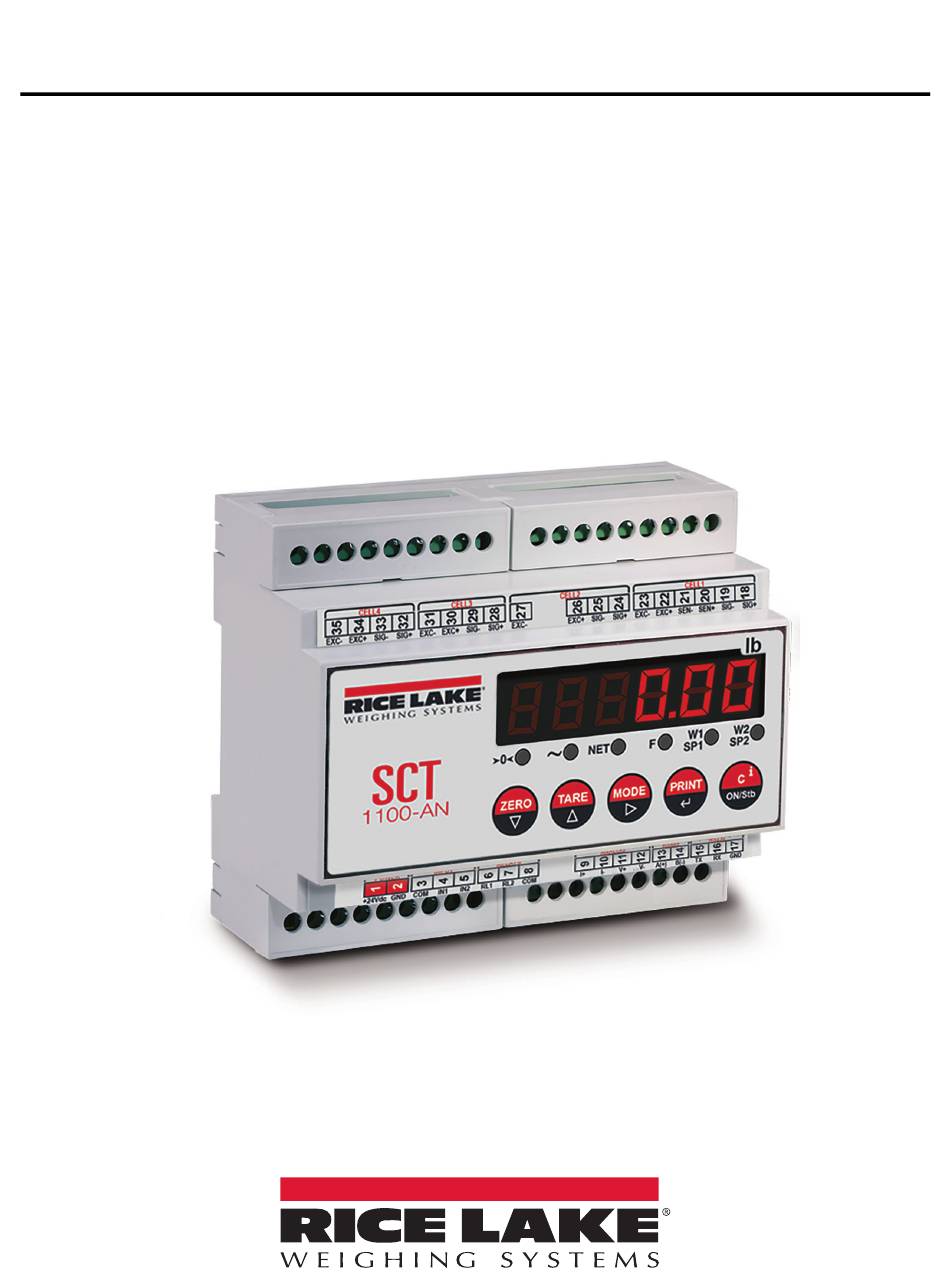

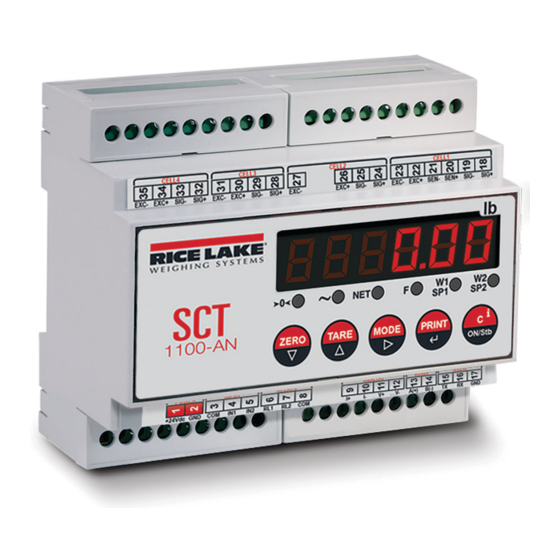

- Page 1 SCT-1100 Advanced Series Weight Transmitter Version 8.0 4 Technical Manual July 24, 2019 PN 185658 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Filter Parameters ................26 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 9.0 Specifications ............... . . 52 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
-
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 6: Options
SCT-1100 Weight Transmitter General Safety (Continued) Failure to follow could result in damage to equipment or corruption to and loss of data. IMPORTANT Keep away from heat sources and direct sunlight. Protect the instrument from environmental factors: rain, snow, dust, etc. Do not wash, dip in water or spill liquid on the instrument. -
Page 7: Overview
Connection for serial line RS-485 Connection for serial line RS-232 Connections for load cell Table 1-1. SCT-1100 Components For detailed call out of pin designations, See Section 2.5 on page 7 Note © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Panel Display
SCT-1100 Weight Transmitter 1.3.1 Panel Display The front panel of the SCT-1100 consists of a display with six digits that are 0.5 in (13 mm) high, six LED annunciators and a five-key keyboard. Figure 1-2. SCT-1100 Front Panel Item No. Symbol Description Units –... -
Page 9: Installation
Installation Installation Rice Lake Weighing Systems recommends the instrument and the platform (transducer) be installed on a flat level surface, that is stable and vibration free. Location Selection The following should be considered when selecting a location for the equipment: IMPORTANT •... -
Page 10: Grounding The System
SCT-1100 Weight Transmitter Grounding the System A centrally located, single point ground, such as the ground bar of the electric panel, must be created and/or identified for proper grounding and functioning of the system. The ground must be sized so that the total resistance of grounding is lower than 1Ω. -
Page 11: Wiring Schematic
Table 2-1. SCT-1100 Wiring Schematic The maximum resistance applicable on the output current is 350 Ω and the minimum resistance applicable on the Note output voltage is 10 k Ω . © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Connection To The Load Cell
SCT-1100 Weight Transmitter Connection to the Load Cell The load cell 1 terminal board of the SCT-1100 must be connected to the 6-wire load cell; if using a 4-wire load in the load cell 1 terminal board, cell excitation must jumper to sense, See Figure 2-3. -
Page 13: Input/Output Wiring
Figure 2-5. Input/Output Wiring • Output power: 48 Vac, 150mA max (or 60 Vdc, 150mA max) • Input voltage: 12Vdc - 24 Vdc max • Input current: 5 mA - 20 mA max © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Operation
SCT-1100 Weight Transmitter Operation Basic Operation Power must be provided to the SCT-1100 through an external AC/DC charger that supplies a stabilized voltage of 12 VDC to 24 VDC while connected to an appropriately rated AC power supply. Connect the two power supply wires to the appropriate terminals on the side of the instrument, See Figure 1-1 on page 3.1.1... -
Page 15: Tare
6. Slowly press multiple times until SAVE?displays. • Press to confirm and store to the instrument memory • Press any other key to cancel and exit without saving © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Multi-Range Function
SCT-1100 Weight Transmitter Multi-Range Function The multi-range function allows for subdividing the scale capacity in two, each up to 3000 divisions. Example: with a 10 kg cell platform it is possible to approve the weighing system with: Single range: 6 kg capacity and 2 g division (3000 div.) Dual range: 6/3 kg capacity and 2/1 g division (3000 + 3000 div.) Multi-range functioning is indicated by illumination of the relative LED identifying the operating range;... -
Page 17: Simultaneous Transmitter Mode
5. Press to confirm. 6. Slowly press multiple times until SAVE?displays. • Press to confirm and store to the instrument memory • Press any other key to cancel and exit without saving © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Selecting The Operating Mode
SCT-1100 Weight Transmitter Selecting the Operating Mode In addition to the standard weighing mode, the instrument can be set to carry out four alternative operational functions. Each operating mode activates certain LEDs. To set the operating mode: 1. Turn on the instrument and press while the firmware version displays. -
Page 19: Sensitivity Times Ten
10. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 20: Peak Hold Weight Detection
SCT-1100 Weight Transmitter 3.7.4 Peak Hold Weight Detection This mode can be used to store the maximum (peak) weight value measured during the weighment. Operation If Peak Hold Weight Detection has been set as the functioning mode, the following functions are enabled while in weigh mode: 1. -
Page 21: Setup Mode
In setup: press multiple times to display SAvE? prompt and/or press to exit a step without confirming the setting In numeric input: clears the present value Table 4-1. Key Functions in Setup Mode © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 22: Quick Setup Menu
SCT-1100 Weight Transmitter Quick Setup Menu Press to set channel type ind.ch, transm, or dep.ch. type Press to select number of channels. nChan Press to select channel to calibrate. Chan Press to set decimals and minimum division. DIV.DEC Press to set the scale capacity. CAPAC Press to set the total capacity of the load cells. -
Page 23: Default Factory Calibration
Section 4.6 on page 30 for Analog Output Settings. 4.2.4 Inputs Section 4.5.1 on page 27 For Input setup parameters. 4.2.5 Output Functions SeeSection 4.5.2 on page 28 for Output Functions. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 24: Setup Mode Menu
SCT-1100 Weight Transmitter Setup Mode Menu type ind.ch transm dep.ch F.Mode FUNCT conver alibi REACT zero inst viss aLWAYS peak TARE LOCK disab unLOCK RS.ZERo disab ENAB Figure 4-5 on ConfiG setup page dsp.rf NORM diaG PRG.VER div.int adC.vu Figure 6-1 on serial page adC.pnt... -
Page 25: Type Parameters
Disables restore zero after power cycle disab Enables restore zero after power cycle Enab NOTE: This parameter does not display if TrAnSM is selected in the TYPE parameter. Table 4-3. Function Mode Parameter © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 26: Setup Parameters
SCT-1100 Weight Transmitter 4.3.3 Setup Parameters setup Figure 4-5 on page ConfiG dspr.rf NoRM. 1 hz 2.5 hz 5 hz 10 hz Figure 6-1 on 20 hz page serial zero ini.al i.aLib.? none dis.hey inputs inp.1 print mode Figure 4-6 on tare inp.2 page... -
Page 27: Diagnostic Menu
Serial Number – displays the instrument’s serial number SEr.nuM Press to select the desired radio channel; OKdisplays if the configuration is successful, ERRoR displays if not successful S.radio Table 4-5. Diagnostics Menu © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 28: Configuration Menu
SCT-1100 Weight Transmitter Configuration Menu CONFIG nChan 1..4 Chan 1..4 FLT.3 - .0 fiLT.50 CUSToM FF400 FF200.3 - .1 FF50.3 - .1 DYN.3 - .0 H.R.6 - .0 FF100.4 - .1 param stabiL Enab C.PERC auto-0 DISAB CyCLe C.PERC 0-perC TR 1/2 TR 1/4 0.traCK... - Page 29 GraV, Scale calibration – See Section 5.0 on page 32 Calib Zero calibration – See Section 5.0 on page 32 0.CaLib Table 4-6. Config Menu Parameters and Settings (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 30: Filter Parameters
SCT-1100 Weight Transmitter 4.4.1 Filter Parameters Standard digital filtering uses mathematical averaging to compensate for the noise that the A/D converter sends periodically because of external vibration. This filter compensation makes data less susceptible to a DC signal bias error for some signals. Each of the filters of the SCT-1100 are intended to compensate for different types and intensities of digital noise and vibration. -
Page 31: Input/Output Functions
– Turning off the instrument – C key – ON/OFF key – Print key print – Mode key (Default for input 2) Mode – Tare key tare Table 4-8. Input Functions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 32: Output Functions
SCT-1100 Weight Transmitter 4.5.2 Output Functions The parameters of each of the outputs is set in the setup outPut menu. See Figure 4-6 on page Some of functioning modes of the outputs are relative to the specific functioning modes of the instrument; see the Note following descriptions for the details. - Page 33 In a switching condition with stability, the output is enabled only when the weight is stable. The delay time is evaluated when a setpoint on gross weight or setpoint on net weight is selected as an output function. Table 4-9. Output Functions (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 34: Analog Output
SCT-1100 Weight Transmitter Analog Output An optional analog output is configurable at 0-20mA, 4-20mA, 0-10Vdc, 0-5Vdc; with minimum and maximum settable values. The output voltage and the current from the interface are proportional to the gross weight or net weight present on the scale. The analog output is updated every 20ms and takes on the value corresponding to the weight converted in that instant;... - Page 35 Approximate Values Between The DA Converter and Analog Output D/A Converter Voltage Current (mA) 1200 12700 58600 62650 Table 4-11. DA Converter and Analog Output Ao = Analog output Positive Weight Negative Weight Figure 4-8. Analog Output © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 36: Calibration
SCT-1100 Weight Transmitter Calibration The type of calibration used is dependent on the type of application chosen for the instrument: independent channels (ind.Ch) and dependent channels for (dEP.Ch), which can be digitally equalized. See the type parameterin Table 4-2 on page Calibration Menu XXXXXX XXXXXX... -
Page 37: Calibration Parameters
5. Navigate to CALib. Press to set parameter. dECi displays. Press to set parameter. 6. Navigate menu to select the decimal point location Press to confirm selection. u.M. displays. Press to set parameter. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 38: Calibration Single Channel (Known Weight)
SCT-1100 Weight Transmitter By setting the divisions of the first range, the divisions for the second range are automatically set. Note 7. Navigate to select the unit of measure. Press to confirm selection. div displays. Press to set parameter. 8. Navigate to select the scale’s minimum division, or the first range of dual range. Press to confirm value rAnGE1 displays. -
Page 39: Calibration With Linearization Points
4. Navigate to CALib. Press . to enter menu. DECi displays. Press to set parameter. 5. Navigate to set the decimal place. Press to confirm. u.M. displays. Press to set parameter. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 40: Dependent Channels
SCT-1100 Weight Transmitter 6. Navigate to set the weight unit. Press to confirm. diV displays. Press to set parameter. 7. Navigate to set the display divisions. Press to confirm. rAnGE1 displays. Press 8. Enter the total capacity of the scale or the first range in case of multi-range functioning. Press to confirm. -
Page 41: Gravity Setting
Input Signal Raw A/D (mV) Count 1830 543564 1085373 1627166 2168897 12.5 2710715 3252467 Table 5-2. Ideal A/D Raw Counts © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 42: Communications
SCT-1100 Weight Transmitter Communications Serial Outputs The instrument has two bidirectional serial outputs which are ASCII code compatible with most printers, remote displays, PCs and other devices. See Section 2.5 on page 7 for connection information. Transmission of data through the serial ports can be configured in the parameters PC SEL, PCModE and Pr.ModE in the setup mode. -
Page 43: Serial Port Transmission Modes
RS-232 port Communication between the instrument and the PC takes place through the RS-232 port and transmission of data to the printer through the RS-485 port Table 6-2. PC Port Selection © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 44: Prn Port
SCT-1100 Weight Transmitter 6.2.2 PRN PORT This section describes the selectable serial weight transmission modes of the PRN serial port through the parameter set in PR Mode Parameter Settings Description Serial Format for the printer port Com.Prn Transmission to serial printer Pr. -
Page 45: Pc Port
If a broadcast address command (99) is received no answer is given; If the command is correct it is executed Set baud rate - selection of the data transmission speed (baud = bit/second) BAUD Set parity, word, stop bit. Table 6-4. PC Port Parameters and Settings © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 46: Serial Commands Format
SCT-1100 Weight Transmitter Serial Commands Format Legend [CC] o <II> Instrument ID, e.g. 00 (The ID is only used with RS-485 protocol) <CR LF> Carriage Return plus Line Feed (ASCII character 13 and 10) <ESC> ASCII character 27 <STX> ASCII character 02 Space character, ASCII character 32 Table 6-5. - Page 47 In which: VVVVVV is the manual tare value with the decimal point, from 1 to 6 characters; the non significant zeros can be omitted. Instrument response: [CC]OK<CR LF> if the command has been received; no answer for the W command. © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 48 SCT-1100 Weight Transmitter Command for Displaying Temporary Message on an Instrument [CC]DISPNNVVVVVV <CR LF> In which: • NN is the instrument display number, standard 00 (ASCII hex) • V is the message: • if present, it is shown on the NN display •...
- Page 49 Gross weight with unit of measure Tare Type; Blank spaces if semi-automatic tare; PT If preset tare TTTTTTTTUM Tare value with unit of measure XXXXXXXUM Not used Table 6-9. RALL Command Response Characters © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 50 SCT-1100 Weight Transmitter Characters Description Scale status • 000 Weighing • 001 Numeric value input • 002 Setup menu Counter of pressed keys Code of last key pressed Not used XXXXX Last rewriting number stored in the alibi memory YYYYYY Last weigh number stored in the alibi memory Table 6-9.
-
Page 51: Transmission Protocols
Net weight on 10 characters including possible sign and decimal point Comma character PT if the tare is manual, if YY = two empty spaces display with semiautomatic tare Comma character Table 6-11. Extended String Characters © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 52: Multi-Scale String
SCT-1100 Weight Transmitter Characters Description TTTTTTTTTT Tare weight on 10 characters including possible sign and decimal point Comma character PPPPPPPPPP Always 0 Comma character Unit of measure Kg, bg, bt, lb; (b signifies blank) Comma character dd/mm/yy Date in the dd/mm/yy format (only with REXD command) Two space characters, ASCII decimal 32 character (only with REXD command) hh:mm:ss Time format (only with REXD command) -
Page 53: Secondary Mode Strings
ALL.STD. Press to confirm selection. ConFiG Serial CoM.PC PCMode 3. Press until the instrument displays . Press to confirm. displays momentarily and the SAVE? Store instrument reboots. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 54: Troubleshooting
SCT-1100 Weight Transmitter Troubleshooting Use the following table to troubleshoot error messages on the instrument. Message Description Displays when not connected at start-up, if there are communication problems between the instrument and the board or when the alibi AL.Err memory operation is selected; The unit of measure conversion is automatically set, but not saved in the setup mode Printing - PRN serial port is occupied or the instrument is waiting to transmit a print job to a PC bUSy Trying to print with an unstable weight... -
Page 55: Compliance
CONFORMITY SCT indicator series 2014/30/EU EMC EN 61000-6-2:2015, EN 61000-6-4:2007+A1:2011, EN61326-1:2013, EN55011:2009 +A1:2010 2014/35/EU LVD EN 61010-1:2010 2011/65/EU RoHS EN 50581:2012 __________________________ ________________ _________ __________________________ May 3, 2019 __________________________ __________________________ __________________________ © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 56: Specifications
SCT-1100 Weight Transmitter Specifications Power DC Communication Power Supply 12-24 VDC Digital inputs/Outputs Power Consumption 70 mA min to 100 mA max 2 inputs opto isolated 12-24 VDC Excitation Voltage 5 VDC, 120mA, 8 x 350Ω 2 outputs 150 mA 48 VAC/150 mA 60 VDC Analog Signal Input ±39 mV Range... -
Page 58: July
Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
