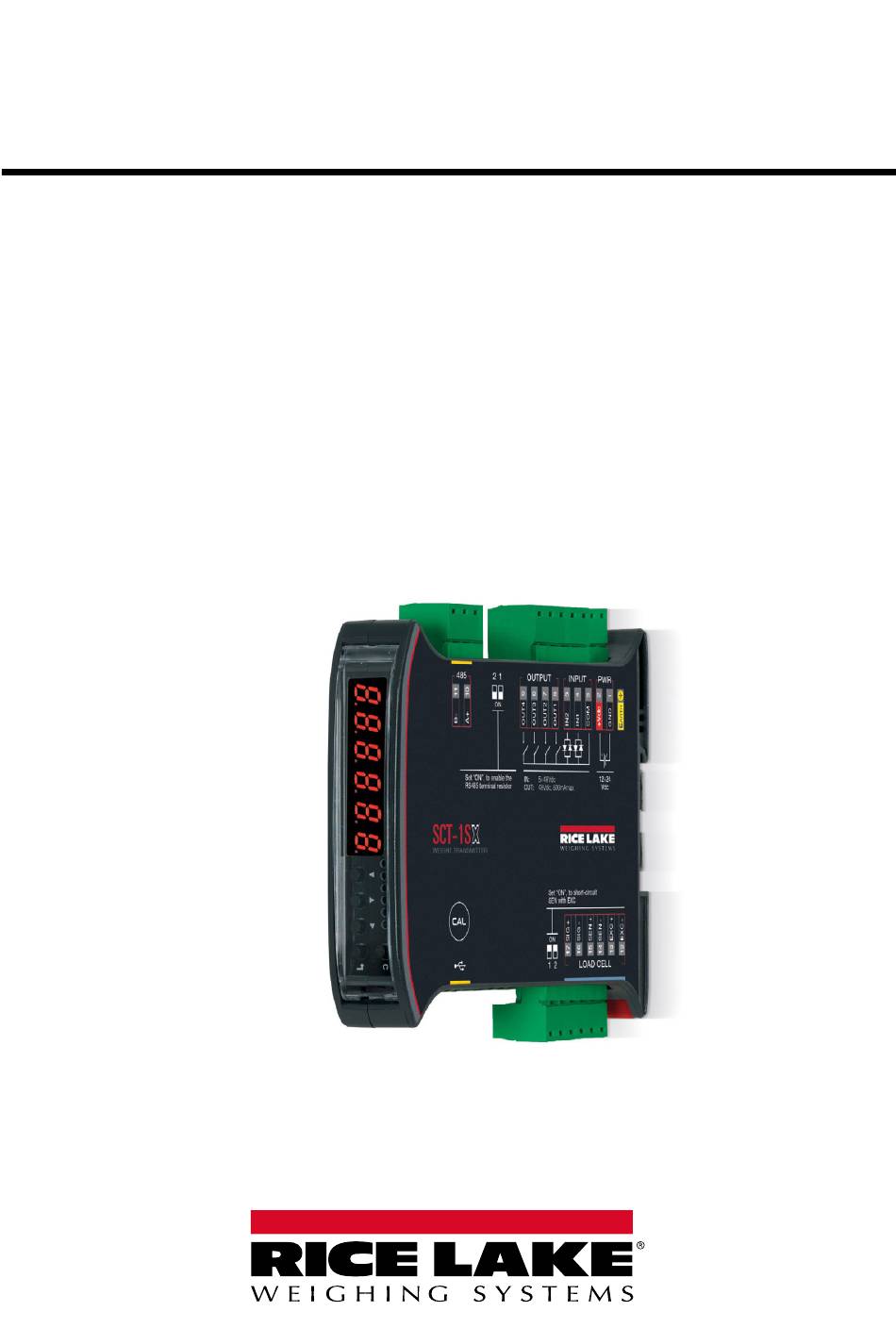

SCT-1SX Series
Firmware version 01.21.01
Fieldbus Protocol
January 4, 2024
PN 221628 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCT-1SX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rice Lake SCT-1SX Series

Summary of Contents for Rice Lake SCT-1SX Series

  • Page 1 SCT-1SX Series Firmware version 01.21.01 Fieldbus Protocol January 4, 2024 PN 221628 Rev A...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    Outputs Configuration "Pages 5101 - 5104" (0x13ED - 13F0) Analogue Output Configuration (1/3) "Page 5101" (0x13F6) Analogue Output Configuration (2/3) "Page 5102" (0x13F7) Analogue Output Configuration (3/3) "Page 5102" (0x13F8) Setpoint Values (1/2) "Page 6100" (0x17D4) © Rice Lake Weighing Systems • All Rights Reserved...
  • Page 4 Setpoint Values (2/2) "Page 6101" (0x17D5) Table 1 - Input Status Register Table 2 - Output Status Register Table 3 - Command Status Register Table 4 - Alibi Status Register Table 5 - Filter Table 7 - Input Functions Table 6 - Zero Tracking Table 8 - Output Functions Command Sending (Output Area) Available Commands...

  • Page 5: Connection

    It is recommended that you carefully follow the instructions for programming the weight transmitter; performing actions not indicated in this manual could compromise the functionality of the scale. Manuals are available from Rice Lake Weighing Systems at www.ricelake.com/manuals Warranty information is available at www.ricelake.com/warranties...

  • Page 6: Fieldbus And Data Format Configuration

    Fieldbus and Data Format Configuration The Fieldbus can be set through the configuration menu, following the procedure below: Access to the configuration menu: • Restart the device. 888888 • Press the key when is displayed. setup Scroll the menu with the key until is displayed and press fld.bus...
  • Page 7 This parameter changes the order of the data sent to and received from the PLC. If data is available but does not relate to data on the display, try changing this parameter. format uns.int Unsigned integer (read the sign from Input status register). float Float. siG.int Signed integer. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 8: Data Reading (Input Area)

    Data Reading (Input Area) • The available data are divided into pages. To display data from pages 5xxx you must first send the command 35 (0x23) "LETTURA DATI". • • Depending on the Fieldbus, the data area size can be up to 128 Bytes. •...
  • Page 9 5112 Analog output configuration(3/3) See page 30 (0x13F8) 6100 Setpoints values (1/2) See page 31 (0x17D4) 6101 Setpoints values (2/2) See page 32 (0x17D5) (*) page selected by default at power-up. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 10: Alibi Memory "Page 1000" (0X03E8)

    Alibi Memory "Page 1000" (0x03E8) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 11: Adc Value "Page 3000" (0X0Bb8)

    0 = uns. integer 01 = sig. integer Selected page - Data format 30008 (bit 0 to 13) (bit 14 to 15) 10 = float 30009 ADC points. 30010 30011 Not used. 30016 © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 12: Μv Value "Page 3001" (0X0Bb9)

    µV Value "Page 3001" (0x0BB9) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 13: Calibration 0 - Scale Parameters "Page 5000" (0X1388)

    30015 Range 2 30016 To set the data, write the same positions in the output area and use command 36 (0x24) "DATA WRITING AND STORAGE" with PARAMETER 1 equals to 5000. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 14: Calibration 1 - Calibration Points Weights "Page 5001" (0X1389)

    Calibration 1 - Calibration Points Weights "Page 5001" (0x1389) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 15: Calibration 2 - Calibration Points Adc "Page 5002" (0X138A)

    ADC value of the point 3. 30016 To set the data, write them to the same position in the output area and use command 36 (0x24) "DATA WRITING AND STORAGE" with PARAMETER 1 equal to 5002. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 16: Calibration 3 - Legal State "Page 5003" (0X138B)

    Calibration 3 - Legal State "Page 5003" (0x138B) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 17: Calibration 4 - Filter And Metrical Parameters (1/2) "Page 5004" (0X138C)

    Zero percentage (by key / command) To set the data, write the same positions in the output area and use command 36 (0x24) "DATA WRITING AND STORAGE" with PARAMETER 1 equals to 5004. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 18: Calibration 5 - Metrical Parameters (2/2) "Page 5005" (0X138D)

    Calibration 5 - Metrical Parameters (2/2) "Page 5005" (0x138D) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 19: Calibration 6 - Condensed Calibration "Page 5006" (0X138E)

    Division 2 = 0, Range 2 = 0, Number of calibration points = 1, Sample weight 2 = 0, Sample weight 3 = 0, ADC value of the point 2 = 0, ADC value of the point 3 = 0. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 20: Advanced Filters "Page 5007" (0X138F)

    Advanced Filters "Page 5007" (0x138F) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 21: Anti-Peak Filter "Page 5008" (0X139A)

    30014 Not used. 30016 To set the data, write the same positions in the output area and use command 36 (0x24) "DATA WRITING AND STORAGE" with PARAMETER 1 equals to 5008. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 22: Tare Type "Page 5010" (0X1392)

    Tare Type "Page 5010" (0x1392) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 23: Transmitter Sn And Firmware "Page 5011" (0X1393)

    (bit 14 to 15) 10 = float 30009 Hardware ID. B3: 0 30010 B2: release Firmware version. B1: sub-release 30011 B0: bug-release 30012 30013 Legal Hardware ID. 30014 Legal ID. 30015 Not used. 30016 © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 24: Unit Of Measure 2 ("Conver" Mode) "Page 5015" (0X1397)

    Unit of Measure 2 ("Conver" mode) "Page 5015" (0x1397) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 25: Fieldbus Configuration "Page 5030" (0X13A6)

    To set the data, write it in the same positions in the output area and use command 27 (0x1B) "SETUP WRITING" with PARAMETER 1 equal to 5030. To activate the new parameters reboot the instrument with the command 34 (0x22) "REBOOT DEVICE". © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 26: Profinet Name (Only For Sct-1Sx-Pronet) "Page 5031" (0X13A7)

    Profinet Name (only for SCT-1SX-PRONET) "Page 5031" (0x13A7) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 27: Inputs Configuration "Page 5100" (0X13Ec)

    To set the data, write the same positions in the output area and use command 56 (0x38) "SAVE PAGE" with PARAMETER 1 equals to 5100. To make the changes permanent, send the command 28 (0x1C) "SAVE SETUP". © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 28: Outputs Configuration "Pages 5101 - 5104" (0X13Ed - 13F0)

    Outputs Configuration "Pages 5101 - 5104" (0x13ED - 13F0) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 29: Analogue Output Configuration (1/3) "Page 5101" (0X13F6)

    To set the data, write the same positions in the output area and use command 56 (0x38) "SAVE PAGE" with PARAMETER 1 equals to 5110. To make the changes permanent, send the command 28 (0x1C) "SAVE SETUP". © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 30: Analogue Output Configuration (2/3) "Page 5102" (0X13F7)

    Analogue Output Configuration (2/3) "Page 5102" (0x13F7) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 31: Analogue Output Configuration (3/3) "Page 5102" (0X13F8)

    To set the data, write the same positions in the output area and use command 56 (0x38) "SAVE PAGE" with PARAMETER 1 equals to 5112. To make the changes permanent, send the command 28 (0x1C) "SAVE SETUP". © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 32: Setpoint Values (1/2) "Page 6100" (0X17D4)

    Setpoint Values (1/2) "Page 6100" (0x17D4) Modbus TCP Byte Big Endian Dato Little Endian Register 30001 Gross weight. 30002 30003 Net weight. 30004 30005 Input Status Register (see Table 1 page 33). 30006 Command Status Register (see Table 3 page 34). 30007 Output Status Register (see Table 2 page 33).

  • Page 33: Setpoint Values (2/2) "Page 6101" (0X17D5)

    ON value Setpoint 3. 30010 30011 OFF value Setpoint 3. 30012 30013 ON value Setpoint 4. 30014 30015 OFF value Setpoint 4. 30016 Integers or float data depending on the indicator configuration. © Rice Lake Weighing Systems • All Rights Reserved...
  • Page 34 Descriptive Charts Table 1 - Input Status Register (always Big Endian) Byte Description Bit meaning Modbus TCP Register Big Endian Not used. Endian. Big Endian Little Endian Not used. Input 2. Disabled Enabled Input 1. Disabled Enabled 30005 Gross weight = 0. Sì...
  • Page 35 Table 4 - Alibi Status Register Byte Description Bit meaning Modbus TCP Register Big Endian Not used. Tare type. Semiautomatic Manual Scale number. 1 to 4. 30015 Rewriting number. 0 to 255 rewritings. © Rice Lake Weighing Systems • All Rights Reserved...
  • Page 36 Table 5 - Filter Table 6 - Zero Tracking Index Filter Description Value Meaning 0 (0x00) 5 Hz filter 0 (0x00) Disabled. 1 (0x01) 10 Hz filter 1 (0x01) 1 / 4 Division. 2 (0x02) 20 Hz filter 2 (0x02) 1 / 2 Division.

  • Page 37: Command Sending (Output Area)

    Data Little Endian Register 0 (0x00) always zero. 40001 Command (see command list at page 38). 40002 Parameter 1. 40003 40004 Parameter 2. 40005 40006 Parameter 3. 40007 40008 Command counter. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 38: Available Commands

    Available Commands COMMAND DESCRIPTION PARAMETER 1 PARAMETER 2 Use this command before repeating the same command twice. 0 (0x00) No commands. 1 (0x01) Zero. 2 (0x02) Tare. 3 (0x03) Manual tare. Tare value. "Threshold" weight for output "Threshold" weight for output 10 (0x0A) Writing setpoint 1.

  • Page 39: Transmitter Configuration Via Fieldbus

    4 = 2,00375 Modbus TCP Byte Big Endian Data Little Endian Register 0 (0x00) always zero. 40001 66 (0x42) 40002 2000 (0x07D0) 40003 40004 199918 (0x00030CEE) 40005 40006 550 (0x0226) 40007 © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 40: Calibration

    Calibration Send command 35 (0x23) "DATA READING". Modify required parameters. Parameter Page Description Possible values 0 = kg 2 = t Unit of measure. 40009 1 = g 3 = lb Resolution. 1, 2, 5. 40010 Decimal places. 0, 1, 2, 3, 4, 5. 40011 5006 40012...

  • Page 41: Calibration Linearization

    Check that in Byte 30 and 31 the value is equal to 4 (Calibration OK). Send the command 36 (0x24) "DATA WRITING AND STORAGE" with PARAMETER 1 = 0 (0x00) to save the calibration. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 42: Filter / Metric Parameters 1

    Filter / Metric Parameters 1 Send the command 35 (0x23) "DATA READING". Modify required parameters. Parameter Page Description Possible values Filter index. From 0 to 12 (see table 5 page 34). 40009 40010 40011 Custom filter. For manufacturer’s use only. 40012 5004 (0x138C)

  • Page 43: Metric Parameters 2

    Write in Bytes 2 to 5 (PARAMETER 1) the value 5005 (0x138D) and send the command 36 (0x24) "DATA WRITING AND STORAGE". • Write Bytes 2 to 5 (PARAMETER 1) the value 0 (0x00) and increase the command counter value (Byte 15). © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 44: Digital Inputs

    Digital Inputs Write in Bytes 2 to 5 (PARAMETER 1) the value 5100 (0x13EC) and send the command 29 (0x1D) "CHANGE PAGE". Modify the desired parameters. Parameter Page Description Possible values Input 1 function. See chart below. 40009 5100 (0x13EC) Input 2 function.

  • Page 45: Digital Output 1

    To save the parameters: • Write in Bytes 2 to 5 (PARAMETER 1) the value 5101 (0x13ED) and send the command 56 (0x38) "SAVE PAGE". • Send the command 28 (0x1C) "SAVE SETUP". © Rice Lake Weighing Systems • All Rights Reserved...
  • Page 46 Digital Output 2 Write in Bytes 2 to 5 (PARAMETER 1) the value 5102 (0x13EE) and send the command 29 (0x1D) "CHANGE PAGE". Modify required parameters. Parameter Page Description Possible values Output function. See chart below. 40009 0 (0x00) = Normally open. Contact type (NO/NC).

  • Page 47: Profinet Name

    2 (0x32) In the example: ricelake-0123456 3 (0x33) 4 (0x34) 5 (0x35) 6 (0x36) Save the parameters: • Send the command 28 (0x1C) "SAVE SETUP". • Reboot the transmitter (command 34 (0x22)). © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 48: Scale Zeroing Via Fieldbus

    Scale Zeroing via Fieldbus • Send the command 1 (0x01) "ZERO". Note: This command does not affect calibration. Once the device is turned off, the performed zeroing gets lost. Mechanical Tare Zeroing via Fieldbus • Send command 35 (0x23) "DATA READING". •...

  • Page 49: Setup Backup And Restore Via Fieldbus

    Copy in Bytes 16 to 31 of the Output Area previously saved data in page 1 (0x01). Send the command 27 (0x1B) "SETUP WRITING" inserting in PARAMETER 1 the value 1 (0x01). Repeat this procedure for all the other pages. © Rice Lake Weighing Systems • All Rights Reserved...

  • Page 50: Diagnostic Messages

    Diagnostic Messages OPERATING MESSAGES Message Description f.b.Conn Fieldbus in operation. f.b.ok Communication with active network. f.bus.in Module initialisation. ERROR MESSAGES Message Description f.bus.er Fielbus not in operation. f.b.err Error status, see error codes. + code Code Decription 1000 Module fatal error. Restart the device. 1001 fld.bus Selected protocol differs from the one managed by the module.
