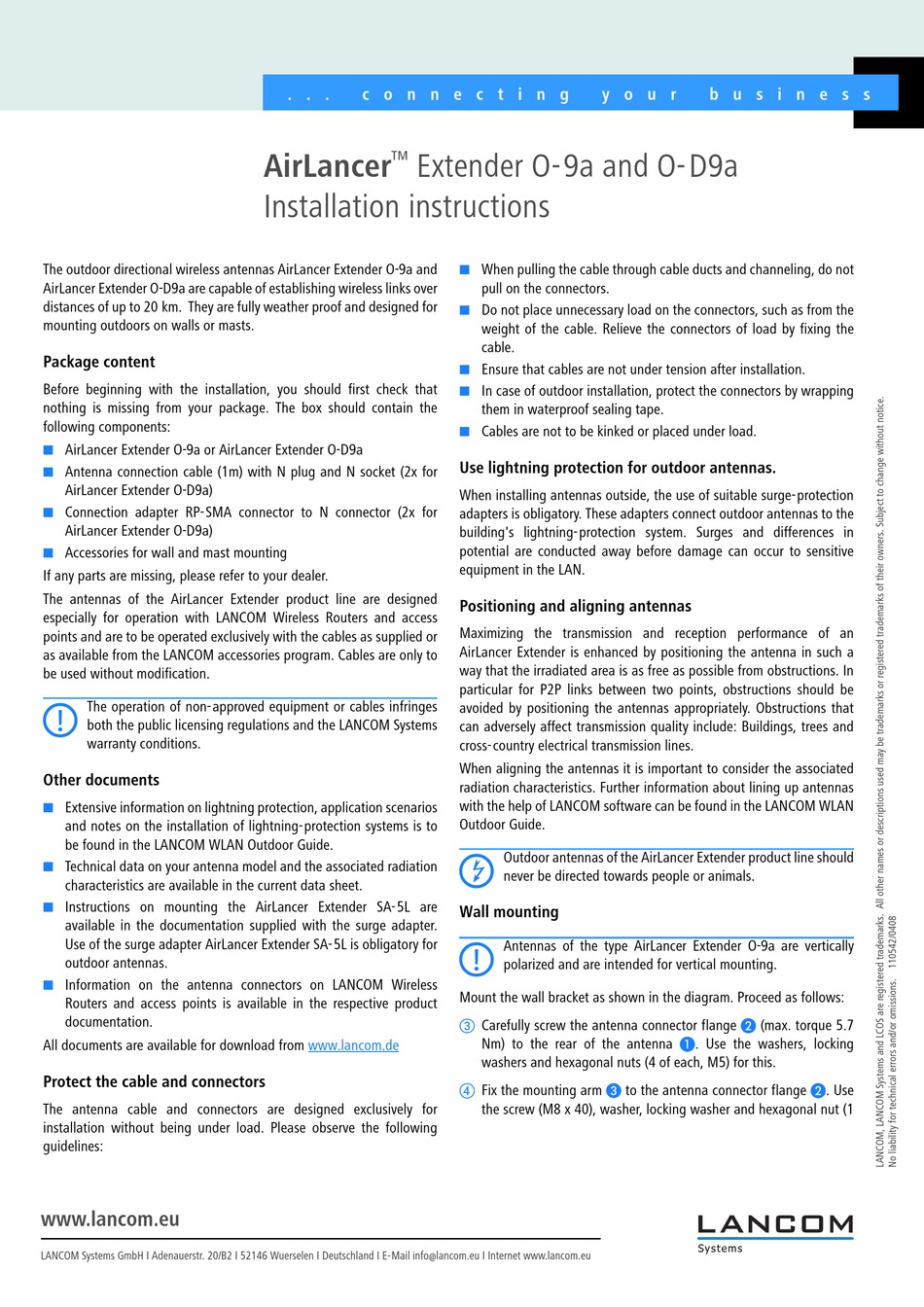

The outdoor directional wireless antennas AirLancer Extender O-9a and
AirLancer Extender O-D9a are capable of establishing wireless links over
distances of up to 20 km. They are fully weather proof and designed for
mounting outdoors on walls or masts.

Package content

Before beginning with the installation, you should first check that
nothing is missing from your package. The box should contain the
following components:
AirLancer Extender O-9a or AirLancer Extender O-D9a
Antenna connection cable (1m) with N plug and N socket (2x for
AirLancer Extender O-D9a)
Connection adapter RP-SMA connector to N connector (2x for
AirLancer Extender O-D9a)
Accessories for wall and mast mounting
If any parts are missing, please refer to your dealer.
The antennas of the AirLancer Extender product line are designed
especially for operation with LANCOM Wireless Routers and access
points and are to be operated exclusively with the cables as supplied or
as available from the LANCOM accessories program. Cables are only to
be used without modification.
The operation of non-approved equipment or cables infringes

both the public licensing regulations and the LANCOM Systems
warranty conditions.
Other documents
Extensive information on lightning protection, application scenarios
and notes on the installation of lightning-protection systems is to
be found in the LANCOM WLAN Outdoor Guide.
Technical data on your antenna model and the associated radiation
characteristics are available in the current data sheet.
Instructions on mounting the AirLancer Extender SA-5L are
available in the documentation supplied with the surge adapter.
Use of the surge adapter AirLancer Extender SA-5L is obligatory for
outdoor antennas.
Information on the antenna connectors on LANCOM Wireless
Routers and access points is available in the respective product
documentation.
All documents are available for download from

Protect the cable and connectors

The antenna cable and connectors are designed exclusively for
installation without being under load. Please observe the following
guidelines:
www.lancom.eu
LANCOM Systems GmbH I Adenauerstr. 20/B2 I 52146 Wuerselen I Deutschland I E-Mail info@lancom.eu I Internet www.lancom.eu
. . . c o n n e c t i n g
™
AirLancer Extender O-9a and O-D9a
Installation instructions
www.lancom.de
y o u r
When pulling the cable through cable ducts and channeling, do not
pull on the connectors.
Do not place unnecessary load on the connectors, such as from the
weight of the cable. Relieve the connectors of load by fixing the
cable.
Ensure that cables are not under tension after installation.
In case of outdoor installation, protect the connectors by wrapping
them in waterproof sealing tape.
Cables are not to be kinked or placed under load.

Use lightning protection for outdoor antennas.

When installing antennas outside, the use of suitable surge-protection
adapters is obligatory. These adapters connect outdoor antennas to the
building's lightning-protection system. Surges and differences in
potential are conducted away before damage can occur to sensitive
equipment in the LAN.

Positioning and aligning antennas

Maximizing the transmission and reception performance of an
AirLancer Extender is enhanced by positioning the antenna in such a
way that the irradiated area is as free as possible from obstructions. In
particular for P2P links between two points, obstructions should be
avoided by positioning the antennas appropriately. Obstructions that
can adversely affect transmission quality include: Buildings, trees and
cross-country electrical transmission lines.
When aligning the antennas it is important to consider the associated
radiation characteristics. Further information about lining up antennas
with the help of LANCOM software can be found in the LANCOM WLAN
Outdoor Guide.
Outdoor antennas of the AirLancer Extender product line should

never be directed towards people or animals.

Wall mounting

Antennas of the type AirLancer Extender O-9a are vertically

polarized and are intended for vertical mounting.
Mount the wall bracket as shown in the diagram. Proceed as follows:
Carefully screw the antenna connector flange
Nm) to the rear of the antenna ³. Use the washers, locking
washers and hexagonal nuts (4 of each, M5) for this.
» to the antenna connector flange ·. Use
Fix the mounting arm
the screw (M8 x 40), washer, locking washer and hexagonal nut (1
b u s i n e s s
·
(max. torque 5.7
