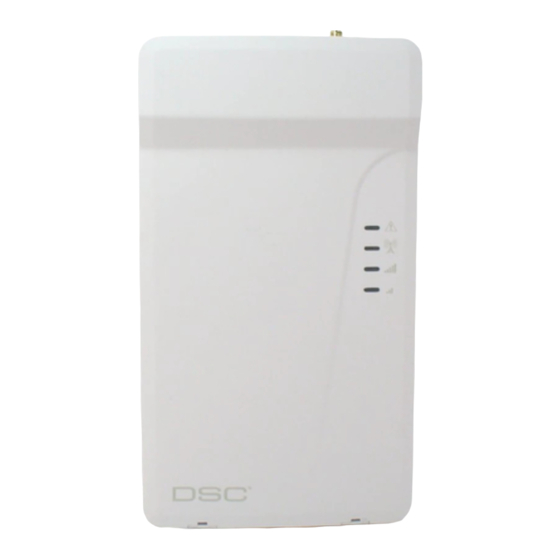

LE4000
LTE Wireless Alarm Communicator
Installation Guide
V5.0
Warning: This manual contains information on limitations regarding product use and function and information on the lim-
itations as to liability of the manufacturer. The entire manual should be carefully read.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSC LE4000

Summary of Contents for DSC LE4000

  • Page 1 LE4000 LTE Wireless Alarm Communicator Installation Guide V5.0 Warning: This manual contains information on limitations regarding product use and function and information on the lim- itations as to liability of the manufacturer. The entire manual should be carefully read.

  • Page 2: Safety Information

    The equipment is fixed, wall-mounted and shall be installed in of an officer of DSC. You may not remove any proprietary notices, marks or labels from the Soft- ware Product. You shall institute reasonable measures to ensure compliance with the terms and the position specified in these instructions.

  • Page 3: Technical Specifications

    Introduction The LE4000 is a cellular communicator that sends alarm system information to a Sur-Gard System I-IP, II, III, IV or 5 receiver through an LTE or 3G wireless network. This cellular communicator can be used with UL/ULC Listed compatible control units, as indicated in the manufacturer's installation instructions.

  • Page 4: Environmental Specifications

    Cellular Bands B2, B5. Bands B2, B4, B5, B12, B13 (see See page 4) Antenna Gain 2.0 dBi Environmental Specifications Operating temperature: 0°C-49°C (32°F-120°F) Humidity: 93% RH Maximum (non-condensing) Mechanical Specifications Dimensions (mm): 125mm (W) x 220mm (H) x 31mm (D) Dimensions (inches): 4.9”...
  • Page 5 LE4000 is registered to the cellular network. If the signal strength is too low (bottom signal LED off or flashing), the LE4000 will move to Step 3 and scan for carriers with suf- ficient signal strength and attach to the carrier. If the LE4000 is connected to a carrier with sufficient signal strength (minimum of bottom signal strength LED on solid), it will move to Step 4.
  • Page 6 LE4000 Wiring Diagram...
  • Page 7 Incidence of Harm If this equipment LE4000 causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the Telephone Company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

  • Page 8: Warranty

    In addition to the items which void the Warranty, the following items shall not be covered by War- ranty: (i) freight cost to the repair centre; (ii) products which are not identified with DSC's product label and lot number or serial number; (iii) products disassembled or repaired in such a manner as to adversely affect performance or prevent adequate inspection or testing to verify any warranty claim.
