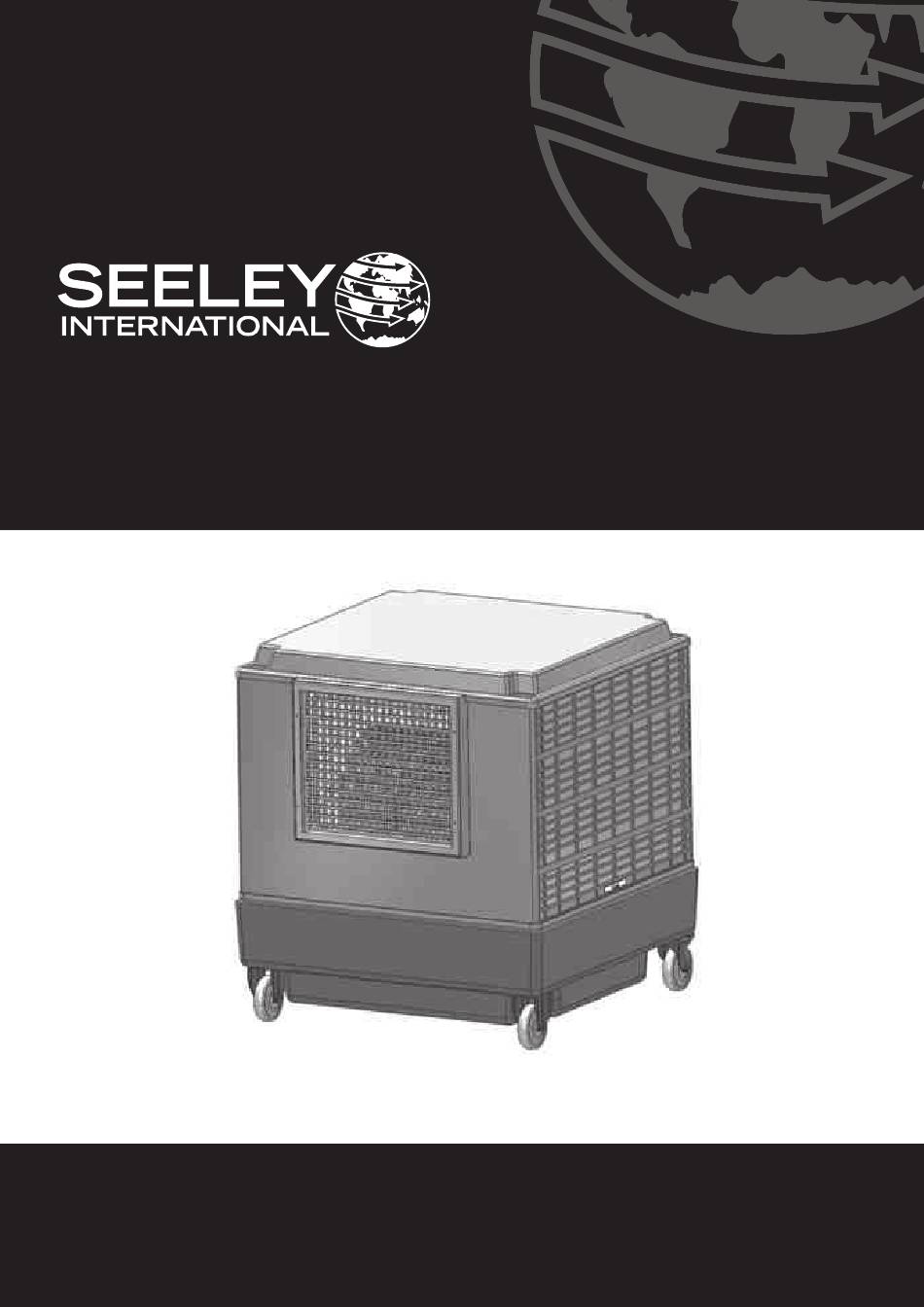

- Page 1 CONVERSION MANUAL MobileMAX Assembly Instructions For Kit 075594 (MobileMAX English) Original English Instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY Warnings Installer and Maintenance Contractors – Risk Assessment Some Points to Consider Other Important Requirements KIT CONTENTS MobileMAX Conversion Kit CONVERSION INSTRUCTIONS Packing List Additional Items Required to Assemble the Kit Modifying the Cooler Removal Instructions Modifications to the Cooler Service Cord Fitment Assembly of Tank Kit Components... -
Page 3: Safety
SAFETY WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO OTHER PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. 2. Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. -
Page 4: Kit Contents
KIT CONTENTS MOBILEMAX CONVERSION KIT Contents Item Part No. Description 638607 Mobile Tank 638591 Float for Mobile Tank Pump Not Shown 638737 Grille Kit 628950 Pump Bracket 095806 Tornado Pump 814841 Pump Hose 19mm (1.5m length) MIS001 Pump Elbow 855035 Castor Wheel fixed (fitted to tank) 855042 Castor Wheel swivel (fitted to tank) -
Page 5: Conversion Instructions
CONVERSION INSTRUCTIONS PACKING LIST MODIFYING THE COOLER This kit contains the following components: The cooler requires some modification prior to fitting to the MobileMAX Tank. • a 100 litre tank with wheels fitted, Some components will be removed and set aside for •... -
Page 6: Modifications To The Cooler
CONVERSION INSTRUCTIONS Remove the section of hose from the pump to the 4 MODIFICATIONS TO THE COOLER way distributor and discard. Using a marker pen, trace around the cutout location Unscrew the screws securing the pump to the tank and and place a dot in the 5mm (3/16”) holes located around set the screws aside. -
Page 7: Service Cord Fitment
CONVERSION INSTRUCTIONS SERVICE CORD FITMENT ASSEMBLY OF TANK KIT COMPONENTS The service cord requires a hole for entry into the cooler. The float valve, removed earlier, is to be refitted to the MobileMAX tank. ILL2753-A Using approved tape/sealing compound on thread of brass nipple supplied in the MobileMAX Tank kit, fit the float valve, ensuring correct orientation of “O”rings and washer. -
Page 8: Assembly Of Cooler To Tank
CONVERSION INSTRUCTIONS ASSEMBLY OF COOLER TO TANK Attach the pump to the mount bracket on the floating platform using 1 x 20mm philips head screw. The pump Lift the cooler onto the MobileMAX tank in the correct outlet is facing the air outlet panel. orientation with the rectangular cutout opening in the cooler aligned with the moulded opening in the tank and with the service cord located in the recess at the edge of... -
Page 9: Front Grille Assembly
CONVERSION INSTRUCTIONS FRONT GRILLE ASSEMBLY Remove the grille from the grille frame assembly and set aside. Position grille frame over the air outlet, using grille The front grille assembly is made up of a grille and a frame as guide, drill 3mm (1/8”) holes through cooler grille frame. -
Page 10: Mounting The Controls
CONVERSION INSTRUCTIONS MOUNTING THE CONTROLS Fasten the cable gland supplied in the MobileMAX Tank kit into the 20mm (3/4”) hole drilled into the panel. (Note The MagIQtouch Switch Plate control that came with the orientation of the gland in the diagram below). cooler needs to be mounted to the upper right of the grille. -
Page 11: Wiring The Mains Power
CONVERSION INSTRUCTIONS WIRING THE MAINS POWER Ensure the Earth (Ground), Active (Hot) and Neutral (Common) conductors from both cables are aligned A small junction box and terminal strip is provided in the correctly onto the terminal strip. MobileMAX Tank kit to make the connection between the external 6.0m mains lead and the cable with the IEC plug that plugs into the CPMD control box. -
Page 12: Commissioning The Cooler
CONVERSION INSTRUCTIONS COMMISSIONING THE COOLER Ensure the switch screw is fully inserted and switch the FAULT CODES CPMD Control Box isolation switch to the “ON” position. The following information allows quick diagnosis at start up - The “Tricolour LED” on the CPMD (under the rubber splash cover) acts as a general diagnostic indicator, and will function as follows: Green double flash every 2 seconds indicates the CPMD... -
Page 13: Operating Adjustments
E - Locking cap securing screw system checks including airflow, etc. C - Adjustable Sheave 3. Measure the motor current with the Seeley clamp When an adjustment is made, replace the locking cap meter (P/No: 118635) or suitable equivalent. Attach (secure with screw) and the belt then check the amps. -
Page 14: Setting Water Level
COMMISSIONING THE COOLER SETTING WATER LEVEL CHECKING WATER LEVEL - SIGHT GLASS Direct connection to Water Supply 100L Tank Water Supply Connect a hose to the inlet fitting. Turn on the water The cooler tank has a “sight glass” water level gauge supply. -
Page 15: Drilling Template Information
DRILLING TEMPLATE INFORMATION... - Page 16 For access to Technical/Installation/Service Information register online seeleyinternational.com/service Spare Parts Information To identify and order spare parts for Seeley International products online go to: seeleyinternational.com/get-support/spare-parts It is the policy of Seeley International to introduce continuous product improvement. Accordingly, specifications are subject to change without notice.
