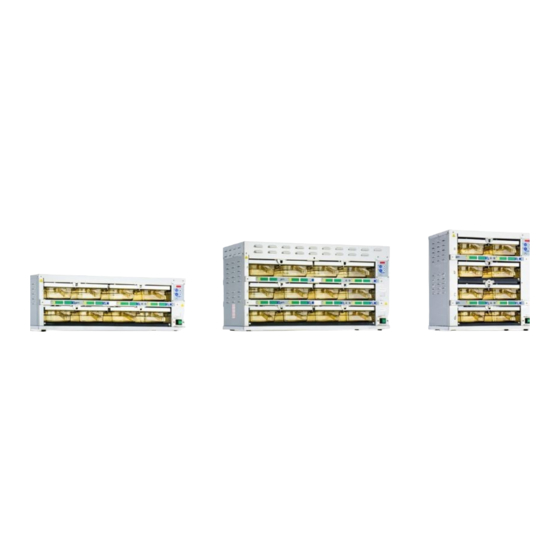

Prince Castle EHB Series Operation Manual

Operation
Manual
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or workmanship
for a period of 2 years from date of original installation, not to exceed 30 months
from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship will be
replaced or repaired (at the option of Prince Castle LLC) without cost to the cus-
tomer for parts and labor. This warranty covers on location service (i.e. trip charges
and or mileage). Travel mileage is limited to 100 miles (200 Kilometers) round trip
(one trip warranty) from an authorized service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor to be performed during regular work hours. Overtime premium
(the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse
(e.g., dropping, tampering or altering parts, equipment damaged in shipment,
by fire, flood or an act of nature) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on equipment
nameplates are not covered by this warranty. Conversion to correct voltage is the
customer's responsibility.
• This equipment must be serviced by Prince Castle Authorized Service Agency
or a Prince Castle Service Technician during the warranty period.
540-539-EN
ATTENTION:
Read the instructions before using the machine.
355 EAST KEHOE BLVD. ~ CAROL STREAM, IL, 60188, USA
PHONE: 630-462-8800 ~ TOLL FREE: 1-800-PCASTLE
FAX 630-462-1460 ~ WWW.PRINCECASTLE.COM
Dedicated Holding Bin

TABLE OF CONTENTS

Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Model Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Information . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .2
Configurations . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .3
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Setting Product Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setting the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Calibrating the Heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Changing the Hold and Cook More Times . . . . . . . . . . . . . . . . . . . . 9
Changing Product Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Changing Temperature Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Adjusting Alarm Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Choosing a Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Default Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Zone Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..17
1 Printed in USA 12/16 © 2016
EHBTH Series
