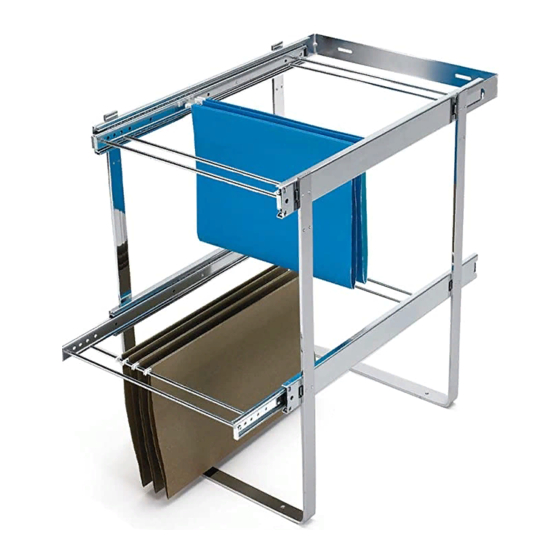

TWO-TIER FILE DRAWER SYSTEM
TOOLS REQUIRED:
ESTIMATED ASSEMBLY TIME:
20 MIN
CARE AND MAINTENANCE:
Clean with a damp cloth
and wipe parts dry. Keep all
chemicals away from gas
spring piston rod.
WATCH TUTORIALS OF OUR
PRODUCTS BEING INSTALLED
WWW.REV-A-SHELF.COM/VIDEOS
Parts List
No.
Description
A
File Hangers with Slides
B
U-Shaped Support Brackets
C
Adjustable Rear Mounting Bracket
D
3/4" Wood Screws
E
Machine Screws
F
1/2" Wood Screws
B.
A.
D.
E.
F.
INSTALLATION INSTRUCTIONS: TWO-TIER FILE DRAWER SYSTEM
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
Qty
2
2
1
4
16
3
C.
I-5WBFFKD-0119
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rev-A-Shelf TWO-TIER FILE DRAWER SYSTEM
Summary of Contents for Rev-A-Shelf TWO-TIER FILE DRAWER SYSTEM
- Page 1 Parts List Description File Hangers with Slides U-Shaped Support Brackets Adjustable Rear Mounting Bracket 3/4” Wood Screws Machine Screws 1/2” Wood Screws WATCH TUTORIALS OF OUR PRODUCTS BEING INSTALLED WWW.REV-A-SHELF.COM/VIDEOS INSTALLATION INSTRUCTIONS: TWO-TIER FILE DRAWER SYSTEM I-5WBFFKD-0119...
- Page 2 (slotted hole). STEP 3 Securely attach lower slides to REAR U-shaped support brackets with (4) FIG. 3 machine screws (See Fig. 3). DO NOT attach lower slides to FRONT U-shaped bracket at this time! Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 3 STEP 7 FIG. Attach U-shaped support brackets to the cabinet floor with the mounting holes 1-13/16” back from outside front of cabinet as shown with (4) 3/4” wood screws (See Fig. 7). 1-13/16” INSTALLATION INSTRUCTIONS: TWO-TIER FILE DRAWER SYSTEM...
- Page 4 Securely tighten rear screws of upper slides to U-shaped support brackets (See Fig. 9). STEP 10 FIG. Carefully re-engage wire file frames into slides (See Fig. 10). 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 5 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 INSTRUCCIONES DE INSTALACIÓN / INSTRUCTIONS D’INSTALLATION SISTEMA DE CAJONES PARA ARCHIVOS DE DOS NIVELES SYSTÈME DE TIROIRS À DEUX NIVEAUX Herramientas requeridas: Outils Requis: Tiempo estimado de ensamblado: Durée de l’installation:...
- Page 6 à l’ARRIÈRE avec quatre (4) vis à métaux (voir l’image 3). Ne fixez PAS les coulisses inférieures au support de fixation en forme d’U qui sont à l’AVANT à cette étape-ci! Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 7 Fixez les supports de fixation en forme d’U au sol de l’armoire à l’aide des trous de montage à 1-13/16 po du devant de l’armoire, comme illustré, avant quatre (4) vis à bois de 3/4 po (voir l’image 7). 1-13/16” INSTALLATION INSTRUCTIONS: TWO-TIER FILE DRAWER SYSTEM...
- Page 8 (Ver Fig. 10). Déposez de nouveau avec soin les cadres métalliques de suspension de dossiers sur les coulisses (voir l’image 10). 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 Customer Service: 800-626-1126 | rev-a-shelf.com...
