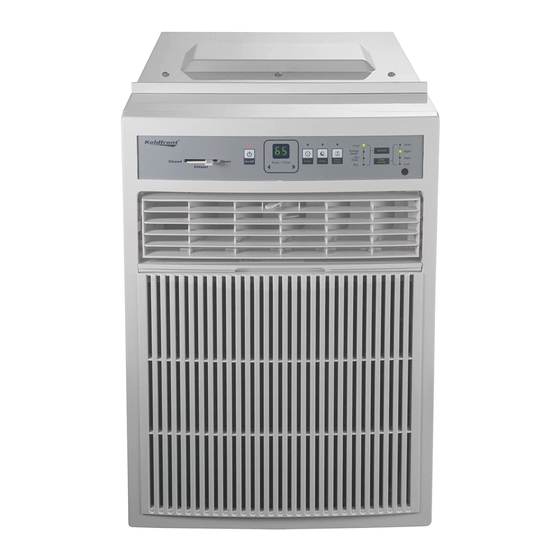

Koldfront CAC8000W Owner's Manual

Casement window air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

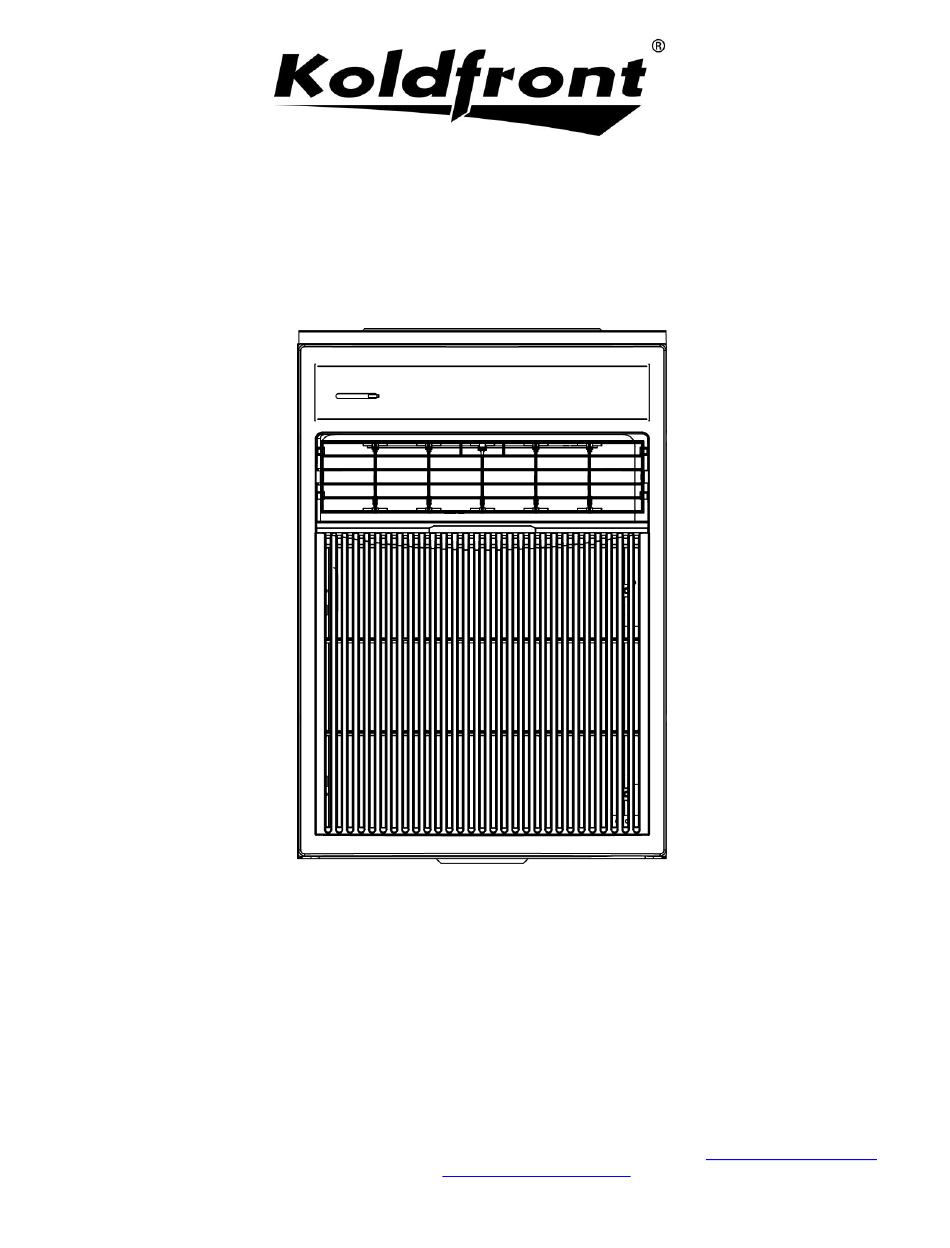

Casement Window Air
Conditioner
CAC8000W
Owner's Manual
For more information on other great EdgeStar and Koldront products on the web, go to
https://www.edgestar.com
To use the EdgeStar self-diagnostic tool, go to
https://support.edgestar.com
V2.2-03012018

Advertisement

Table of Contents
loading

Related Manuals for Koldfront CAC8000W

Summary of Contents for Koldfront CAC8000W

  • Page 1 Casement Window Air Conditioner CAC8000W Owner’s Manual For more information on other great EdgeStar and Koldront products on the web, go to https://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.2-03012018...

  • Page 2: Important Safety Information

    Important Safety Information Warning: The water produced by the window AC is not potable or suitable for drinking. Do not drink the water drained from the unit as it contains contaminates and could make you sick. Improper handling can cause serious damage to the appliance and/or to the user. Please read the following safety information Electrical Safety ...
  • Page 3 Operation of Safety Plug Note: Electrical products should not be disposed of with household waste. Please contact your local recycling center for more information on how to recycle electronic waste. Your window air conditioner is supplied with a Leakage-Current Detection and Interruption (LCDI) safety plug.

  • Page 4: Table Of Contents

    Table of Contents IMPORTANT SAFETY INFORMATION ................................I TABLE OF CONTENTS ....................................III INTRODUCTION ......................................1 PARTS IDENTIFICATION ..................................... 2 Side View ....................................2 Front View ....................................2 PREPARATIONS FOR INSTALLATION ................................3 WINDOW INSTALLATION INSTRUCTIONS ..............................4 Preparing the Unit for Installation ............................4 Installing Air Conditioner Into a Slider Window .........................

  • Page 5: Introduction

    Introduction Thank you for purchasing this Koldfront by EdgeStar casement window air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship.

  • Page 6: Parts Identification

    Parts Identification CAUTION: Make sure the drain plug is firmly installed before using the unit to prevent leaking. Side View Front View...

  • Page 7: Preparations For Installation

    Preparations for Installation NOTE: You may need to contact your electrician if your room’s circuit is not able to power your unit. NOTE: To avoid risk of injury and/or product/property damage, please take the following precautions: - Two or more people are needed to properly handle and install. - Use proper lifting and carrying techniques.

  • Page 8: Window Installation Instructions

    Window Installation Instructions NOTE:  These instructions are for installation in a standard slider or casement window only.  If installing the unit into a casement window, open the window to the maximum amount to allow for clearance of the cabinet. ...
  • Page 9 3. Center the window platform on the newly drawn line with the inner (second) tab on the bottom of the platform pressed against the inside edge of the window track. Mark two holes on the window track or sill using the two holes on the window platform on either side of the platform tab.
  • Page 10 8. Use a level to make sure that the platform is flat. Adjust the screws and use leveling shims if necessary. Attach Window Panel Frame and Side Panels 1. Measure the height of the window opening from the top of the window platform. Subtract 20 5/8”...
  • Page 11 5. Cut the side channel sealing strip into two equal lengths. Remove the protective backing and apply it to the back of the side channel starting just below the window panel frame. Remove any excess length so that the seal is even with the bottom of the side channel. A.

  • Page 12: Installing Air Conditioner Into A Slider Window

    Installing Air Conditioner Into a Slider Window NOTE: When choosing your window make sure the power supply cord is within 6 feet of a grounded 3-prong outlet. Follow the steps listed below to install the air conditioner into the window: 1.

  • Page 13: Installing Air Conditioner Into A Casement Window

    4. Place the sliding window sash sealing strip between the far vertical edge of the inner window and the glass of the outer window. 5. Install the window locking bracket to lock the inner window to the base of the outer window. ...

  • Page 14: Control Panel Operations

    2. Secure the window panel frame to the top window jamb:  Drill two 9/64” diameter pilot holes in the top window jamb that are in line with the partially plugged holes in the window panel frame.  Secure the window panel frame with two #8-32x3/4” self-threading screws. ...
  • Page 15 To Adjust Fan Speeds: To select the speed of the fan, press the Fan Speed button which cycles through four (4) steps: Auto, Low, Medium, and High. Each time the button is pressed the fan speed mode is shifted to the next speed option.
  • Page 16 To Operate in Fan Only:  Use this function only when cooling is not desired, such as for room circulation or to exhaust air (remember to open the vent). You can choose any speed you prefer, though the “Auto” fan speed is not an available option. ...

  • Page 17: Remote Operations

    Remote Operations The included remote is a universal remote control. Some functions may be found on the remote that this model of air conditioner does not have. If an unavailable function is selected the unit will continue operating under its current running status. Use the remote control to change modes, fan speed, timer, and temperature settings as well as to set sleep mode.

  • Page 18: Installing The Batteries

    Installing the Batteries 1. Remove the cover on the back of the remote control. 2. Insert the batteries with the (+) and (-) ends pointing in the direction indicated. 3. Install the cover on the back of the remote control. Caution: Use only AAA batteries.

  • Page 19: Maintenance

    Maintenance Clean the air conditioner and filters regularly to maximize performance and efficiency, and prolong the unit’s life. Be sure to always unplug the air conditioner from the power outlet before cleaning. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and potentially cause an accumulation of frost on the cooling coils.

  • Page 20: Cabinet Cleaning

    Cabinet Cleaning  Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild dishwashing detergent. Rinse thoroughly and wipe dry. ...

  • Page 21: Energy Saving Guide

    Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your window air conditioner:  Do not cover the air outlet (exhaust) while in use.  Use the timer to operate the unit before it is needed. For example, set the timer to turn on the unit in cooling mode for three (3) or more hours to cool the room before you arrive.

  • Page 22: Troubleshooting

    Troubleshooting Follow the troubleshooting guide below to resolve common issues. Problem Possible Cause Solution Insert plug firmly into proper wall Wall plug is disconnected. outlet. House fuse blown or Replace fuse with time delay type or circuit breaker tripped. reset circuit breaker. Press the RESET button on the power Power cord is tripped.
  • Page 23 Problem Possible Cause Solution Dirty air filter- air Clean air filter. Refer to Installation restricted. and Cleaning section. Temperature is set too Set to a Lower temperature. High. The directional louvers on Position louvers for better air the front are positioned Air conditioner distribution.

  • Page 24: Specifications

    Specifications Description of product Casement Window Air Conditioner Model CAC8000W Voltage/Frequency 115V / 60Hz Cooling Capacity (BTUs) 8000 Current 6.5A Color White Refrigerant R410A: 18.34 oz. Timer 24 Hour 14 1/2” x 23 1/2” x 20 7/8” Dimensions W x D x H Weight 75 lbs.

  • Page 25: Edgestar Limited Warranty

    Edgestar Limited Warranty Full Two-Year Parts and Labor This product is warrantied by EdgeStar and is subject to any conditions set forth as follows: WHAT IS COVERED: For a period of TWO (2) YEARS from the date of original retail purchase, EdgeStar will repair or replace any part free of charge, including labor, that fails due to a defect in materials or workmanship.
