RADEMACHER DuoFern 3500 30 64 Installation And Commissioning Manual
Radiator actuator
Source: rademacher.de
Related Manuals for RADEMACHER DuoFern 3500 30 64
Summary of Contents for RADEMACHER DuoFern 3500 30 64

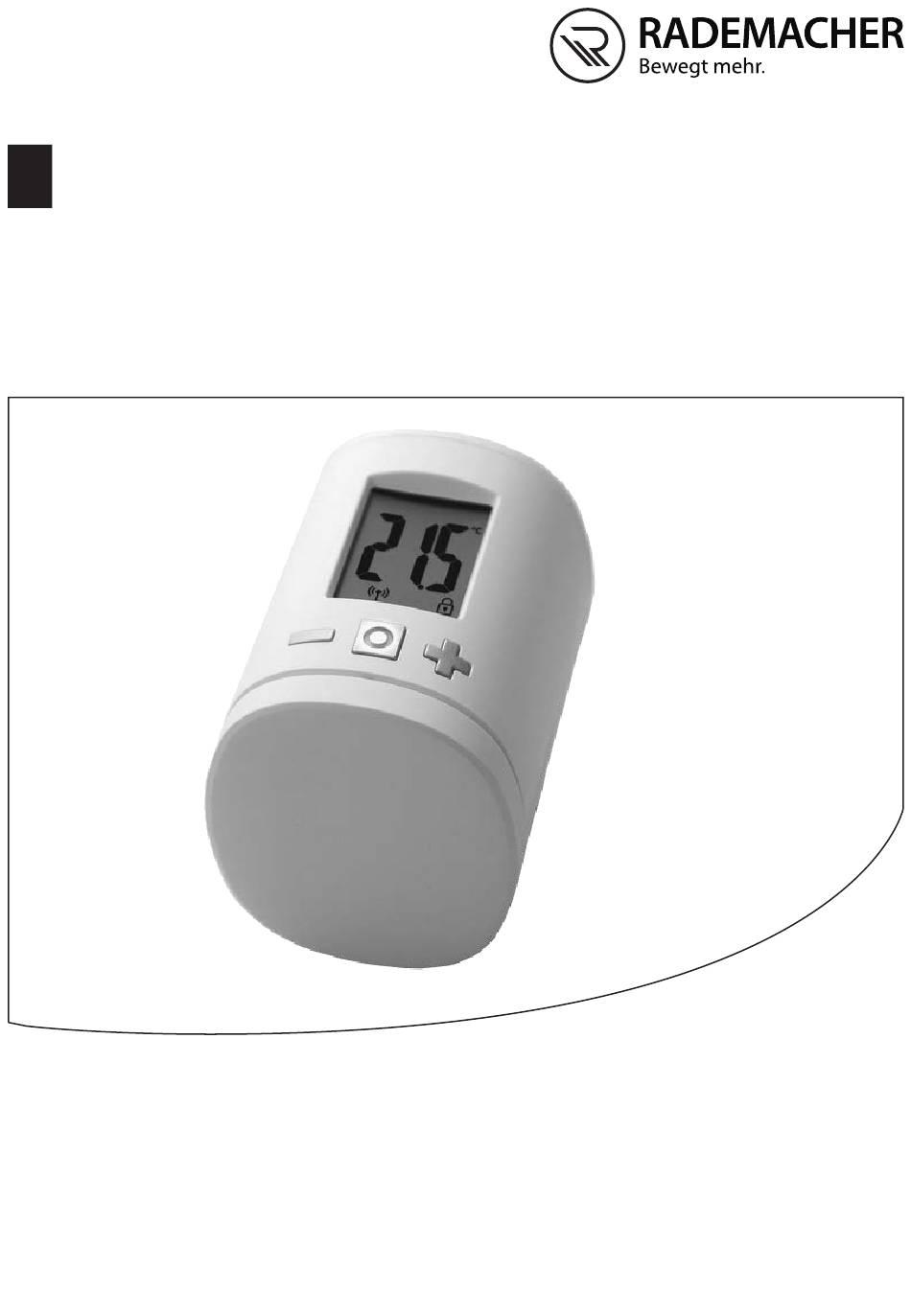

- Page 1 DuoFern Radiator Actuator Translation of the original Installation and Commissioning Manual Item no. 3500 30 64 VBD 678-2 (05.18)
-
Page 2: Table Of Contents
Contents This manual..............4 Hazard symbols .............. 5 Symbols and depictions used ........5 2.2 Glossary - definition ............5 Included in delivery ............6 General view ..............6 Display icons ..............7 Product description ............7 6. Technical specifications ..........8 Safety instructions ............9 Intended use ..............9 Initial commissioning ........... - Page 3 Contents 11. Deleting all settings and resetting to the factory settings ............. 23 12. Error messages and troubleshooting ......24 13. Cleaning / maintenance..........25 14. Simplified EU declaration of conformity ....25 15. Information about environmental protection ..... 26 16. Warranty terms and conditions ........27...
-
Page 4: This Manual
1. This manual..describes how to install, commission and operate the DuoFern Radiator Actuator. How to use this manual ◆ Before you begin, please read this manual through com- pletely and follow all the safety instructions. ◆ Please also read the instruction manuals for the logged- on DuoFern devices and the respective connected appliance. -
Page 5: Hazard Symbols
2.1 Symbols and depictions used Depiction Description Further useful information Please read the respective manual. 2.2 Glossary - definition DuoFern ◆ RADEMACHER radio system for controlling compatible products. HomePilot ® ◆ The HomePilot is a central controller unit for ® RADEMACHER radio products. -
Page 6: Included In Delivery
3. Included in delivery 1 x radiator actuator 1 x cover 3 x Danfoss adapter (RA / RAV / RAVL) 1 x screw with nut 2 x AA batteries 1.5 V / LR6 1 x installation and commissioning manual After unpacking please check and compare.. the contents of the package with those specified above. -
Page 7: Display Icons
The operation and setting of the DuoFern Radiator Actuator can be performed on site directly on the device, via a smart- phone app or with a computer. The RADEMACHER HomePilot is also required as a central ® controller (not included in delivery) for control via an app or... -
Page 8: Technical Specifications
6. Technical specifications General information 2 x 1.5 V (DC), AA, Supply voltage: alkaline approx. 2 years (with three switching times Battery life: daily and a set trans- mission interval of 15 minutes) Mechanical loading capacity: 70 N Linear stroke: 2 - 3 mm Connection thread: M 30 x 1.5 mm Permissible ambient tempera-... -
Page 9: Safety Instructions
7. Safety instructions The use of defective devices and improper use can lead to property damage. ◆ Never use defective or damaged devices. ◆ Check the DuoFern Radiator Actuator for damage. ◆ Consult our customer service department in the event that you discover damage, see page 28. -
Page 10: Initial Commissioning
8. Initial commissioning 8.1 Insert the enclosed batteries The use of rechargeable batteries or incorrect batteries can damage the DuoFern Radiator Actuator. ◆ Only use leak-proof 1.5 V AA batteries (LR6). ◆ If a battery has leaked, we recommend replacing the DuoFern Radiator Actuator with a new device. -
Page 11: Logging On To The Homepilot
8.2 Logging on to the HomePilot ® If no login is to take place, continue with 8.3. Switch the HomePilot to registering ® mode. Login takes place automatically. The logged-on HomePilot appears ® as “1” on the display after a successful login. -
Page 12: Mounting On The Radiator Valve
8.4 Mounting on the radiator valve Attach the DuoFern Radiator Actuator to the valve or the adapter and tighten the union nut. The DuoFern Radiator Actuator has minimal flexibility after the installation in order to be able to optimise the view on the display. You should therefore not overtighten the union nut. You can use one of the enclosed adapters for mounting on Danfoss radiator valves. -
Page 13: Performing An Installation Run (Ins)
8.5 Performing an installation run (InS) Activate installation mode (InS) by briefly pressing the menu button. The drive then automatically performs an installation run to define the end positions. The normal display appears with the set target temperature after a successful installation run. The DuoFern Radiator Actuator is now ready for operation. -
Page 14: Settings On The Ready-To-Use Device
9. Settings on the ready-to-use device The display switches off automatically to save energy. Pressing any button switches on the display again and switches the DuoFern Radiator Actuator to operating mode. The normal display then appears with the set target temperature. 9.1 Setting the target temperature You can adjust the desired target temperature in 0.5 °C steps by briefly pressing the button. -
Page 15: Child Protection Function / Operating Lock
9.2 Child protection function / operating lock First activate the normal display by pressing any button, see page 14. Activating the child protection function Press briefly 1 x, until the lock symbol flashes. Manual operation is still possible. After the display goes off and is re- activated, the lock symbol is dis- played continuously and the device cannot be operated. -
Page 16: Introduction To Opening The Menus And Setting The Functions
10. Introduction to opening the menus and setting the functions Different settings can be made and functions can be activated (On) or deactivated (OFF) in the DuoFern Radiator Actuator menu. Navigation in the menu Setting parameters, see next chapter The settings are saved by pressing the menu button. Return to the normal view ◆... -
Page 17: Automatic Function (Aut)
10.1 Automatic function (Aut) Automatic mode On (factory setting) All control commands are permitted from a HomePilot ® Automatic mode OFF = manual mode Only on-site changes or manual changes are implemented by the HomePilot ® 10.2 Boost function (boS) The boost function enables the room to be heated for a short time and is automatically deactivated after 15 minutes. -
Page 18: Duofern Menu (Duo) Logging On / Logging Off / Clearing
10.3 DuoFern menu (duo) Logging on / logging off / clearing You can log the HomePilot onto the DuoFern Radiator ® Actuator in this menu (duo). You can log on a maximum of one HomePilot ® Please also read the instruction manual for the HomePilot ®... - Page 19 10.3 DuoFern menu (duo) Logging on / logging off / clearing Logging on to the HomePilot ® LED signals when logging on ◆ Flashes green: during the login ◆ Lights up green for 2 seconds: after a successful login ◆ Lights up red for 2 seconds: if the login has not taken place within 2 minutes or an error has occurred Logging off the HomePilot ®...
-
Page 20: Internal Window Open Detection (Det)
10.3 DuoFern menu (duo) Logging on / logging off / clearing Clearing the DuoFern 5 sec. Radiator Actuator The radio connection to a HomePilot that can no longer be ® accessed is deleted. LED signals during the clearing process ◆ Flashes red: during the clearing process ◆... -
Page 21: External Window Open Detection
10.4 Internal window open detection (dEt) Window open detection takes place irrespective of whether the DuoFern Radiator Actuator is in manual or automatic mode. If an open window is detected, this message (OPn) appears for the duration of the process. Alternatively, you can also use an external DuoFern window/door contact (Item no. -
Page 22: Rotating The Information On The Display (Dis) (180°)
10.6 Rotating the information on the display (dIS) (180°) Factory setting = OFF It may be beneficial to rotate the information shown on the display through 180° depending on the installation. The display is rotated only after confirming with the menu button, see page 16. 10.7 Viewing the battery charge level (bAt) 10.8 Viewing the current software version (ld) -
Page 23: Deleting All Settings And Resetting To The Factory Settings
11. Deleting all settings and resetting to the factory settings First activate the normal display by pressing any button, see page 14. Deactivate the child protection function if it is active, see page 15. Press and hold, additionally press and hold. Be sure to follow the specified ... -
Page 24: Error Messages And Troubleshooting
12. Error messages and troubleshooting Errors that have occurred are shown on the display with an error code. E1 = The drive is not installed ◆ Install the DuoFern Radiator Actuator at a suitable place. E2 = Error in the mechanics An error has been detected during the installation run. -
Page 25: Cleaning / Maintenance
Radiator Actuator. ◆ Use only a soft, slightly damp cloth to clean the device. 14. Simplified EU declaration of conformity RADEMACHER Geräte-Elektronik GmbH, hereby declares that the DuoFern Radiator Actuator complies with the Directive 2014/53/EU (Radio Equipment Directive). The full text of the declaration of conformity is available at the following website: www.rademacher.de/ce... -
Page 26: Information About Environmental Protection
15. Information about environmental protection Removal of the batteries prior to the final disposal The batteries must be removed again prior to disposal Disposal of used batteries Batteries may not be disposed of in domestic waste and must be disposed of separately. -
Page 27: Warranty Terms And Conditions
Proof of this must be provided by presenting a copy of the invoice. RADEMACHER will remedy any defects that occur within the warranty period free of charge either by repair or replacement of the affected parts or by supplying a new replacement unit ... - Page 28 RADEMACHER Geräte-Elektronik GmbH Buschkamp 7 46414 Rhede (Germany) info@rademacher.de www.rademacher.de Service: * 30 seconds free of charge, subsequently Hotline 01807 933-171* 14 cents / minute from German fixed line Fax +49 2872 933-253 networks and max. 42 cents / minute from service@rademacher.de German cellular networks.
