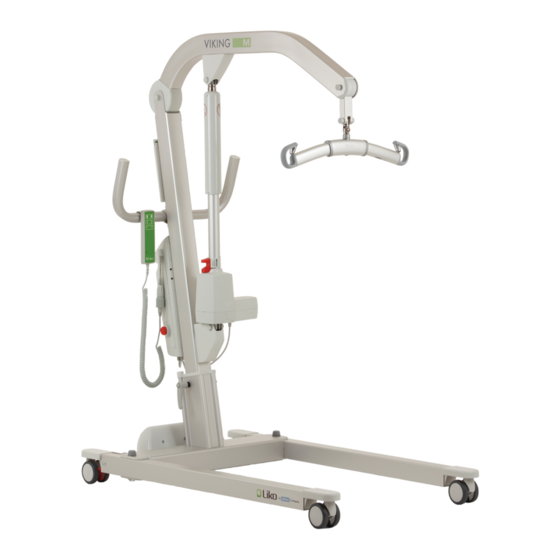

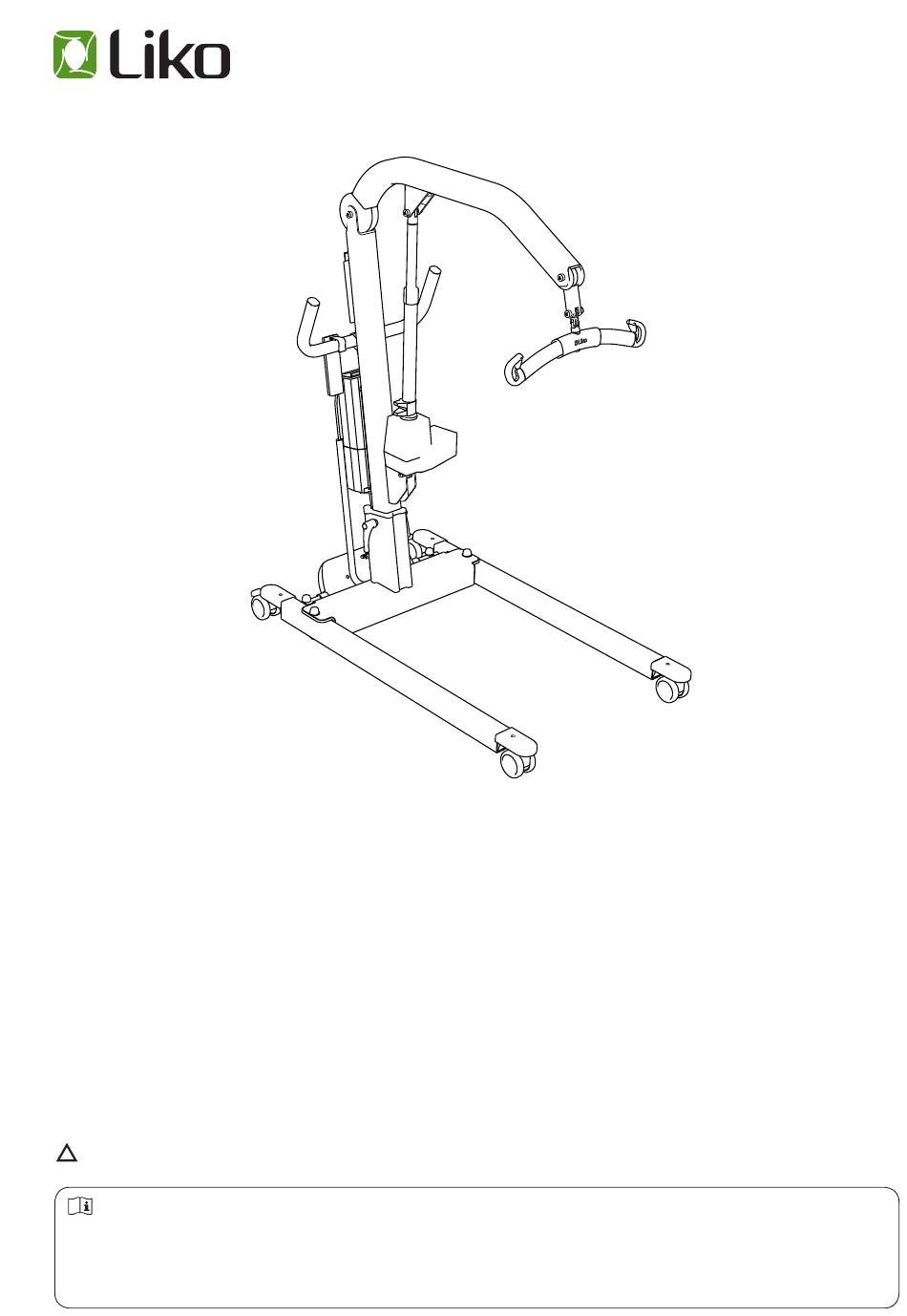

Viking M is an electrically-powered mobile lift, designed
to be used in most of the common lifting situations, for
example:
• between the bed and a wheelchair
• to and from the toilet or bathtub
• lowering and raising patients to/from the floor
Selecting the appropriate slings and accessories for
each individual patient is important to assure maximum
function and safety when using a patient lift.
In this document, the person being lifted is called the "patient" and the person helping is called the "caregiver".
"Caution!" triangles are used to warn of situations that demand extra care and attention.
CAUTION!
Carefully read instructions for the lift and lifting accessories before use.
Lifting and transferring a person always presents a potential risk. A thorough understanding of the contents of
this instruction guide is essential. Only trained personnel should use the equipment.
If you have questions, please contact Liko or your local Liko representative.
Product Description
Viking M can be adjusted to three different heights
to give you the most appropriate lifting range.
The mid-range is the standard position, while the
lower position may be the most suitable for lifting
children. The upper position may be needed for higher
lifts, for example to beds and gurneys that cannot be
adjusted in height.
Viking M
Instruction Guide
English
7EN137102-02
2007-05-08
Applies to the following models:
Viking M
Prod. No. 2040005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viking M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Liko Viking M

  • Page 1 Lifting and transferring a person always presents a potential risk. A thorough understanding of the contents of this instruction guide is essential. Only trained personnel should use the equipment. If you have questions, please contact Liko or your local Liko representative.
  • Page 2: Table Of Contents

    A complete understanding of the contents of the instruction guide is essential, and only personnel who are well informed should use the equipment. Remember to keep the instruction guide readily accessible for users of the product. Viking M • 7EN137102-02 ww w. l ik o.com...
  • Page 3: Safety Instructions

    Never leave a patient unattended in a lifting situation! Viking M is tested by an accredited testing institute and complies with the requirements of directives for medical- technical Class I products (MDD 93/42/EEC).
  • Page 4: Technical Data

    A: Max. load and weight in kg. Measurement in cm. B: Max. load and weight in lbs. Measurement in inch. * These measures depend on in which hole the mast is levelled and secured. See assembly instructions page 5. Viking M • 7EN137102-02 ww w. l ik o.com...
  • Page 5: Assembly

    - Handcontrol cable to socket number 1 the handles so they are vertically aligned (pointing - Cable for lift arm motor to socket number 2 down). - Base motor cable to socket number 3 Viking M • 7EN137102-02 w w w .l i k o.com...
  • Page 6 • the width adjustment of the base functions • emergency lowering works properly (mechanical • the indicator lamp on the front of the control box and electrical) lights during charging. Viking M • 7EN137102-02 ww w. l ik o.com...
  • Page 7: Operation

    Locked wheels during lifting increases the risk of the lift tilting over. Never pull the lift by the actuator! This may result in damage to the lift and possible injury. Viking M • 7EN137102-02 w w w .l i k o.com...
  • Page 8: Charging The Batteries

    Note! The lift does not operate when the charger cable is plugged into a wall socket. Old batteries are to be left at the nearest recycling station or given to personnel authorized by Liko. Viking M • 7EN137102-02 ww w. l ik o.com...
  • Page 9: Maximum Load

    For the total lift system, the lowest max. allowable load indicated for the respective products on the system always applies. For example: A Viking M that is approved for 205 kg (450 lbs.) may be equipped with a slingbar that is approved for 300 kg (660 lbs.).
  • Page 10 Quick-release Hook Liko’s Quick-release Hook system enables quick and easy exchange of lifting accessories on Liko’s mobile and stationary lifts. Viking can be equipped with Q-link 13 (prod. no. 3156509) for use with Quick-release Hook, which is mounted on the lifting accessory.
  • Page 11: Simple Troubleshooting

    (marked) to safely lower the patient (p. 7). 4. Check that the battery is charged. 5. If the lift still does not work satisfactorily, contact Liko. If you hear unusual sounds. Contact Liko. Viking M • 7EN137102-02 w w w .l i k o.com...
  • Page 12: Care And Maintenance

    Repairs and maintenance may only be carried out by personnel authorized by Liko using original Liko spare parts. Service agreements Liko invites you to sign a service agreement for regular maintenance and testing of your Viking mobile lift. Contact your local Liko representative for more information.
