- Page 1 MAZ-4250E 4-CHANNEL MULTICHANNEL AMPLIFIER WITH MONO OUTPUT N Instruction manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
-
Page 4: Controls And Functions

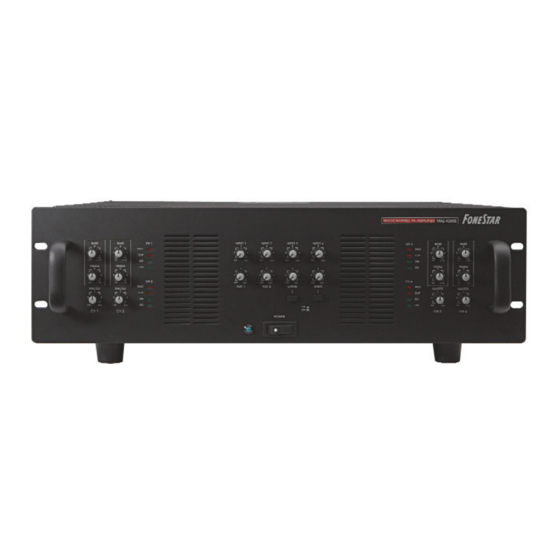

DESCRIPTION Multichannel amplifier with four output channels with independent volume control, 4 x 300 W max. 4 x 250 W RMS. 4-8 Ω low impedance output and 100, 75 and 25 V high impedance lines. Suitable for P.A. and audio applications with different speaker zones which need independent volume control. The preamp and mix stage has 4 balanced mic. - Page 5 BACK PANEL 1.- SPEAKER OUTPUT TERMINALS: 4-8 Ω low impedance output and 100, 75 and 25 V high impedance lines. 2.- AC power supply socket. 3.- PRE OUT/AMP IN: output connectors from the PRE OUT and input connectors to the AMP IN. Both connectors are connected by an external bridge to allow the signal to pass.
- Page 6 CONNECTION Connect the speakers to the speaker output. Use the 4-8 Ω low impedance output or the 100, 75 or 25 V high impedance lines, depending on the type of speakers that you are going to connect. Do not use both types of output at the same time.
-
Page 7: Specifications
The last priority level is in the CHIME signal and INPUTs 2 to 4. This priority is activated by closing the CHIME PRIORITY contacts on the back panel and weakens the AUX 1 and 2 inputs. SPECIFICATIONS MAZ-4250E CHARACTERISTICS 4 output channels with independent volume control, phantom power, priority, chimes and siren. - Page 8 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
