MA-30, MA-30RGU
100 V LINE MONO AMPLIFIERS
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FONESTAR MA-30

Summary of Contents for FONESTAR MA-30

  • Page 1 MA-30, MA-30RGU 100 V LINE MONO AMPLIFIERS INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Controls And Functions Front Panel

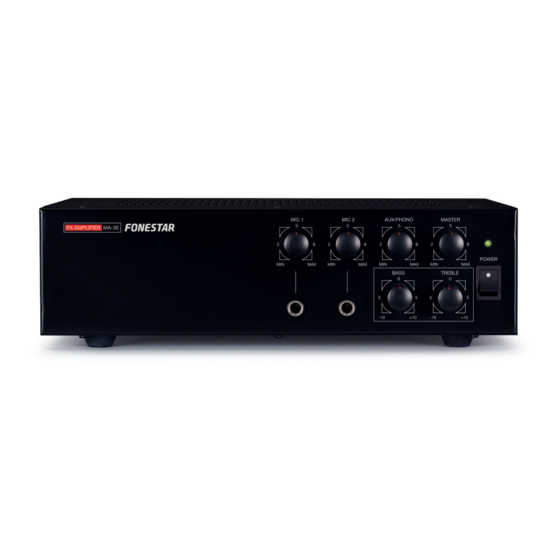

    DESCRIPTION Model MA-30 is a mono amplifier, 45 W maximum, 30 W RMS. 4 Ω speaker output and high impedance 100, 70 and 25 V lines. Model MA-30RGU is a mono amplifier, 45 W maximum, 30 W RMS. 4 Ω speaker output and high impedance 100, 70 and 25 V lines.
  • Page 5 SD/MMC card reader: connection port for SD/MMC memory cards. REC (Memory): Button for recording from the AUX/PHONO, MIC 1 and MIC 2 inputs. Follow the steps below to record: - Connect a USB device or SD card and press the REC button to start recording. - REC will appear on the display..

  • Page 6: Rear Panel

    REAR PANEL 1.- 115 V/230 V: power supply voltage selector. 2.- FM: FM digital tuner aerial input. Note: Only available in the MA-30RGU model. 3.- AC socket: For connecting the AC power cable. 4.- GND: Screw for earth. For using in the case of there not being an earth already incorporated. 5.- DC 12 V: 12 V DC power supply terminals.
  • Page 7 USB/SD/MP3 PLAYER/ RECORDER (only available in the MA-30RGU model) This model lets you play MP3 files contained in a USB storage device or in an SD/MMC memory card. To select the USB/SD/MP3 player/recorder as an audio source, choose the MP3 option by pressing the MP3/FM button.
  • Page 8 BLOCK DIAGRAMTECHNICAL SPECIFICATIONS - 8 -...

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS MA-30 MA-30RGU CHARACTERISTICS P.A. amplifier. P.A. amplifier. Priority. USB/SD/MP3 player/recorder. Digital FM tuner. Priority. POWER 45 W maximum, 30 W RMS RESPONSE 80-18 000 Hz ±3 dB DISTORTION Less than 0.5% at 1 kHz INPUTS 2 unbalanced mics., 6.3 mm jack 600 Ω 2 mV 1 auxiliary/phono, 2 x RCA 10 000 Ω...

  • Page 10: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
