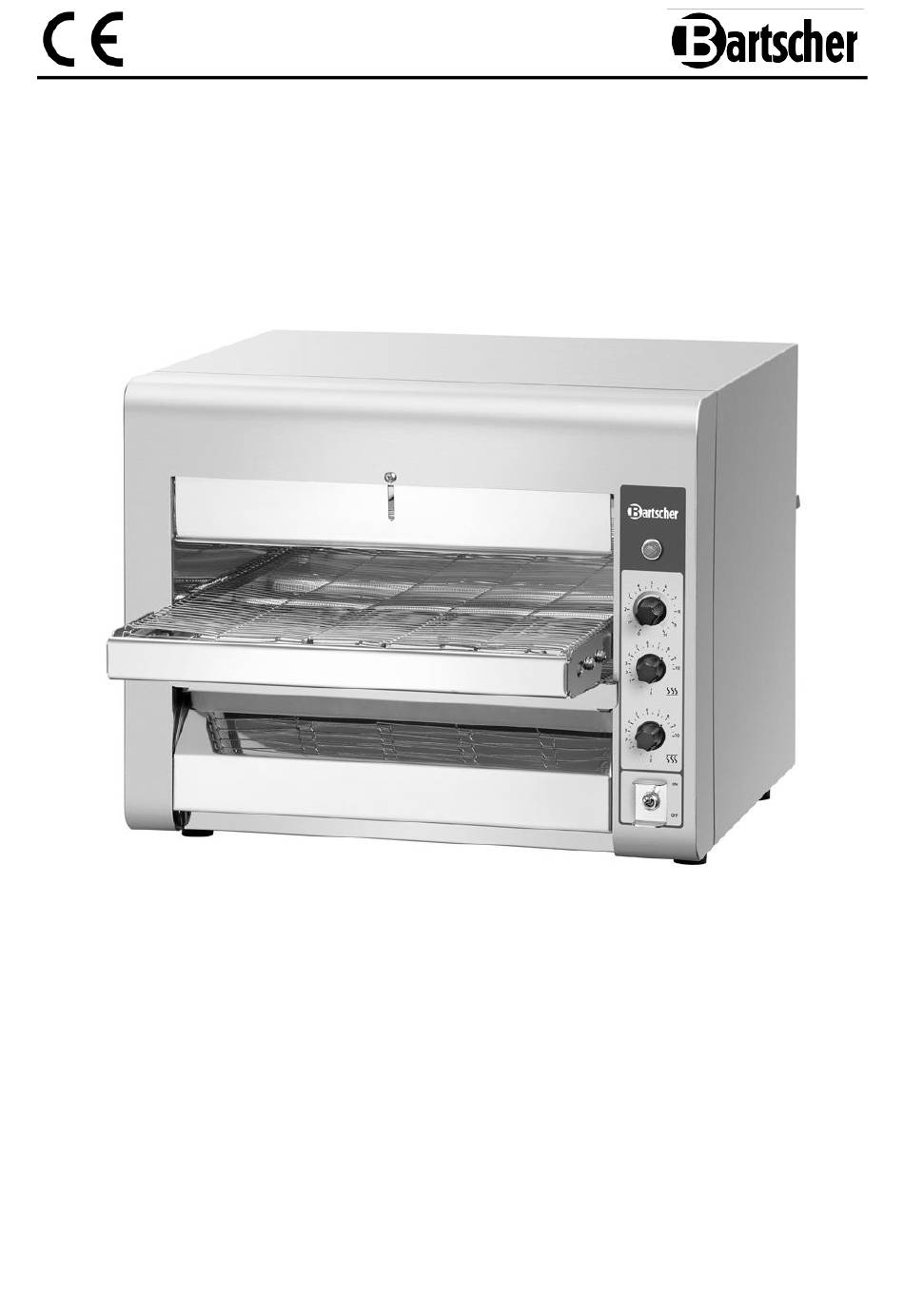

  • Page 1 3550TB10 2002200 Original-Gebrauchsanleitung V1/1017...

  • Page 2: Table Of Contents

    4.2 Technical specification ..................31 5. Installation and operation ..................32 5.1 Installation ......................32 5.2 Operation ......................33 6. Cleaning ........................38 7. Waste disposal ......................40 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...

  • Page 3: Safety

    Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5  Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!  Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. ...
  • Page 6  Check the power cord regularly for damage. Do not use the device if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. ...
  • Page 7  Use only designated switches and controllers.  The device remains hot still for some time after it has been switched off. Before cleaning or moving the device to another place, let it cool down completely. WARNING! Risk of fire or explosion! To avoid the hazard results please follow the safety instructions below.

  • Page 8: Proper Use

    1.3 Proper use CAUTION! The device has been designed and built for commercial use and should be operated only by qualified personnel in kitchen facilities. The operational safety of the device is assured only in case of proper use, according to the operation manual.

  • Page 9: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 10: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 11: Technical Data

    4. Technical data 4.1 Overview of parts Rear view - 30 -...

  • Page 12: Technical Specification

    Heat protection sheet, rear, adjustable Feet (4) Delivery tray Crumb tray, removable 4.2 Technical specification Name Conveyor pizza oven 3550TB10 2002200 Code-No.: Material: Housing, cooking chamber: stainless steel  Oven functions: Top / bottom heater, Independent adjustment of top / bottom heat Model: ...

  • Page 13: Installation And Operation

    5. Installation and operation 5.1 Installation CAUTION! Any installation, connection and maintenance work related to the device may be performed by the qualified and authorised technician only, according to the valid international, national and local regulations. Positioning  Unpack the device and remove and dispose of all package materials according to the environment protection regulations.

  • Page 14: Operation

    Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! ...
  • Page 15 NOTE! Do not allow the device to operate in high temperature when not in use or during empty runs. To safe energy, select low temperature setting. The device needs only a few minutes to reach the operating temperature. Prepare the device ...
  • Page 16 Control panel Power indicator light (red) Conveyor speed knob controller Temperature knob controller for top heater Temperature knob controller for bottom heater Main ON/OFF switch Heat protection sheet  The heat protection sheets are mounted above the conveyor, in front and rear. They are intended to optimally maintain the heat in the baking chamber.
  • Page 17 Removable crumb tray  The device is supplied with the crumb tray located under the conveyor on the designated guide tracks.  The crumb tray is intended for collection of crumbs, food scraps, etc. CAUTION! During operation, the device should always be provided with the crumb tray placed under the conveyor.
  • Page 18 Conveyor speed  You can adjust the conveyor speed with the designated conveyor knob controller in the range 0 – 10. At ”0“ setting, the conveyor does not stop, it is the lowest setting.  It is recommended to test the conveyor speed:for required food. To do so, follow the instructions: 1.

  • Page 19: Cleaning

    6. Cleaning WARNING! Before cleaning, turn the temperature knob controller for top and bottom heater and conveyor speed knob controller to “0”, set the main switch to “OFF” and disconnect the device from the electric power supply (pull the plug!). Leave the device to cool down completely.
  • Page 20 Weekly cleaning o Set the main switch to its “OFF” position, disconnect the device from the electric power supply and leave to cool down. Conveyor cleaning o Clean the conveyor regularly (at least once a week), and move often in case of tougher soiling.

  • Page 21: Waste Disposal

    CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
