Summary of Contents for Bartscher MDI 1BWR 1750

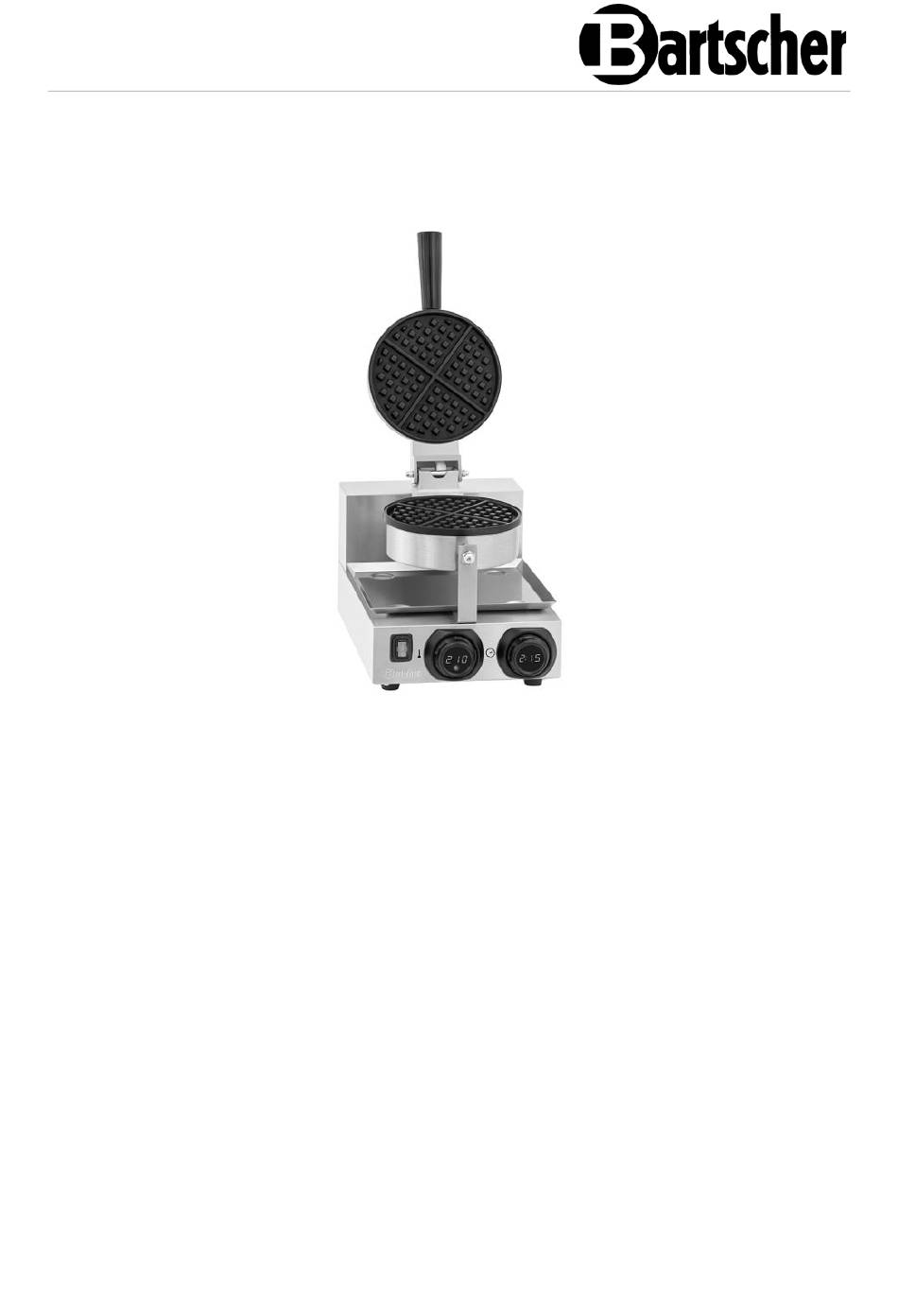

  • Page 1 MDI 1BWR 1750 370280...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Service hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-03-14...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety Hot Surfaces • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...

  • Page 8: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Baking waffles. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature.

  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Name: Waffle maker MDI 1BWR 1750 370280 Art. No.: Material: stainless steel Baking tray material: aluminium, coated Number of baking units: Waffle shape: Belgian waffle | round Waffle size, Ø in mm: Temperature range, min.–max., in °C: 50 - 300 Time setting, from–to, in min.:...

  • Page 12: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Fig. 1 1. Top baking tray handle 2. Top baking tray 3. Top baking tray fixing 4. Bottom baking tray 6. Power cord 5. Control panel 7. Reset button 8. Feet (4 pcs) 10.

  • Page 13: Functions Of The Appliance

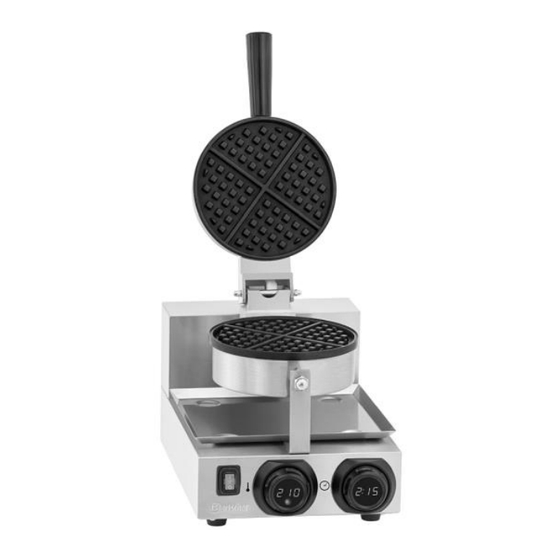

    The MDI 1BWR 1750 waffle maker makes round Belgian waffles. This powerful waffle maker with its coated baking trays produces exceptionally ideal waffles thanks to the Bartscher MDI control. Owing to its intuitive operation via a push-in rotary controller with digital display, timer and audible signal, you will be able to handle even in peak hours and in no time while, at the same time, ensuring consistent quality.
  • Page 14 Installation and operation • If the appliance is covered with a protective film, remove it. Remove the film slowly, so no glue residues are left. Remove any glue residues with the use of a suitable solvent. • Be careful not to damage the rating plate and warning labels fixed on the appliance.

  • Page 15: Operation

    Installation and operation Operation WARNING! Risk of burning! When in use, the baking trays and external surfaces of the appliance get very hot. The device remains hot still for some time after it has been switched off. Do not touch hot surfaces. When operating the appliance, you may only touch its handle and control elements.
  • Page 16 Installation and operation Switching the Appliance On and Heating It Up 5. Close the top baking tray using the handle. 6. Plug the appliance into a suitable single socket. 7. Switch the ON/OFF switch to 'I' position. The green operation indicator light in the ON/OFF switch lights up. 8.
  • Page 17 Installation and operation Settings The waffle maker is controlled with two push rotary control knobs: – Push rotary time control knob – Push rotary temperature control knob The push rotary control knobs are integrated with digital displays that allow reading the most recently set time and temperature.
  • Page 18 Installation and operation The red indicator light in the push rotary time control knob blinks. When the time elapses, the acoustic signal is generated. To switch off the signal, press the push rotary time control knob shortly. NOTE! When the set time elapses, the appliance does not switch to standby mode —...
  • Page 19 Installation and operation 5. Depending on the required browning level, bake for approx. 3–7 minutes. Fig. 4 Fig. 5 6. When the set baking time elapses (the signal tone is emitted), open the appliance using the handle. 7. Carefully remove the ready waffles using suitable kitchen utensils (tongs, wooden spatula, etc.).
  • Page 20 Installation and operation Safety Thermostat The appliance is equipped with a safety thermostat that is automatically activated in case of overheating of the appliance. After the automatic switching-off, the appliance may only be switched on again by pressing the RESET button at the back of the appliance. Proceed the following way: –...
  • Page 21 Installation and operation in a container with a cover or wrap in aluminium foil. It will prevent them from drying out in high temperature. Recipe for delicious waffles (approx. 10 waffles) Ingredients: 250 g Wheat flour (405 type) 150 g Butter 200 ml Milk...

  • Page 22: Cleaning

    Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet.

  • Page 23: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate.

  • Page 24: Disposal

    Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
