Kickstand hinges
Table 6-5
Kickstand hinge description and part number
Description
Kickstand hinges
Before removing the kickstand hinges, follow these steps:
1.
Prepare the computer for disassembly
2.
Remove the following components:
a.
Kickstand (see
b.
Display panel (see
Remove the kickstand hinges:
1.

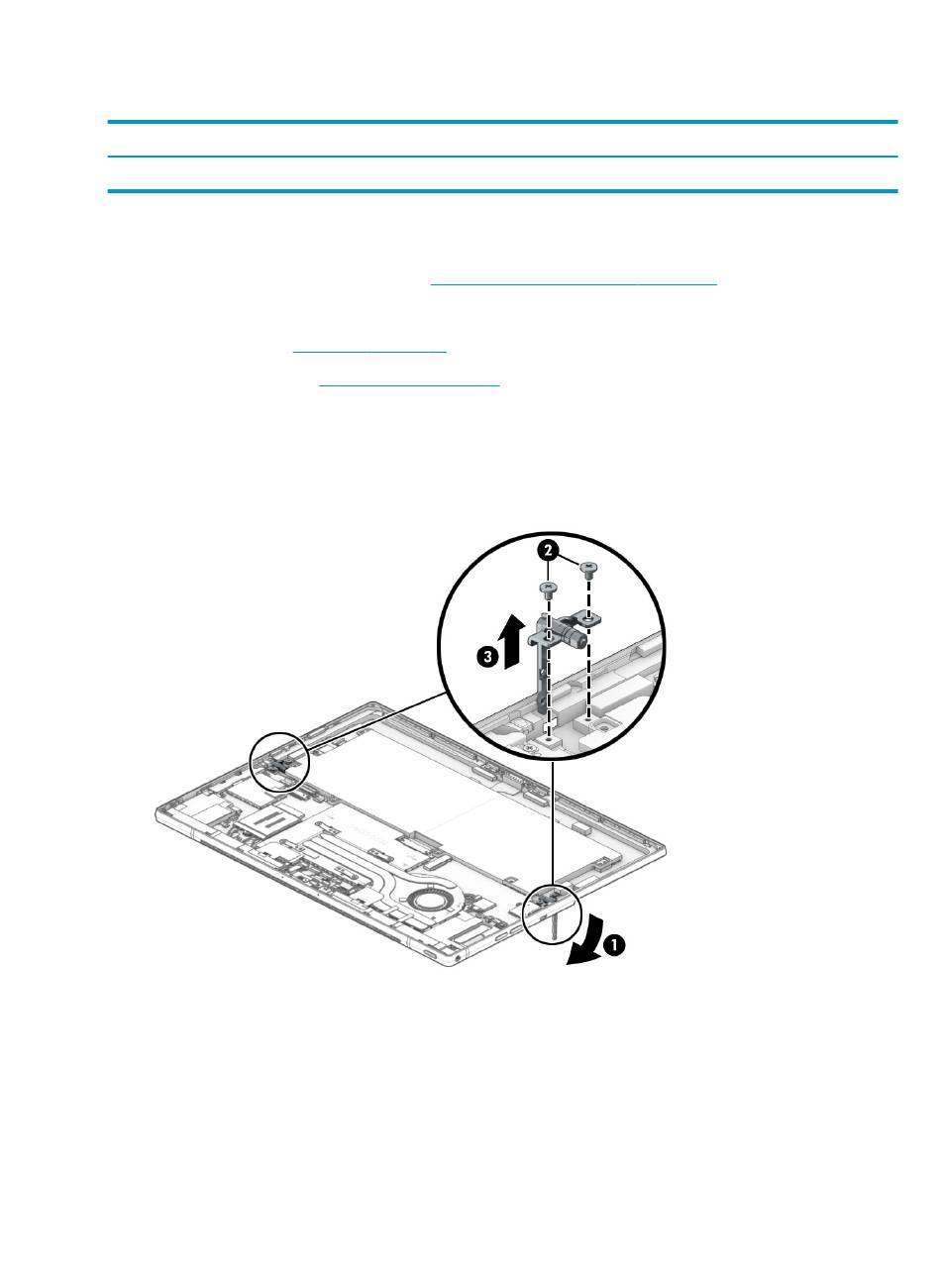

From the bottom, rotate the hinges up (1).
2.
Remove the two Phillips M2.0 × 3.0 screws from each kickstand hinge (2), and then remove the hinges
(3). Pull the hinges through the holes in the chassis to remove them.
Reverse this procedure to replace the kickstand hinges.
