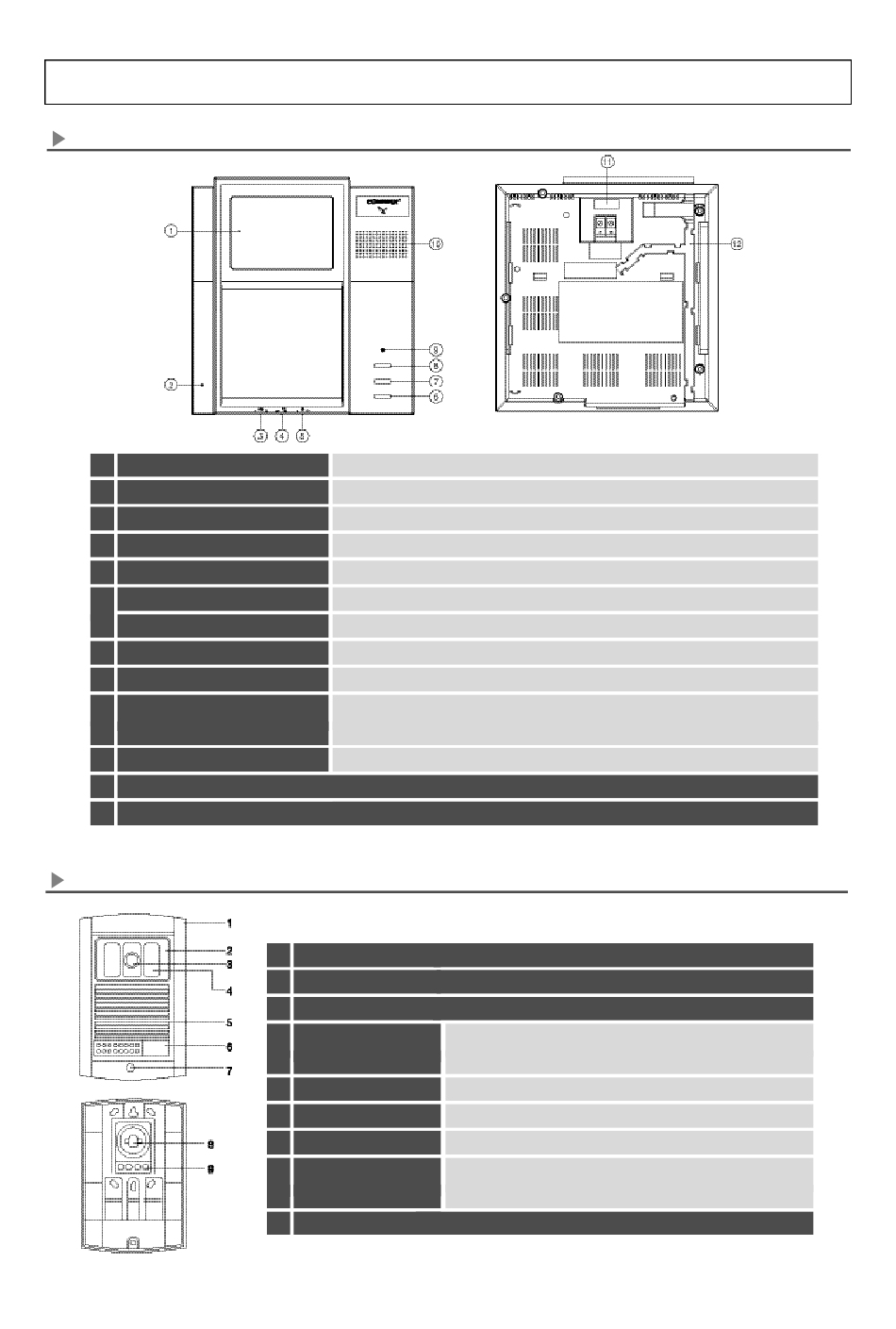

2. Parts Checklist and Functions

Monitor(DPV-4RH)
1 Monitor Screen
2 Microphone
3 Bell volume control
4 Power switch
5 Brightness control
6 APV-4RH(G uardroom)
DPV-4RH(O pen)
7 Priority C all
8 Monitor/Talk
9 LED light
10 Speaker
11 Individual(DPV models), guardroom(APV models) connection socket
12 Power cord insertion trenches
Camera(DRC-403N)
4" Flat B/W C RT
Sends voice to the camera.
C ontrols the volume of the ringtone.
C ontrols the power to the unit.
C ontrols the brightness of the screen.
Allows communication with the guardroom.
O pens the front gate if so equipped.
Allows only the household's voice to be heard
Displays the screen and initiates communication
Power on: Yellow, Signal from camera or guardroom : Red
During a conversation : Red
Voice from the camera or guardroom is delivered
1 Front Panel
2 C amera protection window
3 C C D camera lens
4 Infrared LED :
5 Speaker
6 Page button
7 Screw hole cover
8 C amera Pivoting Lever
9 Monitor connection socket
- 6 -
Allows for good visibility even when the lighting
conditions are less than adequate
Sound from the monitor is delivered
pages the monitor to initiate communication
Allows the camera lens to pivot about for the
optimum angle
