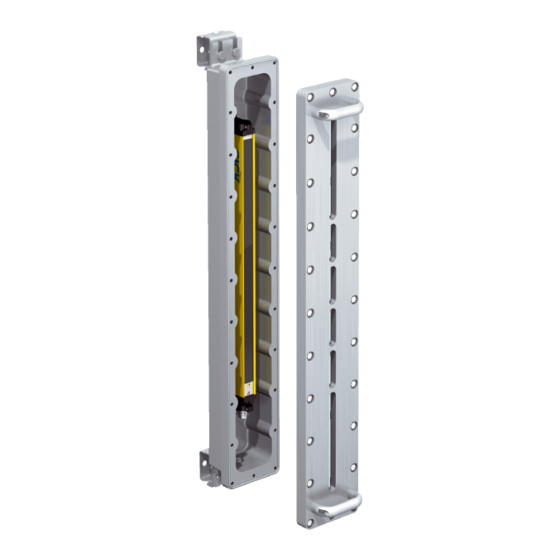

O P E R A T I N G I N S T R U C T I O N S
C4000 Fusion Ex
Safety light curtain

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C4000 Fusion Ex and is the answer not in the manual?

Questions and answers

Related Manuals for SICK C4000 Fusion Ex

Summary of Contents for SICK C4000 Fusion Ex

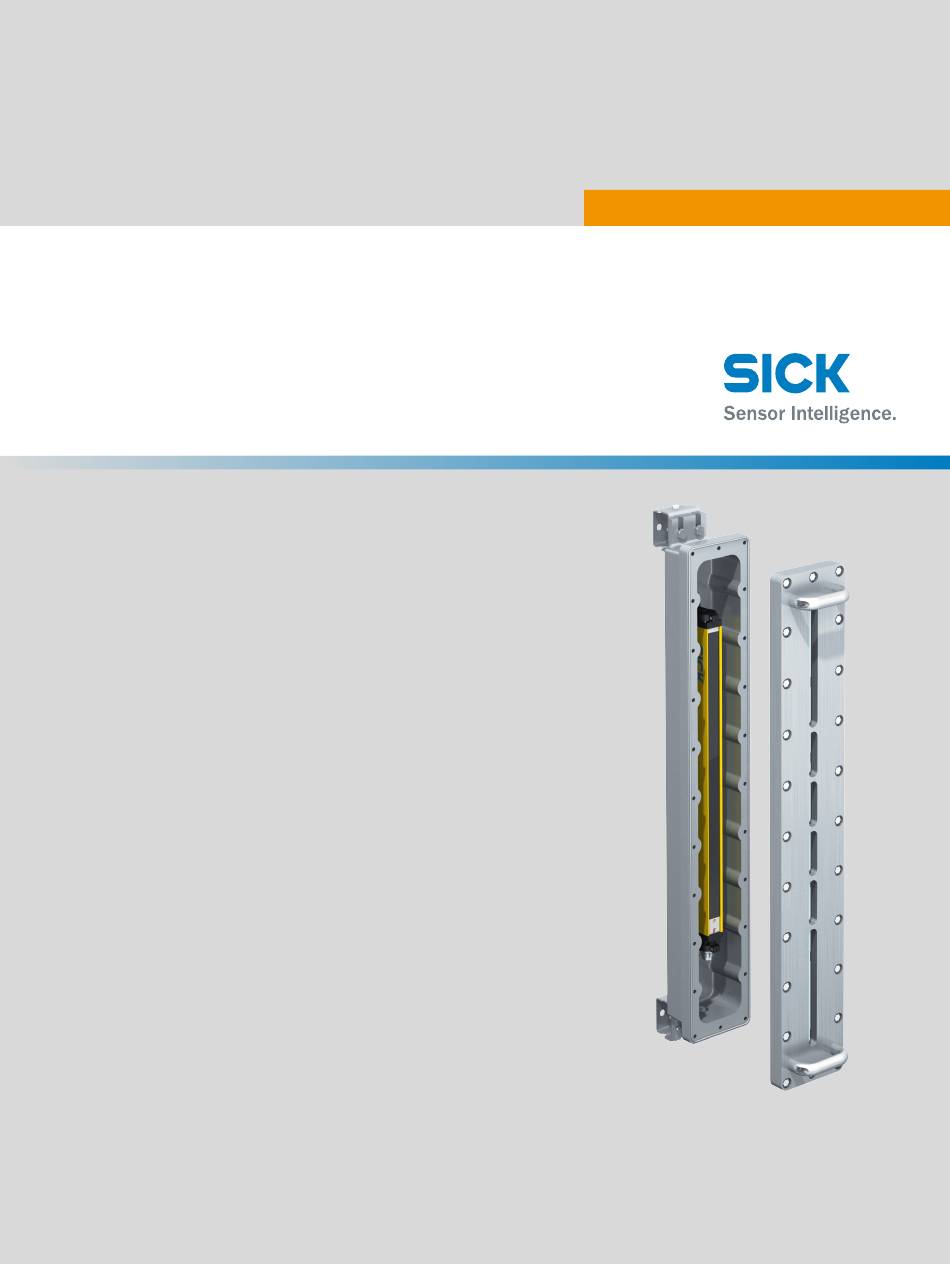

  • Page 1 O P E R A T I N G I N S T R U C T I O N S C4000 Fusion Ex Safety light curtain...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    List of figures..................33 List of tables..................34 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 4: About This Document

    This document is included with the following SICK part numbers (this document in all available language versions): 8022832 O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK Subject to change without notice...

  • Page 5: Safety Information

    In areas where there may be flying sparks 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 6: General Safety Notes

    Follow all safety notes in this document. O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...
  • Page 7 • Joint between cover and explosion-proof enclosure 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 8: Mounting

    "Data sheet", page O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...

  • Page 9: Unpacking

    (available as an accessory, see "Accessories", page 29). 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 10: Mount The Safety Light Curtain In The Explosion-Proof Enclosure

    Nm. Too high a torque could damage the swivel mount brackets while too low a torque does not provide sufficient protection against vibration. O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...
  • Page 11 Measure the distance from the end of the cover to the first rib. Detailed view 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 12: Mounting The Optional Cable Gland

    Tighten the screws with a torque of 4.5 to 5 Nm. O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...

  • Page 13: Mounting The Safety Light Curtain

    8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 14: Mounting The Safety Light Curtain Without The Alignment Bracket

    O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...
  • Page 15 M8 screws. Tighten the two lower M8 screws. 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 16: Mounting The Safety Light Curtain Using The Alignment Brackets

    Figure 9: Mounting the safety light curtain using the alignment brackets Figure 10: Assembling the alignment brackets O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...
  • Page 17 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...
  • Page 18 11. Turn the safety light curtains so that they face one another and so that the receiver receives the strongest signal possible. O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...
  • Page 19 Nm in order to secure the safety light curtain in this position. 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 20: Electrical Installation

    16 mm S > 35 mm 0.5 S O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK Subject to change without notice...

  • Page 21: Aligning The Sender And Receiver

    Rotate the receiver to align the receiver to the sender. 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...
  • Page 22 O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...

  • Page 23: Maintenance

    8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 24: Technical Data

    1200 47.22 47.25 Tolerance: ± 50 g. O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK Subject to change without notice...

  • Page 25: Dimensional Drawings

    Figure 17: Dimensional drawing, sender and receiver, protective field height 600 mm 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...
  • Page 26 Figure 18: Dimensional drawing, sender and receiver, protective field height 900 mm O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...
  • Page 27 Figure 19: Dimensional drawing, sender and receiver, protective field height 1,200 mm 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 28: Ordering Information

    1200 1097732 EXS-12C6602A020 1097731 EXE-12C6602A020 1097730 EXP-12C6602A020 O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK Subject to change without notice...

  • Page 29: Accessories

    Figure 21: Dimensional drawing, mounting bracket with riser (2074626) 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 30: Connectivity

    5329002 The following accessories can only be used outside the explosion-hazardous area O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...

  • Page 31: Alignment Aid

    Laser alignment aid AR60 1015741 Adapter 2074849 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 32: Annex

    (part number: see the type label entry in the “Ident. no.” field). O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...

  • Page 33: List Of Figures

    21. Dimensional drawing, mounting bracket with riser (2074626)......29 22. Dimensional drawing, alignment bracket (2072525)..........30 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...

  • Page 34: List Of Tables

    Ordering information for cable gland................ 30 Ordering information for power supply..............31 O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK...
  • Page 35 LIST OF TABLES 8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex Subject to change without notice...
