Maintenance
Self-help

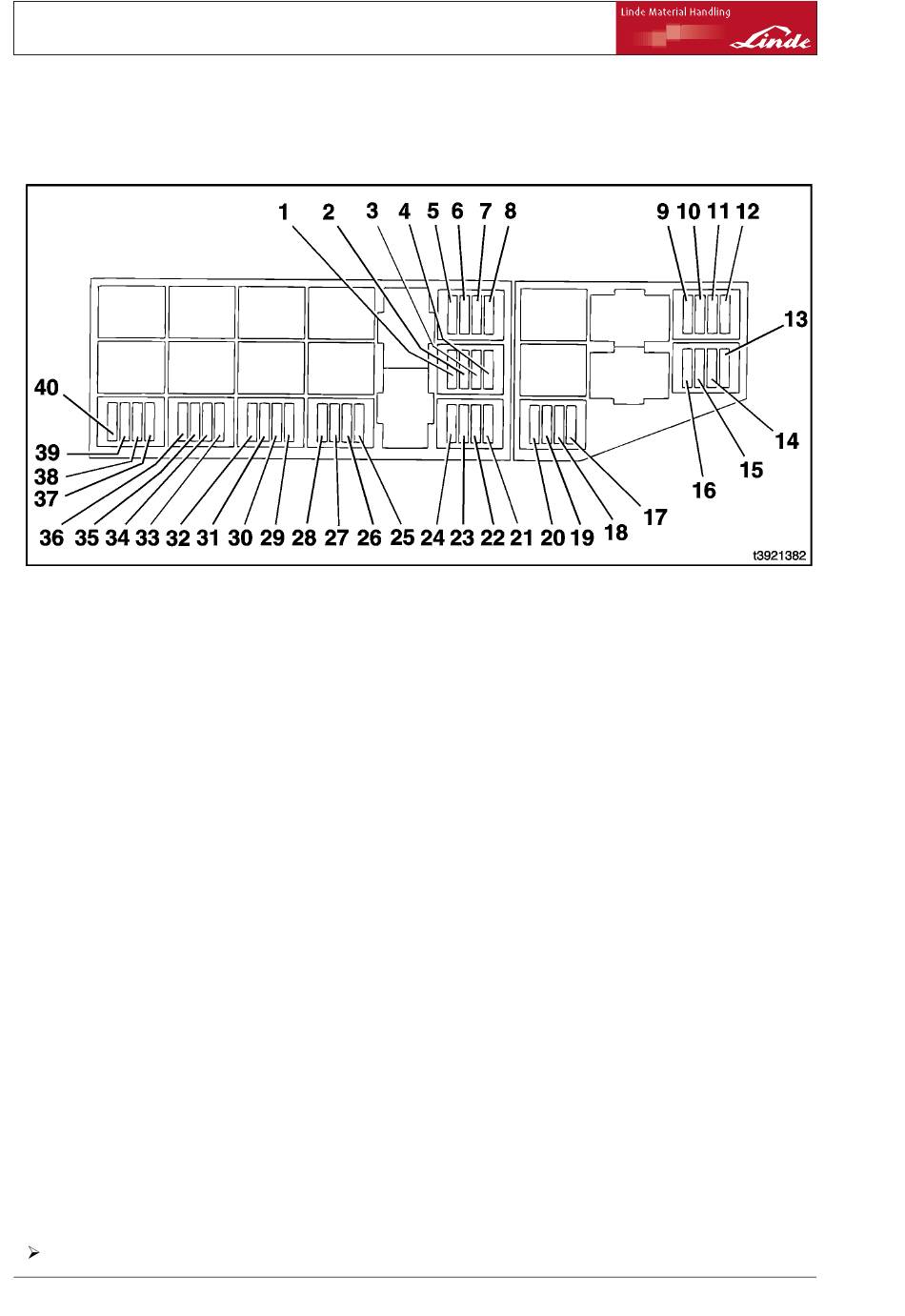

Fuses for basic and special equipment

Checking and changing fuses
1 12 V socket (9F10)*, 15 A
2 Heating/air conditioning (9F9)*, 20 A
3 Seat heater (9F6)*, 20 A
4 Warning light and rotating beacon (4F3)*,
7.5 A
5 Working spotlight positions 3, 4 (5F2)*, 15 A
6 Working spotlight positions 5, 6 (5F3)*, 15 A
(with one 7.5 A headlight fitted)
7 Working spotlight positions 7, 8 (5F4)*, 15 A
(with one 7.5 A headlight fitted)
8 Rear window heating (9F5)*, 20 A
9 Display unit (terminal 30) (F5), 5 A
10 Display unit (terminal 15) (F6), 5 A
11 Signal horn (F7), 15 A
12 Traction–lift control (terminal 15) (F8), 5 A
13 Engine control unit (F12), 5 A
14 Engine control unit (F11), 20 A
15 Not assigned
16 Traction-lift control (terminal 30) (F9), 15 A
17 3rd auxiliary hydraulics (F16)*, 7.5 A
18 Terminal 15 (F15), 10 A
19 Terminal 58 (F14), 5 A
20 Terminal 30 (F13), max. 15 A
* Special equipment

Main fuses in engine compartment

Checking and changing fuses
Open the bonnet.
192
21 Blower toothed belt sealing (0F1)*, 10 A or
Time-delayed lighting off (F17)*, 2 A
22 Particle filter (7F3)*, 30 A
23 Particle filter (7F2)*, 20 A
24 Particle filter (7F1)*, 5 A
25 Forklift Data Management (6F1)*, 5 A
26 Reverse travel (4F1)*, 10 A
27 Radio terminal 58 (9F8)*, 10 A
28 Radio terminal 30 (9F7)*, 5 A
29 Washer pumps (9F4)*, 10 A
30 Windscreen wiper rear and roof (9F3)*, 10 A
31 Front windscreen wiper (9F2)*, 10 A
32 Windscreen wiper (9F1)*, 5 A
33 Interior light (5F12)*, 5 A
34 Brake light (5F7)*, 5 A
35 Warning lights (5F6/5F13)*, 10 A
36 Lighting/working spotlight positions 1, 2
(5F5/5F1)*,15 A
37 Right sidelights (5F11)*, 5 A
38 Left sidelights (5F10)*, 5 A
39 Right headlight (5F9)*, 7.5 A
40 Left headlight (5F8)*, 7.5 A
Operating Instructions – 394 807 10 01 EN – 07/2011
