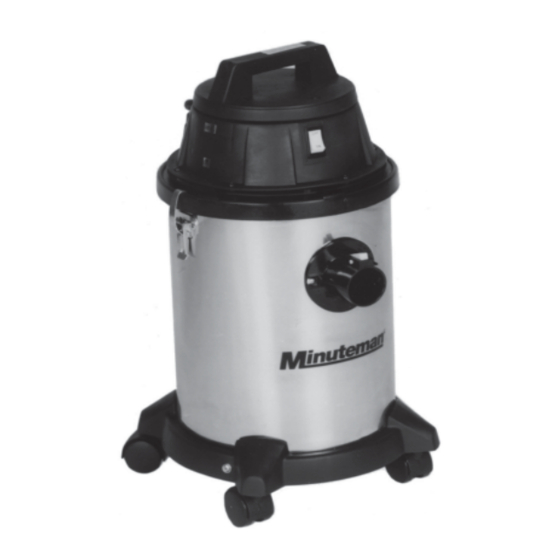

Minuteman 290 Series Parts And Instruction Manual
Stainless steel vacuum 4 & 6 gallon
Hide thumbs
Also See for 290 Series:
- Parts and instruction manual (20 pages) ,
- Operation service parts care (15 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Minuteman 290 Series
Summary of Contents for Minuteman 290 Series

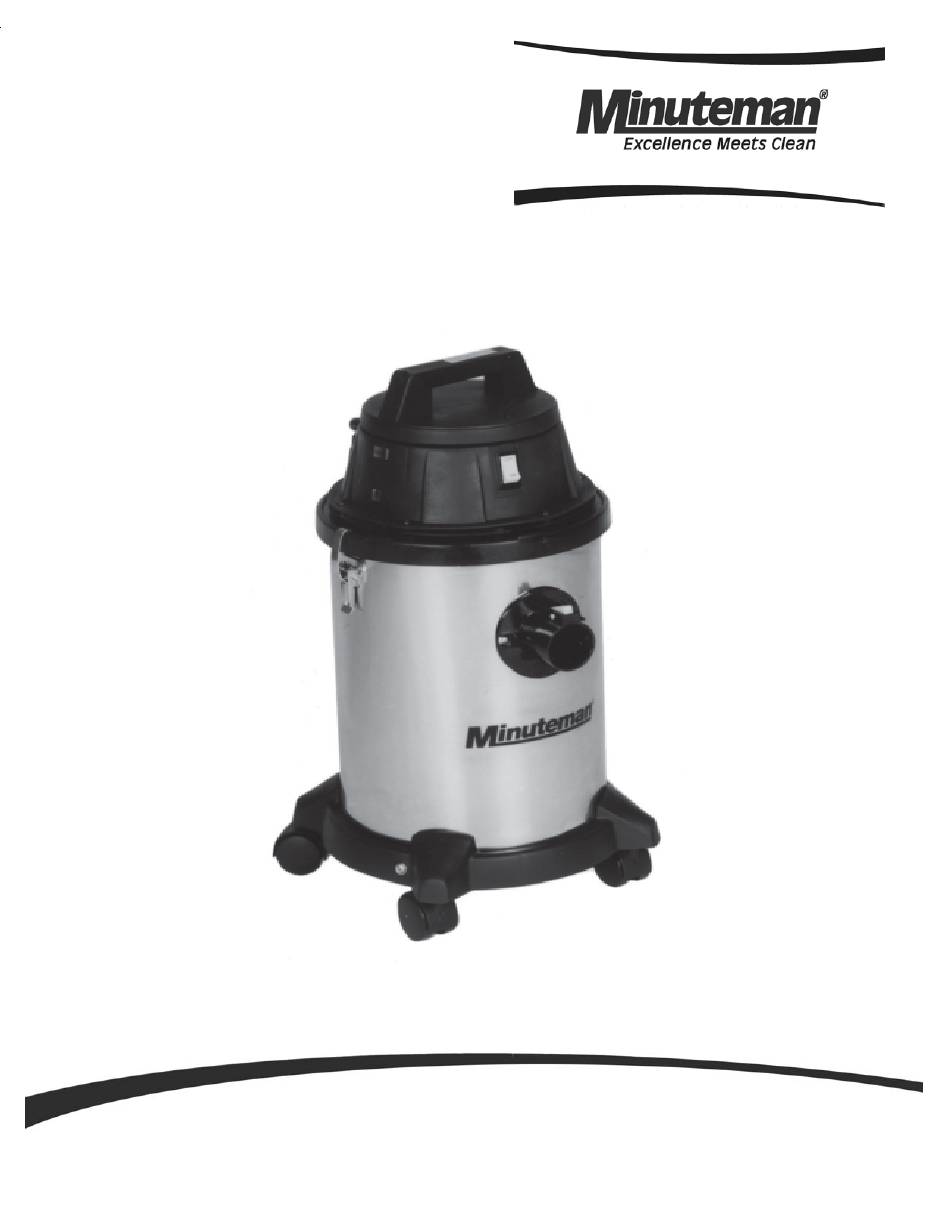

- Page 1 Parts and Instruction Manual 290 Series Stainless Steel Vacuum 4 & 6 Gallon...
- Page 2 This manual is furnished with each new MINUTEMAN 290 Vacuum. This provides the neces- sary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: •...
- Page 3 Parts and Instruction Manual...
-
Page 4: Table Of Contents
Lid Assembly (Wet/Dry) BOM ......................11 Tank Assembly ..........................12 Industrial Tools and Accessories ....................13 Model C29485-01, C29486-01 ...................... 13 Model C29685-01, C29686-01 ...................... 14 Wiring Diagrams ..........................15 Minuteman International Made Simple Commercial Limited Warranty........16 Parts and Instruction Manual... - Page 5 FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing, cleaning or maintaining.
-
Page 6: Inspection
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL - 115 Volt This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. -
Page 7: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical vacuum lid head assembly. No lubrication of the motor is required. CLOTH BAG & HOSE ASSEMBLY Cloth bag and hose assembly are user maintenance items and can be replaced when worn out. - Page 8 Parts and Instruction Manual Page 4...
- Page 9 Parts and Instruction Manual Page 5...
- Page 10 Parts and Instruction Manual Page 6...
-
Page 11: Exploded Views
Exploded Views Bag Assembly Item Part No. Qty. Description 760244 Bag Ring 4/6 PV Black 805043 Bag Only 4G 805040 Bag Only 6G 805044 Cloth Bag Assy 4G 805041 Cloth Bag Assy 6G Parts and Instruction Manual Page 7... -
Page 12: Lid Assembly (Dry Only)
Lid Assembly (Dry Only) Parts and Instruction Manual Page 8... -
Page 13: Lid Assembly (Dry Only) Bom
Capacitor Assembly .1UF 742254-1 Torroid Assembly w/Wire Assy 742391 RFI Filter 744407 Wire Assy Grn/Yel 8.00” 832107 RFI Bracket 290 Series Vac 294110 Lid Assy. Complete 115V Dry 294220CE Lid Assy. Complete 294 230V CE Dry Parts and Instruction Manual Page 9... -
Page 14: Lid Assembly (Wet/Dry)
Lid Assembly (Wet/Dry) Parts and Instruction Manual Page 10... -
Page 15: Lid Assembly (Wet/Dry) Bom
Lid Assembly (Wet/Dry) BOM Item Part No. Qty. Description 290017 Molded Vac Motor Gasket 290031 Lid Gasket 294/6 Diecut 290032 Dome Seal 296 380001-4 Vac Motor 120V (ECM) 380054-1 Vac Motor 240VAC w/Male QC Term 380005 Carbon Brush Replacement (ECM) 380028 Carbon Brush Replacement 380064... -
Page 16: Tank Assembly
Tank Assembly Item Part No. Qty. Description 390087 Gasket Diecut VNN 390110 Intake Assembly Aluminum 460113 Caster Bracket (4 Gal) 460113MCH Caster Bracket (6 Gal) 460118 Caster 710530 SCR-MC 8-32x.50 BRS 711372 Nut-Nloc 8-32 711503 Flat Washer #10 711584 Washer #10 711915 Rivet-Tube .19x.28 NI PL 712066... -
Page 17: Industrial Tools And Accessories
Industrial Tools and Accessories Model C29485-01, C29486-01 Part No. Description 829563 Dust Brush Complete 829562 Crevice Tool 1 1/4” (32 mm) 829565MCH Wand Tube (2 required) 829849 Hose Assy. 1-1/4 x 8 (32 mm x 2.4 m) 390013 Cuff 762241 Hose 829566 Tube Handle... -
Page 18: Model C29685-01, C29686-01
Industrial Tools and Accessories Model C29685-01, C29686-01 Part No. Description 800083 3" Rd. Dust Brush Complete 133249 Dust Brush HSG 3" 800084 Bristle Insert 3" 808023 Adapter 800035 12" Crev Tool Complete 290000 Wand Assy. 1-1/2, Complete 290001 Upper Wand 290002 Lower Wand 800317... -
Page 19: Wiring Diagrams
Wiring Diagrams Parts and Instruction Manual Page 15... -
Page 20: Minuteman International Made Simple Commercial Limited Warranty
A potential health hazard exits without original equipment replacement. All warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be. Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose.
