Minuteman 290 Series Parts And Instruction Manual
15 & 20 gallon vacuum
Hide thumbs
Also See for 290 Series:
- Parts and instruction manual (20 pages) ,
- Operation service parts care (15 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Minuteman 290 Series
Summary of Contents for Minuteman 290 Series

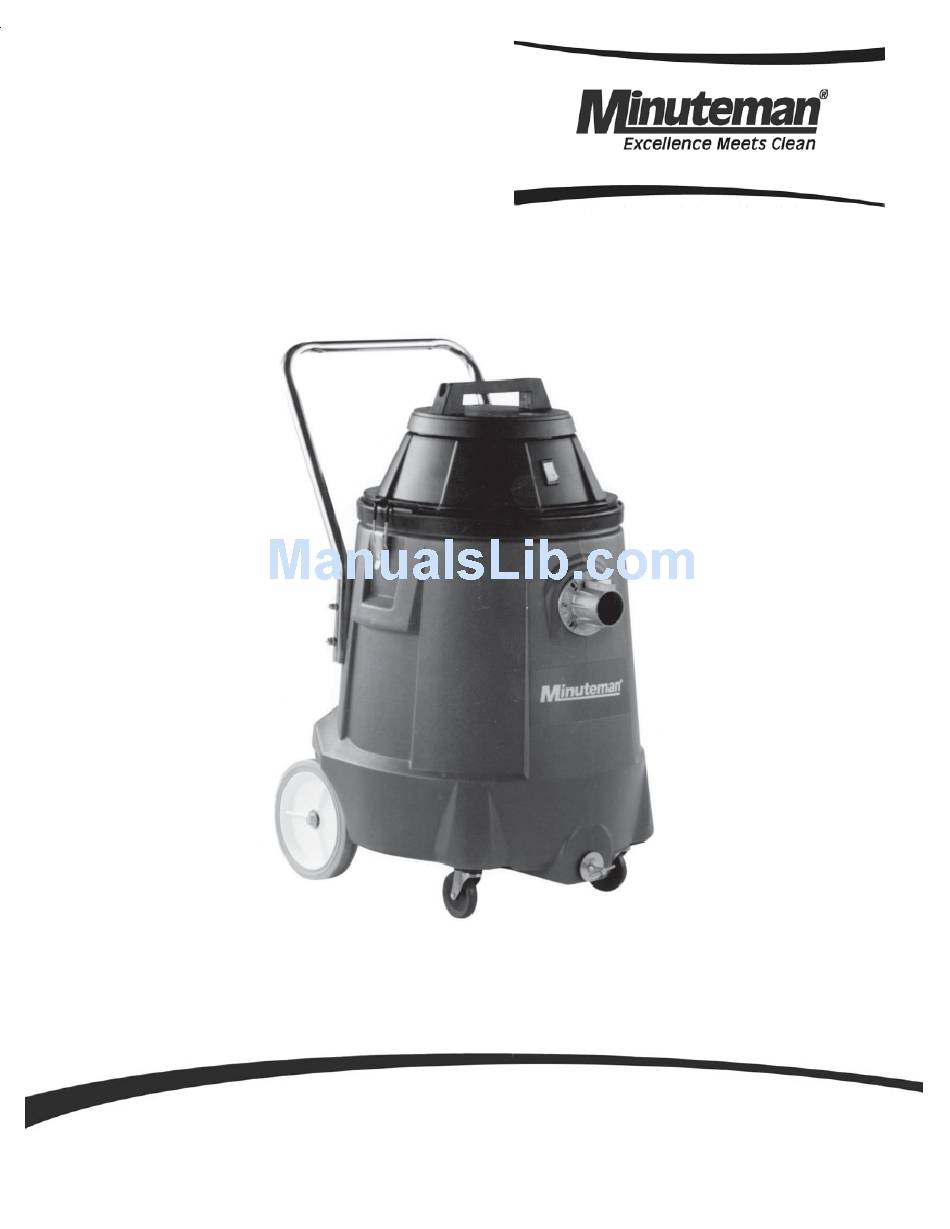

- Page 1 Parts and Instruction Manual 290 Series Vacuum 15 & 20 Gallon...
- Page 2 This manual is furnished with each new MINUTEMAN 290 Vacuum. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: ·...
-
Page 3: Table Of Contents
Lid Assembly - Three Motor ......................12 Lid Assembly - Three Motor BOM ....................13 Tank Assembly - 15 Gallon ......................14 Tank Assembly - 20 Gallon ......................15 Bag Assembly ..........................16 Minuteman International Made Simple Commercial Limited Warranty ........17 Parts and Instruction Manual... -
Page 4: Important Safety Instructions
FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. •... -
Page 5: Inspection
Inspection Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. Electrical - 115 This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. -
Page 6: User Maintenance Instructions
User Maintenance Instructions All service and repair should be performed by qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical vacuum lid head assembly. No lubrication of the motor is required. Cloth Bag & Hose Assembly Cloth bag and hose assembly are user maintenance items and can be replaced when worn out. - Page 7 Parts and Instruction Manual Page 4...
- Page 8 Parts and Instruction Manual Page 5...
- Page 9 Parts and Instruction Manual Page 6...
-
Page 10: Tools & Attachments
Tools & Attachments Part No. Description 800083 3" Rd. Dust Brush Complete 133249 Dust Brush HSG 3" 800084 Bristle Insert 3" 800035 12" Crev Tool Complete 290000 Wand Assy. 1-1/2, Complete 800317 Hose Assy. 1-1/2 x 10' 601032 Tool 800124 5"... -
Page 11: Exploded Views
Exploded Views Lid Assembly - Single Motor Parts and Instruction Manual Page 8... -
Page 12: Lid Assembly - Single Motor Bom
Lid Assembly - Single Motor BOM Item Part No. Qty. Description 290017 MOULDED VAC MOTOR GASKET (115V) 380035 GASKET, 4.31 X 5.81 X.19 (240V) 290030 LID GASKET DIECUT 15G 290 380001-4 VAC MOTOR ECM 115V 740149 VAC MOTOR 6296-13 240V 380005 CARBON BRUSH REPLACEMENT (115V) 380028... -
Page 13: Lid Assembly - Twin Motor
Lid Assembly - Twin Motor Parts and Instruction Manual Page 10... -
Page 14: Lid Assembly - Twin Motor Bom
Lid Assmbly - Twin Motor BOM Item Part No. Qty. Description 290017 MOULDED VAC MOTOR GASKET (115V) 380035 GASKET, 4.31 X 5.81 X.19 (230V) 290030 LID GASKET DIECUT 15G 290 380001-4 VAC MOTOR ECM 115V 740149 VAC MOTOR 6296-13 230V 380005 CARBON BRUSH REPLACEMENT (115V) 380028... -
Page 15: Lid Assembly - Three Motor
Lid Assembly - Three Motor Parts and Instruction Manual Page 12... -
Page 16: Lid Assembly - Three Motor Bom
Lid Assembly - Three Motor BOM Item Part No. Qty. Description 740149 MOTOR-VAC 240V 380028 2 EA CARBON BRUSH Replacement 380035 GASKET, 4.31 X 5.81 X.19 380064 RING, FOAM 740600 CORD-EUROPEAN F3 G1.5MM 50FT BLACK 460000 HANDLE 460 LID BLACK 460003 LID COVER 460 BLACK 460011... -
Page 17: Tank Assembly - 15 Gallon
Tank Assembly - 15 Gallon Parts and Instruction Manual Page 14... -
Page 18: Tank Assembly - 20 Gallon
Tank Assembly - 20 Gallon Parts and Instruction Manual Page 15... -
Page 19: Bag Assembly
Bag Assembly Item Part No. Qty. Description 760131 Molded Bag Ring 805054 Cloth Bag Only 805058 Cloth Bag Assy. Complete Parts and Instruction Manual Page 16... -
Page 20: Minuteman International Made Simple Commercial Limited Warranty
A potential health hazard exits without original equipment replacement. All warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be. Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose.
