Smith & Noble Metro Track Flat Aluminum Hardware Installation Instructions Manual

Wall mount single rod set
Hide thumbs Also See for Metro Track Flat Aluminum Hardware:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Warranty Service
The enjoyment of your hardware should be everlasting, which is why our
products come with a limited lifetime warranty. The warranty applies to the
original owner, requires a proof of purchase (hang on to your receipt!) and
covers defects in material or craftsmanship. Hardware must have been properly
installed. We reserve the right to determine if your hardware warrants a repair
or a replacement. Visit smithandnoble.com/guarantee to see full details. In
need of warranty service? Call us at 800.248.8888 and we'll arrange for a repair
or replacement ASAP.
© 2019 Smith & Noble Home, Inc. All Rights Reserved

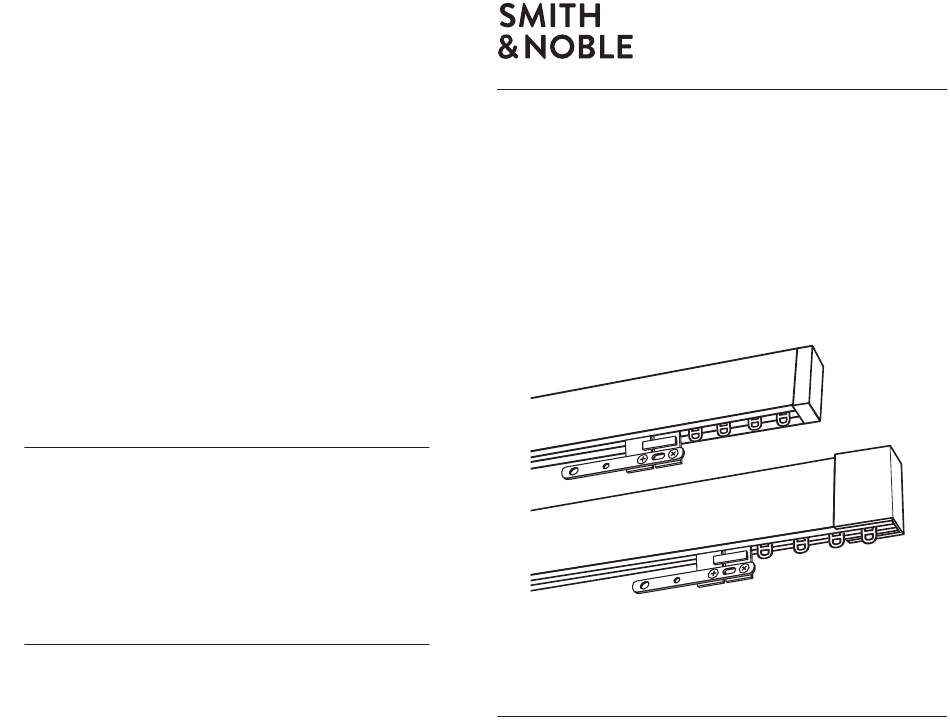

STEP BY STEP INSTALLATION INSTRUCTIONS
Metro Track
Flat Aluminum
Hardware
SN0419
Wall Mount
Single Rod Set

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Metro Track Flat Aluminum Hardware and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smith & Noble Metro Track Flat Aluminum Hardware

Summary of Contents for Smith & Noble Metro Track Flat Aluminum Hardware

  • Page 1 STEP BY STEP INSTALLATION INSTRUCTIONS Metro Track Flat Aluminum Hardware Warranty Service The enjoyment of your hardware should be everlasting, which is why our products come with a limited lifetime warranty. The warranty applies to the original owner, requires a proof of purchase (hang on to your receipt!) and covers defects in material or craftsmanship.

  • Page 2: Table Of Contents

    Everything Table of Contents You Need Getting Started ........3 Step 1 - Wall Mount Single Rod Set .

  • Page 3: Step 1 - Getting Started

    STEP 1 - GETTING STARTED OVERVIEW Tools & Parts Wall Mount Single Rod Set Before you begin, check the accompanying diagram to make sure you have all the parts you need. You’ll need to make sure the surface you intend to install your hardware is sturdy enough to accommodate the brackets.

  • Page 4: Step 2 - Mounting The Brackets

    STEP 2 - MOUNTING BRACKETS STEP 2 - MOUNTING BRACKETS Mounting the Brackets FIGURE A Place the panel on the rod. To en- Place center of bracket cover plate sure it drapes at the correct length, level against wall at the marked hold it up to the spot you wish to spots.

  • Page 5: Step 3 - Attaching The Rod Connector

    STEP 3 - ATTACHING THE ROD CONNECTOR STEP 4 - PLACING CARRIERS & END STOPS Adding or Removing Carriers to the Rod Depending on your order, you may CARRIERS ROD CONNECTOR have received a rod connector. Your track rod will come with all master carriers and regular carriers pre-installed.

  • Page 6: Step 5 - Attaching Bracket Posts

    STEP 5 - ATTACHING BRACKET POSTS STEP 6 - ATTACHING FINIALS Insert the mounting posts into the MOUNTING END CAP FINIALS POST Slide in End Cap onto rod and tighten CHANNELS channel in the back of the track. MOUNTING set screw. Do not tighten at this time.

  • Page 7: Step 7 - Attaching Bracket Posts To Bracket Bases

    STEP 7 - ATTACHING BRACKET POSTS TO BRACKET BASES STEP 8 - ATTACHING DRAPERY TO ROD Align the mounting posts in the back Insert drapery pin hooks into carriers of the track with the brackets mount- and master carriers. ed to the wall. Slide the mounting posts MOUNTING Split Drapery onto the brackets but don’t tighten.

  • Page 8: Care & Cleaning

    ACCESSORIES CARE & CLEANING Baton/Wand (optional) Minimal care and cleaning is needed to maintain the beauty of your Hardware. Baton/Wand will be pre-attached to To Vacuum: Use brush or dust head attachment. the master carrier(s). To Dust: Use soft, clean cloth. CLIP BATON/ WAND...
