SORG Jump alpha Service Record page 14

3.1 Assembly group wheels
(1+2) Assembly of track compensation:
pos.- count description
nr.
1 1 Screwed M18*1, d=12
2 1 reinforcement axle plate
3a 2 fall-in-track disc 0,5°
3b 2 fall-in-track disc 1,0°
4 2 locking washer S18
5 2 nut M18x1 SW24
For Vector and Jump beta 8 ° camber, as well as Jump alpha 5 ° and 8 ° camber, a spacer block
for wheelbase extension is required (spare part). Here, the toe is already integrated in the broa-
dening.
Which disc has to be used at which setting:
Camber Without seat tilt
0° without track disc
2° without track disc
4-8° without track disc
Camber Normal seat tilt (ca. 5°)
0° without track disc
2° without track disc
4-8° track disc with 0,5°
Camber Strong seat tilt
0° without track disc
2° track disc with 0,5°
4-8° track disc with 1°
For the steering and pushing aid, at least the 0.5 ° track disc must always be mounted
(except for a camber of 0 ° in which no track disc is used).
14 of 36

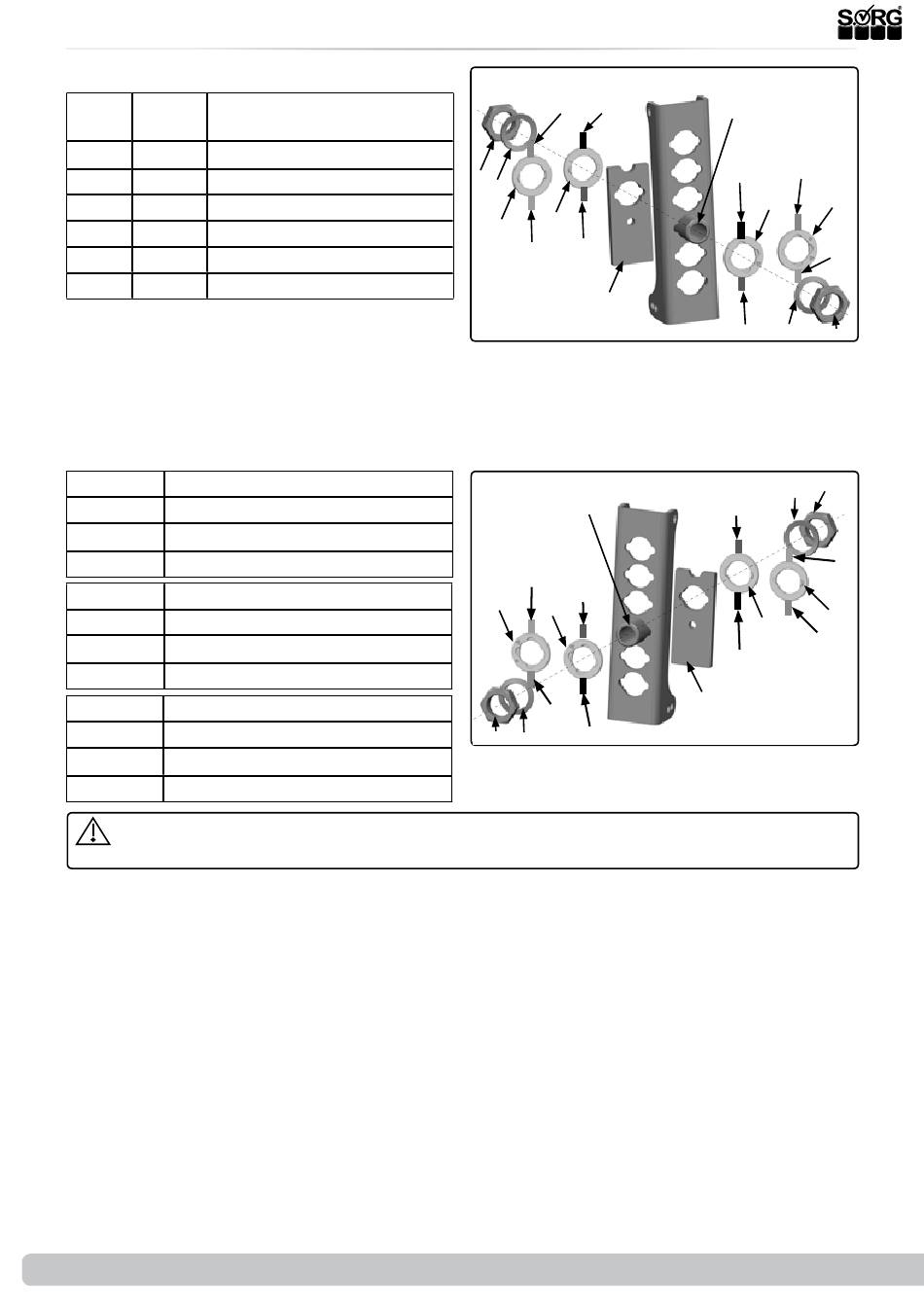

(1)
Illustration shows the mounting on the right
blue black
5
1°
4
3a
3b
red
(2)
Illustration shows the mounting on the left
red
3b
3a
1°
blue
5
4
Service Record Jump alpha
1
0,5°
black
green
0,5°
2
green
green
1
0,5°
green
black
0,5°
2
black
blue
3b
3a
1°
rot
4
5
5
4
red
1°
3b
3a
blue
