System Menu

SYSTEM MENU

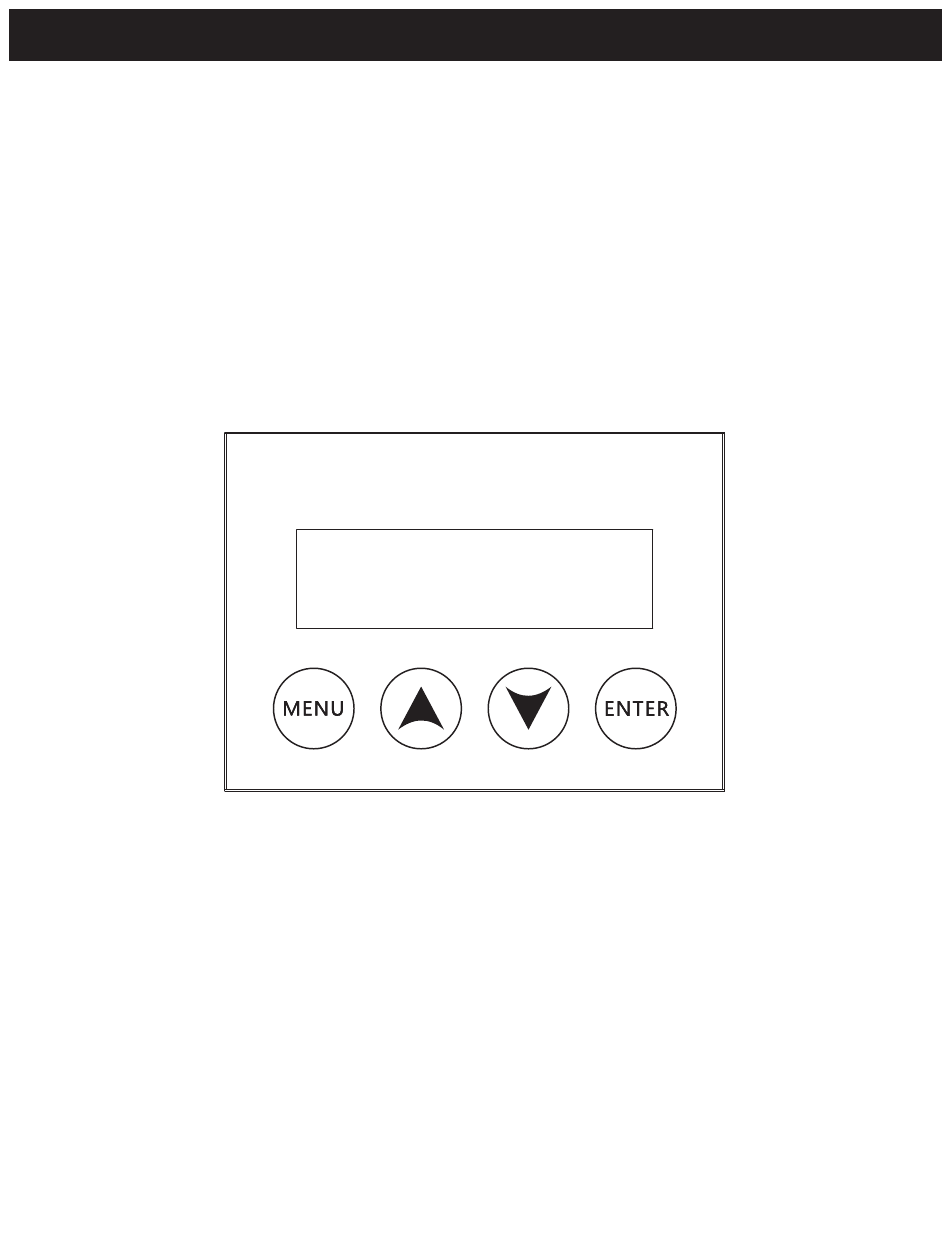

The fixture includes an easy to navigate system menu control panel display where all necessary
settings and adjustments are made. (See image below) During normal operation, pressing the MENU
button once will access the fixture's main menu. Once in the main menu, you can navigate through
the different functions and access the sub-menus with the UP and DOWN buttons. When you reach
a field that requires adjusting, press the ENTER button to access that field and use the UP and
DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting.
You may exit the main menu at any time without making any adjustments by pressing the MENU
button.
To access the system menu when the fixture is not powered using the internal battery, press
and hold the OFFLINE SETTING button to illuminate the LCD screen until SETUP is displayed.
Use the control buttons to navigate to your desired menus.
ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 14
