Summary of Contents for ADJ ALLEGRO Z6

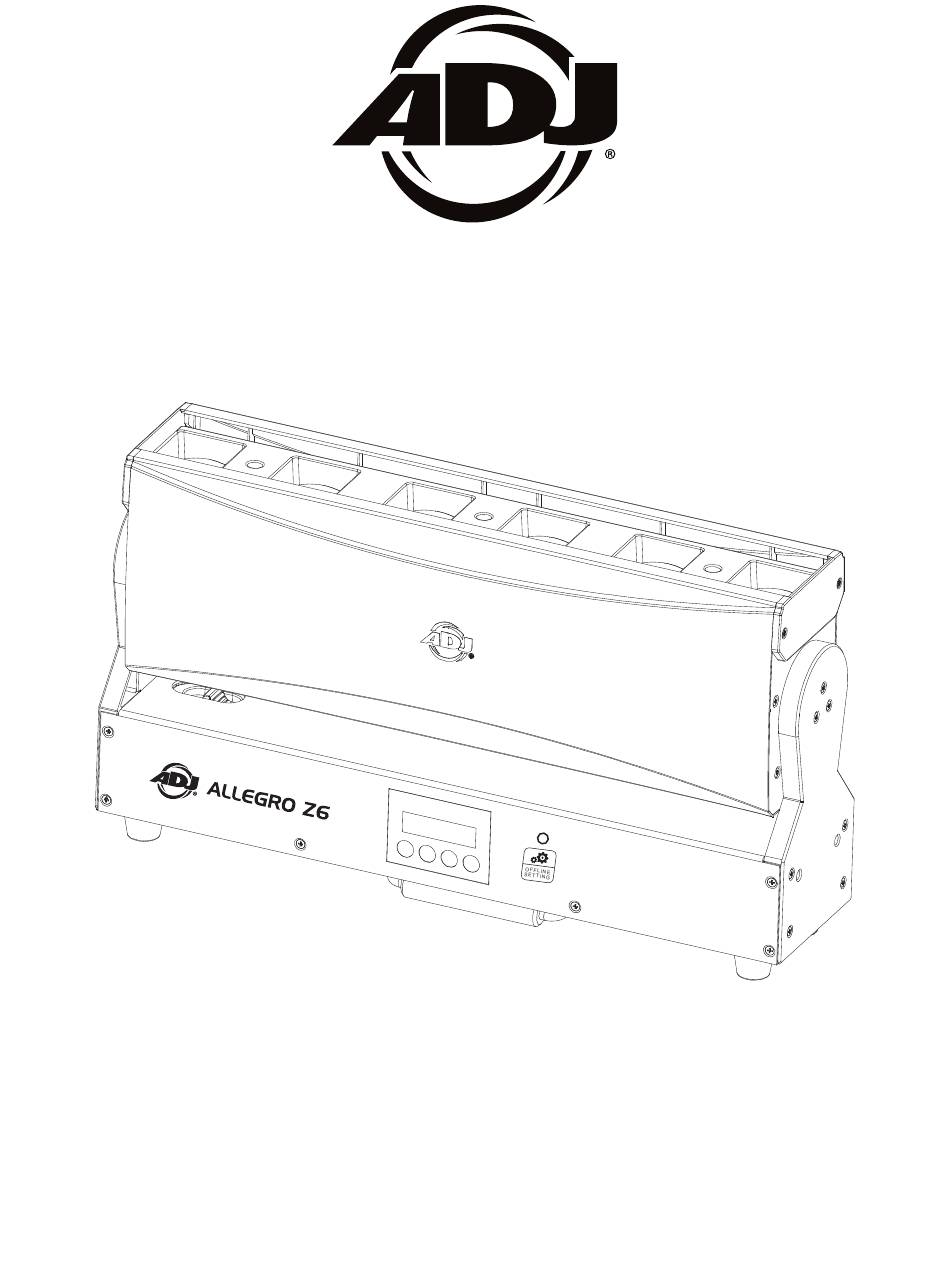

- Page 1 ALLEGRO Z6 User Instructions...
- Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
System Menu Pixel Control Dimmer Curve Chart Dimensional Drawings Error Codes Fuse Replacement I Multiple Unit Power Linking Trouble Shooting I Cleaning Limited Warranty (USA Only) Technical Specifications ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 2... -
Page 4: Introduction
Allegro Z6 Introduction Unpacking: Thank you for purchasing the Allegro Z6 by ADJ Products, LLC. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact. -
Page 5: Features I Warranty Registration
Allegro Z6 Warranty Registration The Allegro Z6 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Safety Guidelines
B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 5... -
Page 7: Overview
8. Tilt Lock 9. Omega Bracket Attachment Points 10. Battery Compartment 11. Safety Cable Attachment Points 12. Carrying Handle 13. Fuse AC250V/5A Battery Pack Nominal capacity:2200mAh Nominal voltage:11.1V ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 6... -
Page 8: Installation
OFFLINE SETTING The Allegro Z6 is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.). Always use and install the sup- plied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails (see next page). - Page 9 Screw one clamp each via a M12 screw and nut into the Omega bracket. Insert the quick-lock fasteners of the Omega holder’s into the respective holes on the bottom of the Allegro Z6. Tighten the quick- lock fasteners fully clockwise. Pull the safety cable through the openings located on the base and over the trussing system or a safe fixation spot.
-
Page 10: Dmx Set Up
Data Cable (DMX Cable) Requirements (For DMX Operation): The Allegro Z6 can be controlled via DMX-512 protocol. The DMX address is set on the front panel of the Allegro Z6. Your unit and your DMX controller require a standard 5-pin XLR connector for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. -
Page 11: Dmx Addressing
In the case of the Allegro Z6, when in 17 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 18 (17 + 1), the third unit to 35 (18 + 17), and so on. (See the chart below for more details.) -
Page 12: Dmx Channel Modes & Values
WHITE 6 0%-100% 000-255 MACROS 000-008 No Function 009-038 Macro 1 039-068 Macro 2 069-098 Macro 3 099-128 Macro 4 129-158 Macro 5 159-188 Macro 6 189-255 Macro 7 ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 11... - Page 13 Closed 032-063 Open 064-095 Strobing Slow-Fast 096-127 Open 128-159 Pulse Effect 160-191 Open 192-223 Random Strobing Slow-Fast 224-255 Open DIMMER 000-255 0%-100% DIMMER FINE 000-255 ZOOM 000-255 0%-100% ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 12...
- Page 14 No Function 021-040 Enable Blackout with Tilt Movement 041-060 Disable Blackout with Tilt Movement 061-080 Reset All Motors 081-100 Reset Tilt Motor 101-120 Reset Zoom Motor 121-255 No Function ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 13...
-
Page 15: System Menu
To access the system menu when the fixture is not powered using the internal battery, press and hold the OFFLINE SETTING button to illuminate the LCD screen until SETUP is displayed. Use the control buttons to navigate to your desired menus. ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 14... - Page 16 USB Port Power: ON / OFF USB Port Activation Service (PassCode = 50) Update Software Software Update Factory Restore: YES / NO - PassCode = 11 Restore Factory Settings ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 15...
- Page 17 Base Fan: XXXX Base Fan Current Speed Fan Info. (RPM) Head Fan 1: XXXX Head Fan 1 Current Speed Head Fan 2: XXXX Head Fan 2 Current Speed ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 16...
- Page 18 (3) DMX Value options depend on the DMX Channel mode setting. (4) Max Temp LED ON - Normal Operating Temperature. (5) Max Temp LED OFF - Normal Operating Temperature. ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 17...
- Page 19 - SACN SETTINGS - In this submenu you are able to set the sACN universe and sACN priority. - LOCK ETHERNET SET - In this submenu you are able to lock the Ethernet settings. ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 18...
- Page 20 MANUAL CONTROL - This menu is for manual testing and manual control. Tilt, RGBW colors, front and back colors, shutter, dimmer, zoom, dimmer modes, tilt speed, and special functions can all be tested/adjusted. ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 19...
- Page 21 - ERROR LOGS - In this submenu you are able to check any unit errors as well a clearing the error log. - SOFTWARE VERSION - Current software version is displayed. ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 20...
-
Page 22: Pixel Control
This fixture features pixel control in 37 Channel DMX Mode. See diagram below, which illustrates the specific pixel mapping order. STANDARD CONNECTION SIDE DISPLAY SIDE FLIP CONNECTION SIDE DISPLAY SIDE ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 21... -
Page 23: Dimmer Curve Chart
Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 1100 1660 Stage 2 ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 22... -
Page 24: Dimensional Drawings
Allegro Z6 Dimensional Drawings 19.6” / 500mm 4.5” / 113mm 220˚ ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 23... -
Page 25: Error Codes
Tilt :Reset Error Zoom Reset Error Fan1 errors Fan1 Errors Fan2 errors Fan2 Errors Fan3 errors Fan3 Errors Temperature Errors Temperature Errors Temperature is too high Temp is too high ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 24... -
Page 26: Fuse Replacement I Multiple Unit Power Linking
3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 25... -
Page 27: Limited Warranty (Usa Only)
ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual. -
Page 28: Technical Specifications
DMX Channels: 2 DMX Modes: 17/37 Warranty: 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change. ADJ Products, LLC - www.adj.com - Allegro Z6 User Manual Page 27...
