Inserting and Removing Data Cartridges
The relationship of the data cartridges and the DCM is shown in Figure 4-5. When
inserting and removing AIT data cartridges, the cartridges should be handled as
follows:
• The cartridge is inserted in the DCM with the cartridge window facing the top of
the magazine. Correctly installed, the data cartridge snaps into the tape slot.
• The cartridge is removed when grasped and pulled straight out of the DCM.
Cartridge door
Top of the AIT
cartridge, indicated
by the clear plastic
window
Bar code label

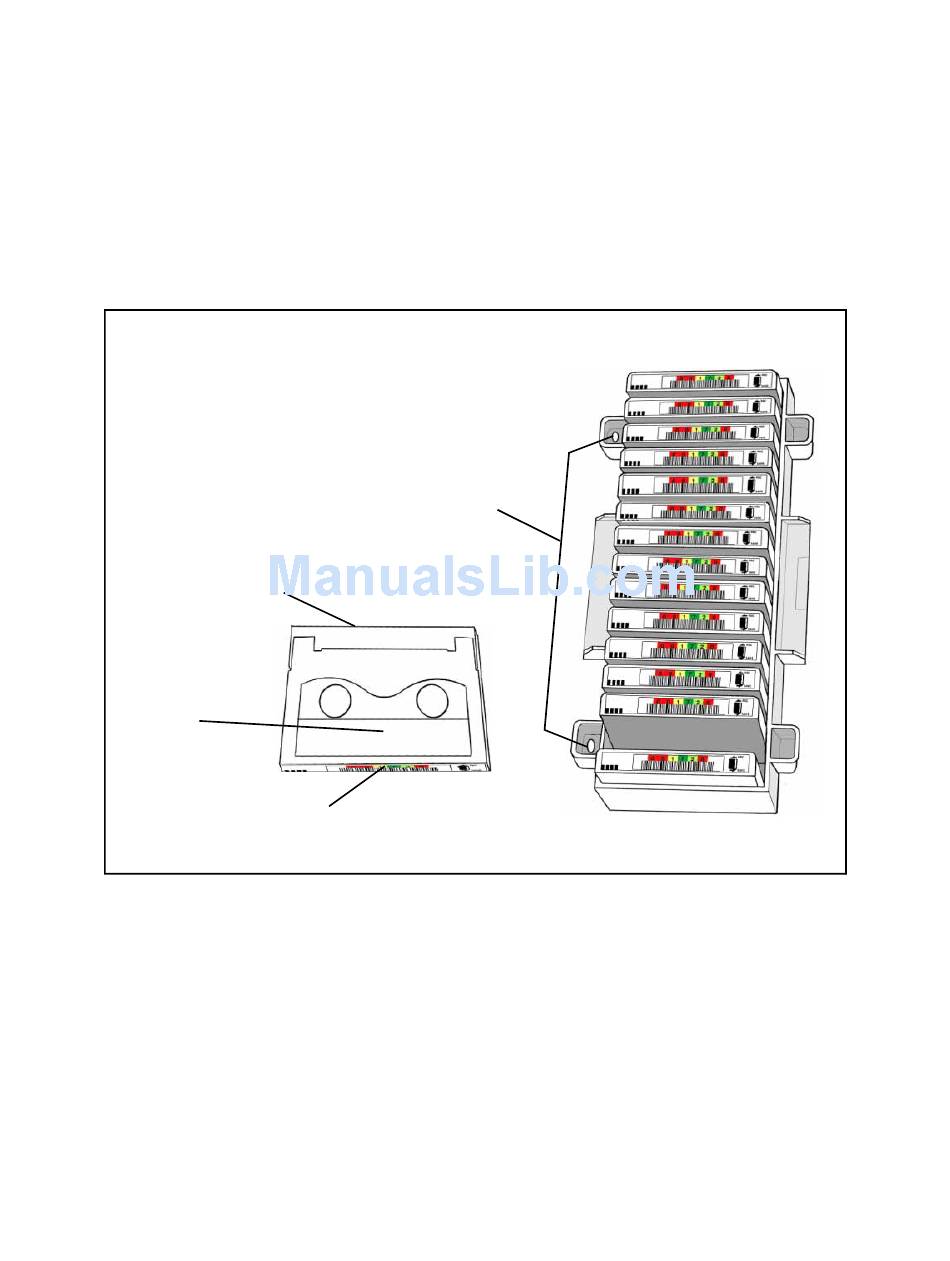

Figure 4-5 An AIT cartridge, left, and a DCM containing multiple AIT cartridges.
Chapter 4. Using the Library
Holes to left
37
Top of the DCM
Bottom of the DCM
