5. Determine the correct specifications for the SCSI terminator as described in SCSI
Terminator Requirements on page 81. Attach a SCSI terminator to the free SCSI
connector on the library, as shown in Figure 2-5.
Caution:
The SCSI bus must be terminated at both ends or unexpected
errors may result. Make sure that the SCSI adapter in the host
computer has the appropriate termination enabled.
SCSI cable

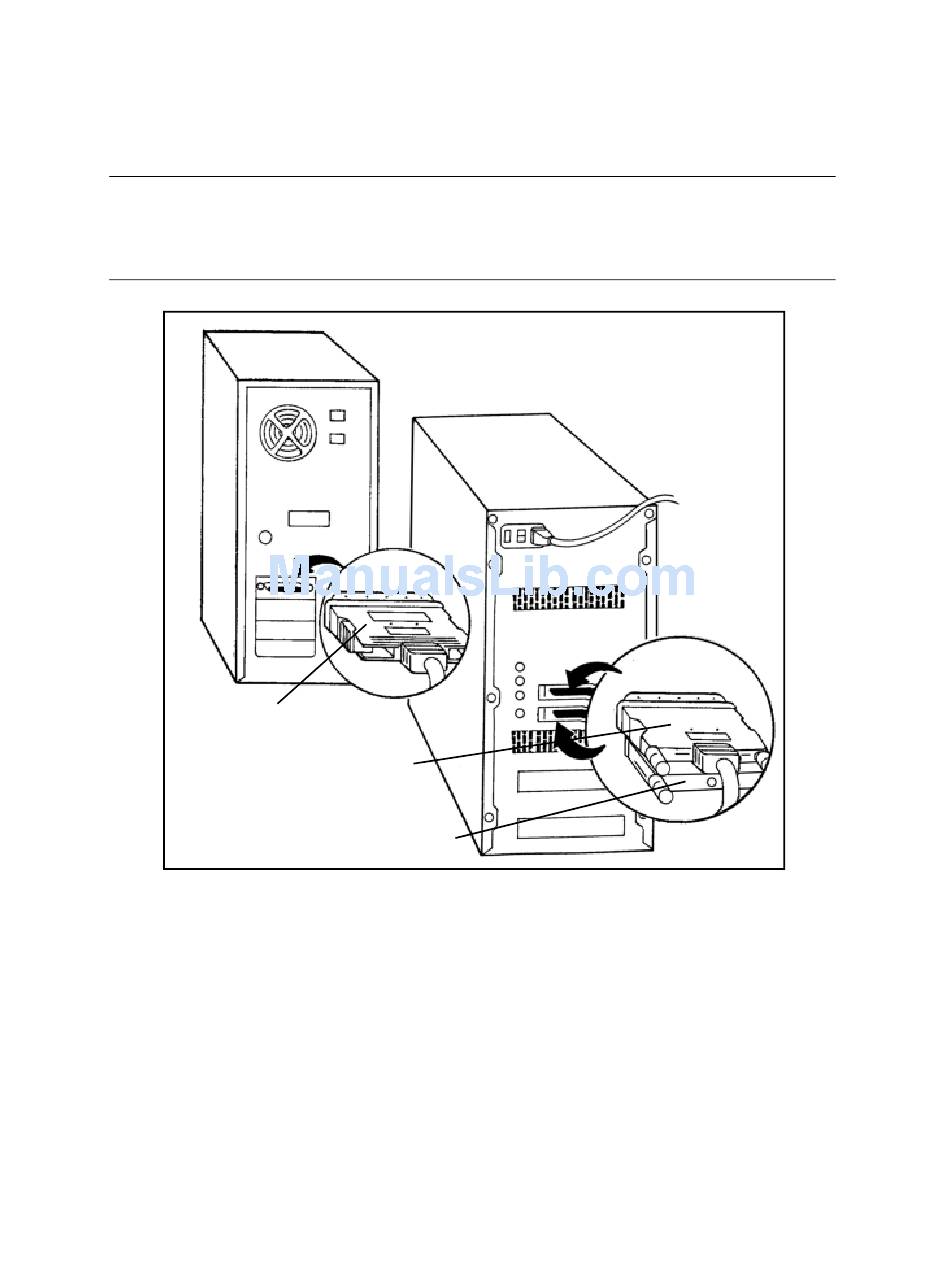

Figure 2-5 Connect the library to the host computer with the SCSI cable. Connect a SCSI terminator
to the library (as necessary).
6. To attach additional devices to the SCSI bus, continue with Attaching More than
One SCSI Device and complete any further procedures as necessary.
The SCSI card BIOS should display the following information:
SCSI ID: 1
SCSI ID: 2
SCSI ID: 3
Chapter 2. Installing the Library
Computer
SCSI cable
Terminator
Sony SDX-300C or Sony SDX-500C or Sony SDX-700C
Sony SDX-300C or Sony SDX-500C or Sony SDX-700C
(if Drive 2 is installed)
Spectra 215
17
Library
