Summary of Contents for IFM Electronic efector250 E2M250

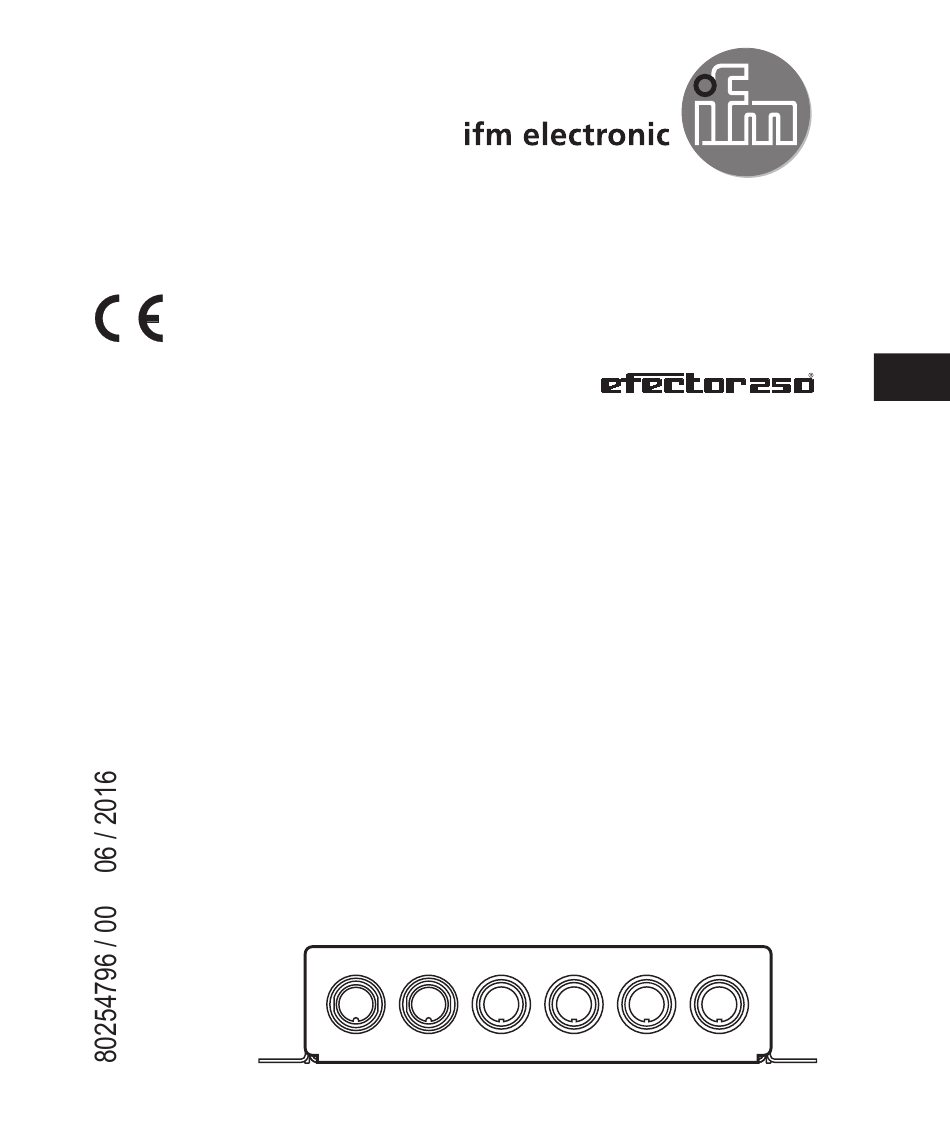

  • Page 1 Operating instructions MultiViewBox E2M250...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note �������������������������������������������������������������������������������������3 1�1 Symbols used ����������������������������������������������������������������������������������3 1�2 Warnings used ���������������������������������������������������������������������������������3 2 Safety instructions ���������������������������������������������������������������������������������4 2�1 General ��������������������������������������������������������������������������������������������4 2�2 Target group ������������������������������������������������������������������������������������4 2�3 Electrical connection ������������������������������������������������������������������������4 2�4 Tampering with the unit ��������������������������������������������������������������������5 3 Functions and features ��������������������������������������������������������������������������6 4 Items supplied����������������������������������������������������������������������������������������6 5 Accessories �������������������������������������������������������������������������������������������7 6 Installation����������������������������������������������������������������������������������������������8 7 Electrical connection ������������������������������������������������������������������������������9...
  • Page 3: Preliminary Note

    1 Preliminary note 1.1 Symbols used ► Instructions > Reaction, result […] Designation of keys, buttons or indications → Cross-reference Important note Non-compliance may result in malfunction or interference� Information Supplementary note 1.2 Warnings used CAUTION Warning of personal injury� Slight reversible injuries may result�...
  • Page 4: Safety Instructions

    2 Safety instructions 2.1 General These instructions are an integral part of the device� They contain texts and figures concerning the correct handling of the device and must be read before installation or use� Observe the operating instructions� Non-observance of the instructions, operation which is not in accordance with use as prescribed below, wrong installation or incorrect handling can seriously affect the safety of operators and machinery�...
  • Page 5: 2�4 Tampering With The Unit

    The connection terminals may only be supplied with the signals indicated in the technical data and/or on the device label and only the approved accessories of ifm electronic may be connected� 2.4 Tampering with the unit In case of malfunctions or uncertainties please contact the manufacturer�...
  • Page 6: Functions And Features

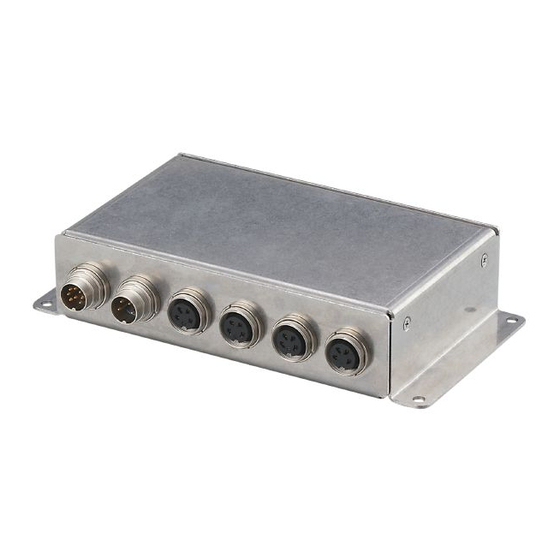

    3 Functions and features The E2M250 MultiViewBox enables the visualisation of up to 4 camera images in one process and dialogue module� The MultiViewBox summarises the PAL input signals to the camera connections C1-C4 and outputs them at the connection OUTPUT as a PAL signal� The following cameras can be connected at the connections C1-C4: •...
  • Page 7: Accessories

    5 Accessories Depending on the location and type of installation, you can use the following accessories: Article number Description CR1201 Process and dialogue module E2M203 M16 connection cable, 5 m E2M251 M16 connection cable E2M252 M16 wirable socket O2M20x Analogue camera with M16 connector The following accessories are needed for the operation of the MultiViewBox: Article number...
  • Page 8: Installation

    6 Installation CAUTION The MultiViewBox is very heavy� Risk of injury if the MultiViewBox falls to the floor� Wear safety shoes during installation� Installing the MultiViewBox: 1� Select a suitable installation location� > Do not install the MultiViewBox with connectors facing upwards� >...
  • Page 9: Electrical Connection

    7 Electrical connection 7.1 Overview of the connections Original Scale Drawing (MTD) The connections C1���C4 and OUTPUT are not short-circuit protected� Type Description Connection Chapter ① INPUT Supply (→ 7.2) connector, voltage / 8 poles controller ② OUTPUT Process and (→...
  • Page 10: 7�2 Connection Input

    7.2 Connection INPUT Connection for supply voltage / controller M16 connector, 8 poles Wiring E2M251 12 / 24 V DC white IN 1 blue IN 2 brown IN 3 white/yellow IN 4 grey not used not used not used not used 7.2.1 Control cameras The visualisation of the camera image is controlled via the pins 3 - 6 of the connection INPUT�...
  • Page 11 Visualisation of Wire grey Wire white/ Wire brown Wire blue the cameras (pin 6) yellow (pin 5) (pin 4) (pin 3) 12 / 24 V DC 12 / 24 V 12 / 24 V 12 / 24 V DC 12 / 24 V 12 / 24 V 12 / 24 V DC 12 / 24 V...
  • Page 12: 7�3 Connection Output

    7.3 Connection OUTPUT Connection for process and dialogue module M16 connector, 4 poles Coax cable core (video signal) Coax screen (video GND) not used not used 7.4 Connection C1 - C4 Connection for cameras M16 socket, 4 poles Coax cable core (video signal) Coax screen (video GND) Use the following ifm cameras only: •...
  • Page 13: 7�5 Connection And Laying Of Cables

    7.5 Connection and laying of cables ► Use screened cables from ifm: www.ifm.com → New search → e.g. E2M250 → Accessories: ► Use screened connector housings� ► Do not lay the cable parallel to live cables� ► Lay supply and signal cables away from the cameras using the shortest possible route�...
  • Page 14: 7�8 Connect Process / Dialogue Module And Cameras

    7.8 Connect process / dialogue module and cameras ► Use adapter cables and, if necessary, connection cables� Connection principle: Connect process / dialogue module CR1201 and two cameras O2M20x to the MultiViewBox Display MultiViewBox Display Cameras 1� M16 connection cable (E2M203) 2�...
  • Page 15: 7�9 Interference Due To External Influences

    Information on the integration of the camera in a CODESYS application: www.ifm.com → New search → e.g. O2M200 → Operating instructions → Short instructions → Connection of analogue cameras to the PDM360 NG process and dialogue module in CODESYS 7.9 Interference due to external influences Faulty or insufficient radio interference suppressors in electrical equipment, such as inverters or generators, as well as voltage fluctuations when switching on/off electric loads may lead to...
  • Page 16: Scale Drawing

    10 Scale drawing 333,4% EPS Source Product Scale Drawing Frame Size: 80 mm x 6...
