- Page 1 DYNAPAC CA 602 OPERATION O602EN1 Box 504, SE-371 23 Karlskrona, Sweden Telephone +46 455 30 60 00 Telefax +46 455 30 60 30 www.dynapac.com...
- Page 2 ILF015WO1...

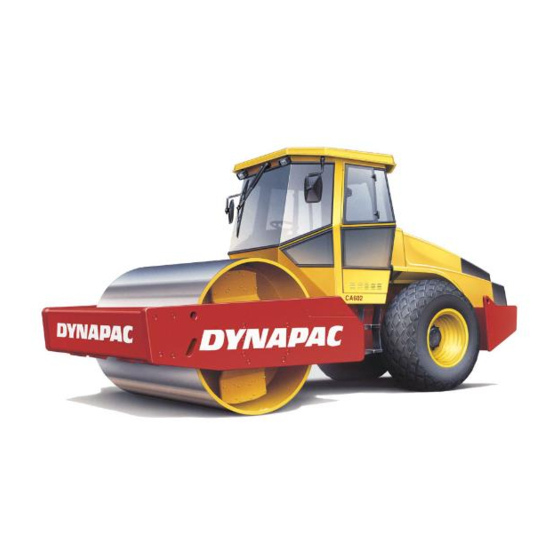

- Page 3 CA 602 PIN (S/N) *71420603* The Dynapac CA 602 is available in D (smooth drum) and PD (padfoot) versions, of which the CA 602D is designed for compacting rock fill. The main range of application for the PD versions is on cohesive material and weathered stone material.
-
Page 4: Table Of Contents
State of which implies cold hydraulic fluid, the braking California to cause cancer, birth defects, distance will be longer than normal until the and other reproductive harm. machine reaches normal working temperature. CA 602 O602EN1... -
Page 5: Safety Instructions (Read The Safety Manual Also)
17. Make no changes or modifications on the roller that could affect safety. Changes may only be made following written consent by Dynapac. 18. Do not use the roller until the hydraulic fluid has reached its normal work- ing temperature. -
Page 6: Safety When Driving
Fig. 2 Tipping angle on side slopes WARNING To leave the cab in an emergency, release the hammer located on the rear right post and break the rear window. CA 602 O602EN1... -
Page 7: Safety (Optional)
WARNING The cooling system is pressurized. Incorrect handling can result in serious personal injury. Do not disconnect the hose coupling. CAUTION Recharge the system with approved refriger- ant when required. Fig. 3 Air conditioning CA 602 O602EN1... -
Page 8: Safety Decals, Location/Description
SAFETY DECALS, LOCATION/DESCRIPTION 2, 3 CA 602 O602EN1... - Page 9 Do not touch. Alt. 1 Alt. 2 272372 904601 Mass Biological Hydraulic 903985 hydraulic fluid 904870 Tires filled with ballast. fluid Lifting plate Read the instruction manual. 903425 382751 904835 Securing Handbook Battery point compartment disconnector Emergency exit CA 602 O602EN1...
-
Page 10: Machine And Engine Plates
Int. Exh. Fuel rate at rated HP Fig. 6 Engine Date of MFG. Firing Order Made in Great Britain. 1. Engine plate 3284907 Rated HP/KW 2. EPA sign (USA) CA 602 O602EN1... -
Page 11: Instruments And Controls
39. Forward/Reverse lever 13. Engine revs/Vibration frequency 27. Brake warning lamp 40. Horn 14. Compaction meter/ 28. Warning lamp, engine oil pressure 41. Anti-spin function Speedometer (see item 21) 29. Warning lamp, hydraulic filter 15. Fuel gauge = Optional CA 602 O602EN1... -
Page 12: Instruments And Controls, Functional Description
Normally 12–15 volt. Temperature gauge, Indicates temperature of hydraulic fluid. hydraulic fluid, (Optional) Normal temperature range 65°C to 80°C (149°F to 176°F). Stop the engine if the meter reading exceeds 85°C (185°F). Locate and remedy the fault. CA 602 O602EN1... - Page 13 Stop the engine. Rev selector, diesel engine Idling revs 1500 = Revs for loading/unloading 2200 = Working and transport revs Amplitude selector Left mode gives low amplitude. Right mode gives high amplitude. Vibration switched OFF in O mode. CA 602 O602EN1...
- Page 14 Transport speed (High) Working speed (Low) Reserve brake/Parking brake Push in to activate the reserve brake. Parking brake is applied if pushed in when machine is stationary. Both brakes are released when STOP knob is pulled out. CA 602 O602EN1...
- Page 15 Horn, switch Press to sound the horn. Anti-spin function Set the knob to the left for forward anti-spin function. Set the knob in the middle for reverse anti-spin function. Set the knob to the right for transport driving. CA 602 O602EN1...
-
Page 16: Controls In The Cab
CONTROLS IN THE CAB 1 2 3 Fig. 8a Cab roof, front Fig. 8b Cab, right side Fig. 8c Cab, right side (with AC option) Fig. 8e Cab roof, rear Fig. 8d Cab, rear CA 602 O602EN1... -
Page 17: Controls In The Cab, Functional Description
Air conditioning switch Starts and stops the air conditioner. Handbook compartment Stowage space for safety manual and operator’s manuals. Hammer for emergency To evacuate the cab in an emergency, re evacuation lease the hammer and break the REAR window. CA 602 O602EN1... -
Page 18: Before Starting
• Cushioning to suit weight of operator (5). wheel WARNING 3. Locking lever - length adjustment Always make sure that the seat is secure 4. Lever - seat back slope before beginning operation. 5. Lever - weight adjustment CA 602 O602EN1... - Page 19 This will occur regardless of whether the forward/reverse lever is in neutral or the drive mode. The engine will not stop if the parking brake is activated. Fig. 14 Controls panel 37. Reserve/Parking brake knob CA 602 O602EN1...
- Page 20 4. Anti-slip Field of view Before starting, make sure that the field of view is unobstructed, both in front and behind. All cab windows must be clean and rearview mirrors properly adjusted. Fig. 16 Field of view CA 602 O602EN1...
-
Page 21: Starting
Fig. 18 Instrument panel adequate if the engine is run indoors. ie, 1. Starter switch danger of carbon monoxide poisoning. 10. Voltmeter (Optional) 23. Revs control 24. Amplitude selector 27. Brake lamp 28. Oil pressure lamp 31. Charging lamp CA 602 O602EN1... -
Page 22: Driving
(at full engine revs), the main filter must then be cleaned or replaced, see Maintenance Manual. Fig. 21 Instrument panel 11. Temperature, hydraulic fluid (Optional) 12. Temperature, engine oil (Optional) 30. Warning lamp, air filter CA 602 O602EN1... -
Page 23: Driving On Difficult Courses
If the tires spins, turn the drum drive to low and the rear axle to high. As soon as the machine regains its grip, turn the speed selectors to their initial positions. Fig. 24 Control panel 35. Speed selector, drum 36. Speed selector, rear axle CA 602 O602EN1... -
Page 24: Braking
Turn the starter switch (1) to position O. Lower the instrument cover (on rollers without cab) and lock it. 26-34 Fig. 27 Instrument panel 1. Starter switch 26-34. Warning lamp panel CA 602 O602EN1... -
Page 25: Parking
This will prevent discharging of the battery and will also make it difficult for any unauthorized person to start and drive the machine. Also lock the engine compartment cover. Fig. 29 Tractor frame, rear left 1. Battery disconnecter CA 602 O602EN1... -
Page 26: Instructions For Lifting
(2) fitted with a wire, to secure the locking stud (3). The locking lug (4) is located on the tractor frame. Fig. 32 Articulation in open mode 1. Locking arm 2. Locking cotter 3. Locking stud 4. Locking lug CA 602 O602EN1... -
Page 27: Instructions For Towing
(4) by hand until resistance increases, and then one additional turn. The adjustment screws are located on the rear axle, two screws on each side of the differential housing. Fig. 34 Rear axle 3. Locknut 4. Adjusting screw CA 602 O602EN1... - Page 28 34 mm (1.34 in) from the contact surface, and tighten the locknuts (3). Loosen the drum brake screws (5). Fig. 35 Drum brake 5. Screw Normal position Brake active Towing mode Brake disengaged Fig. 36 Drum brake 5. Screw CA 602 O602EN1...
-
Page 29: Towing/Retrieval
Clamp down the roller with lashing strap (3) at all four corners; decals indicate the fixing points. Fig. 38 Transportation CAUTION Remember to restore the articulation interlock 1. Chocks 2. Supporting blocks to its open mode before starting the roller 3. Lashing wire again. CA 602 O602EN1... -
Page 30: Operating Instructions - Summary
Push in the reserve/parking brake knob. Stop the engine and chock the drums. 15. Lifting: – See the operation manual. 16. Towing: – See the operation manual. 17. Transport: – See the operation manual. 18. Retrieval: – See the operation manual. CA 602 O602EN1...
