SOMFY Axovia Series Programmation Tips

Programmation tips

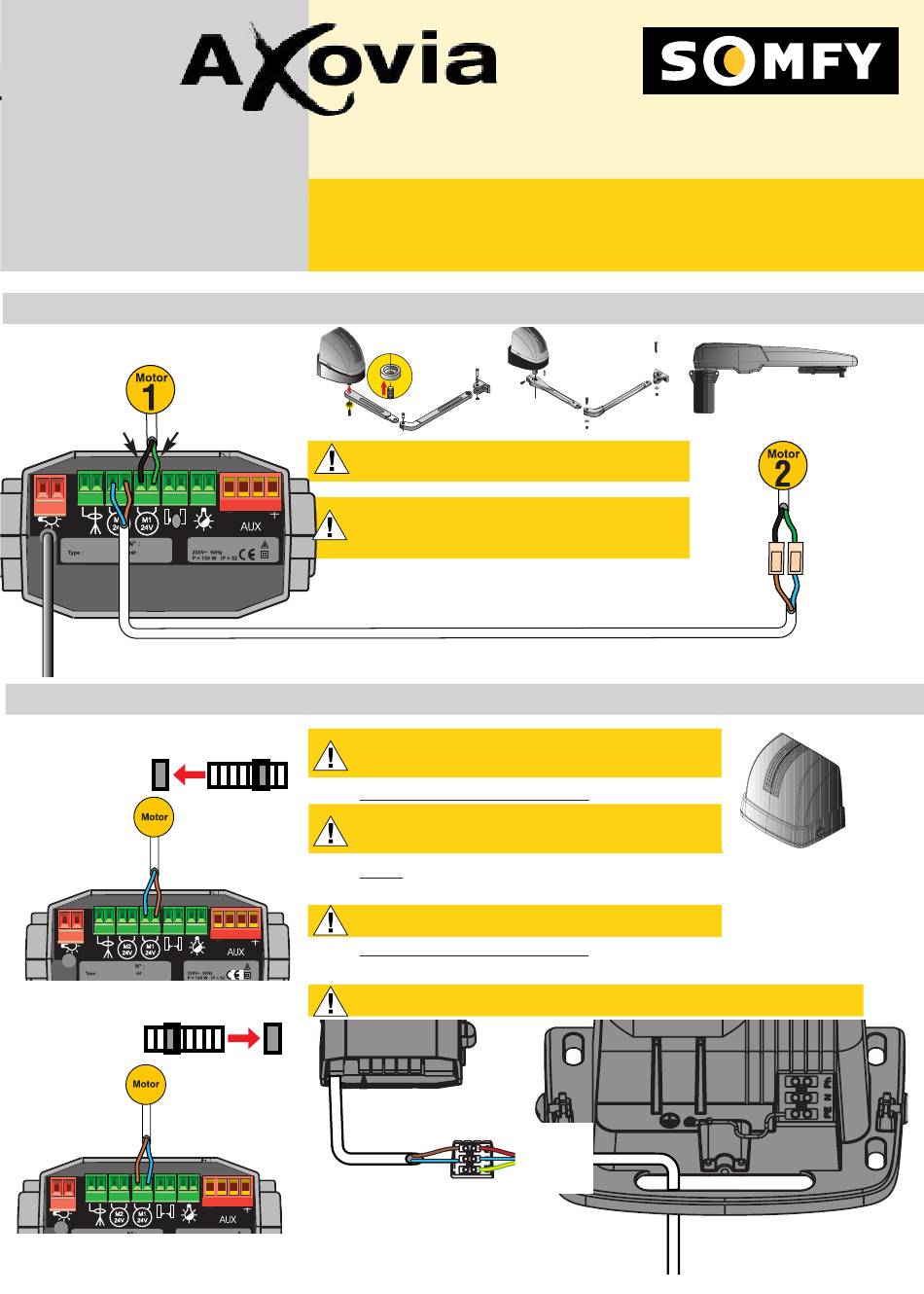

Connecting motors Axovia 200A, 250A, 150S.

black green
Blue Brown
Power supply 230V

Connecting motors Axovia 400C

Motor on the right seen from inside.
Blue or black Brown or
green
Motor on the left seen from inside.
Brown or Blue or
Green black
AXOVIA 150S
AXOVIA 250A
M1 is always the motors who start the first.
Screw the wires of the motor cable onto the
connector, comply with the colors.
2 x 1 mm 2 mini - 7m maxi
It's essential to turn off the power supply at
the circuit breaker before working on the AXOVIA
Internal manual unlocking:
Open the cover, disconnect the motor M1 from the
electronics pull on the gate to open it.
Motor
Click the motor into slot M1
Comply with the colors
Electronic / main power supply
Connect the mains power supply wires to the connection bar.
Comply with the phase, neutral and earth configurations.
Brown or
Green
Blue or
Black
AXOVIA 200A
AXOVIA 400C
Phase
Neutral
Earth
®
black green
brown blue
