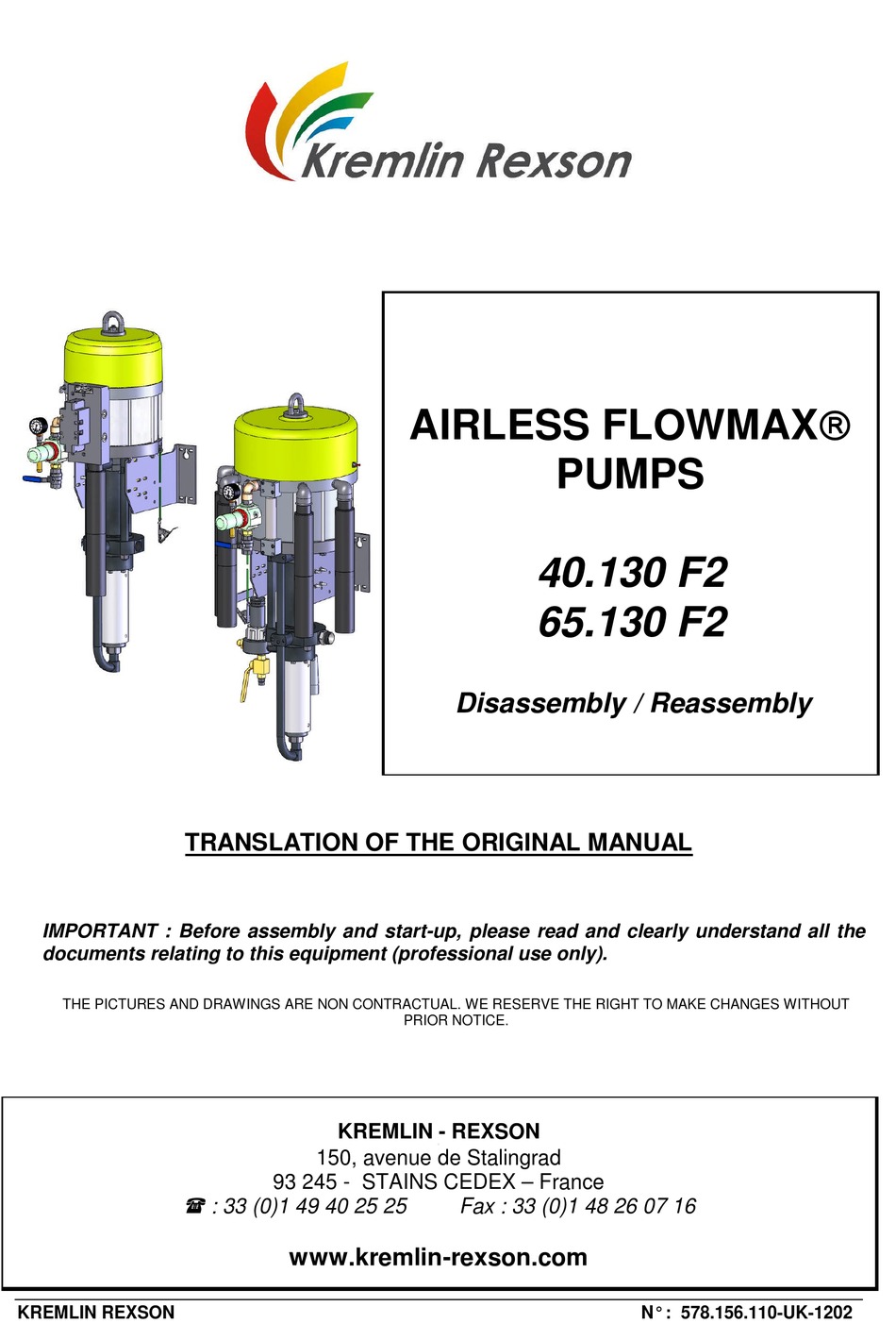

TRANSLATION OF THE ORIGINAL MANUAL
IMPORTANT : Before assembly and start-up, please read and clearly understand all the
documents relating to this equipment (professional use only).
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT
 : 33 (0)1 49 40 25 25
KREMLIN REXSON
AIRLESS FLOWMAX
PRIOR NOTICE.
KREMLIN - REXSON
l
150, avenue de Stalingrad
93 245 - STAINS CEDEX – France
www.kremlin-rexson.com
PUMPS
40.130 F2
65.130 F2
Disassembly / Reassembly
Fax : 33 (0)1 48 26 07 16
N° : 578.156.110-UK-1202

Advertisement

loading
Need help?

Need help?

Do you have a question about the AIRLESS FLOWMAX 40.130 F2 and is the answer not in the manual?

Questions and answers

Related Manuals for Kremlin-Rexson AIRLESS FLOWMAX 40.130 F2

Summary of Contents for Kremlin-Rexson AIRLESS FLOWMAX 40.130 F2

  • Page 1 THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.156.110-UK-1202...
  • Page 2 The pump is manufactured under the ATEX agreement and can not be modified. KREMLIN REXSON will not be held responsible for any failure to comply with that instruction.  FLUID MOTOR OR AIR MOTOR REPLACEMENT (REFER TO DOC. 573.407.050 & 573.410.050) Guards (air motor cover, coupling shields, housings …) have been designed for...

  • Page 3: Suction Valve

    (13) are installed. Lubricate them. Lubricate the inside of the cylinder (grease, type A1) and the tappings to prevent from damaging the mobile packing (grease, type A2) (refer to assembly instructions §). KREMLIN REXSON - 2 - N° : 578.156.110-UK-1202...
  • Page 4 By means of the 2 wrenches, to separate the piston (22) from the motor rod (40M) by using the flats on the motor rod and those on the base of the piston KREMLIN REXSON - 3 - N° : 578.156.110-UK-1202...
  • Page 5 Place the 3 washers and tighten the nuts (11). Reinstall the lower part of the pump (cylinder, suction valve, suction rod,…) in the reverse order of the disassembly sequence, as explained previously. KREMLIN REXSON - 4 - N° : 578.156.110-UK-1202...
  • Page 6 Separate the suction bearing (3) from the motor by removing the screws (9). Slide, then put aside the bellows-skirt-flange assembly. Remove the bellows flange (4) to take off the upper part of the bellows. Dismount the skirt (6). KREMLIN REXSON - 5 - N° : 578.156.110-UK-1202...
  • Page 7 Orientate it and tighten it on the air motor base by means of the 3 screws (9). Nota :To make easier the assembly, you can remove one of the 3 pump tie-rods (7). Couple the fluid sub-assembly (B) with the suction sub-assembly (A). KREMLIN REXSON - 6 - N° : 578.156.110-UK-1202...

  • Page 8: Air Motor

    Reinstall the new reversing-block in the reverse order of the disassembly sequence.  CAUTION : the number of spirals must equally be distributed on each fastening parts in order to get the above dimension. KREMLIN REXSON - 7 - N° : 578.156.110-UK-1202...
  • Page 9 Under normal operating and servicing conditions, with standard filled material not including foreign matters or chemically aggressive, the average working life can be estimated as : 1 million strokes for the tightness seals. 10 millions strokes for the bellows. KREMLIN REXSON - 8 - N° : 578.156.110-UK-1202...
  • Page 10 Part number 'TECHNILUB' grease (10 ml) PTFE grease 560.440.101 Graphite grease box Graphite grease 560.420.005 (1 kg / 2.204 lb) Medium strength Loctite 577 Aneorobic Pipe sealant Low strength Loctite 222 Aneorobic Adhesive KREMLIN REXSON - 9 - N° : 578.156.110-UK-1202...
