5.
Connections
5.1.
idOil sensor connected to idOil control unit

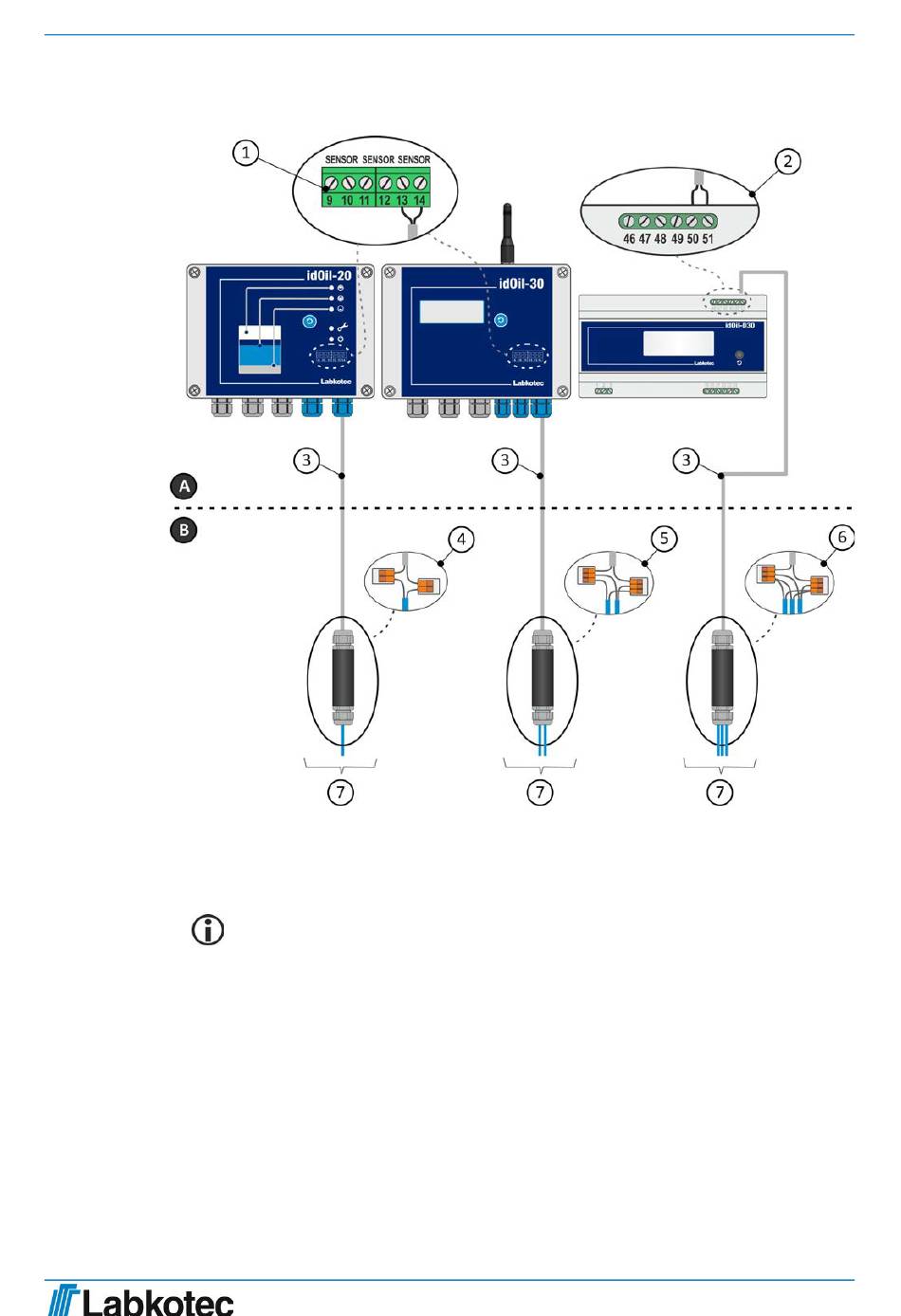

Kuva 5 . Connecting idOil sensor(s) to idOil control units
A
B
Safe area
Hazardous area
The sensor connection is polarity free digital bus connection so the sensor can
be connected to any of the sensor connectors (sensor 1, sensor 2 or sensor 3).
Also, it doesn't make any difference to which terminals of sensor connectors the
sensor wires are connected.
