5.2.
idOil-OIL sensor connected to SET control unit
The sensor of the idOil product family can be connected to the control unit of Labkotec Oy's
SET product family in place of the SET sensor. The difference is that the cable in the idOil
series sensors has no shielding and the polarity of the conductors does not matter because
the sensor connection is polarity-free.

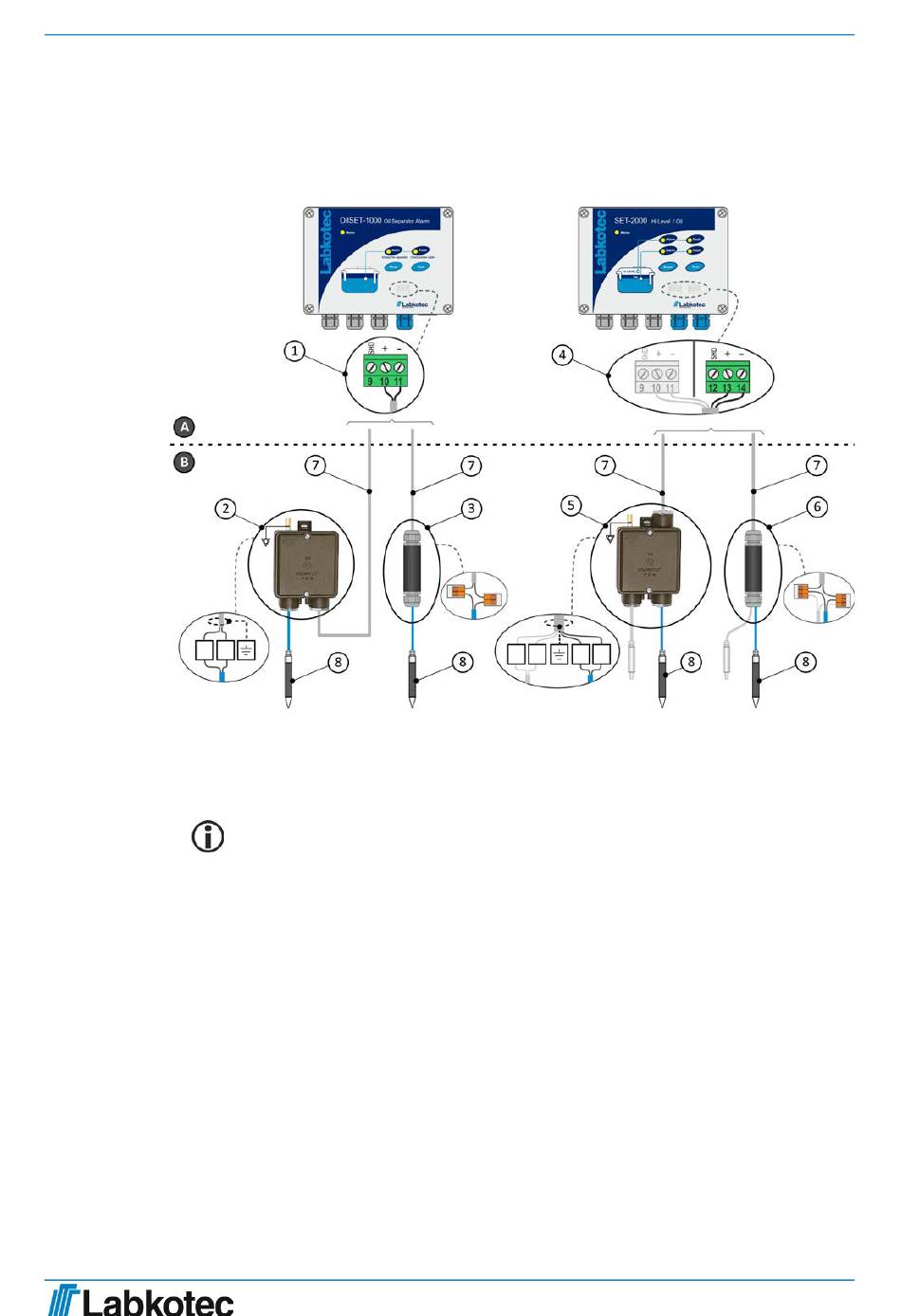

Kuva 6. Connecting idOil-OIL to SET control units
A
B
Safe area
Hazardous area
The sensor connection is polarity free so the sensor wires can be connected to
any of the sensor terminals (+ or -).
