3. CONNECTIONS AND INSTALLATION

The SET/V sensor is equipped with a shielded 2-
wire cable. The numbered wires 1 and 2 of the cable
are connected to the corresponding connectors (1 =
+, 2 = – ) in the control unit. Always check the con-
nections from the installation and operation manual
of the control unit as well.

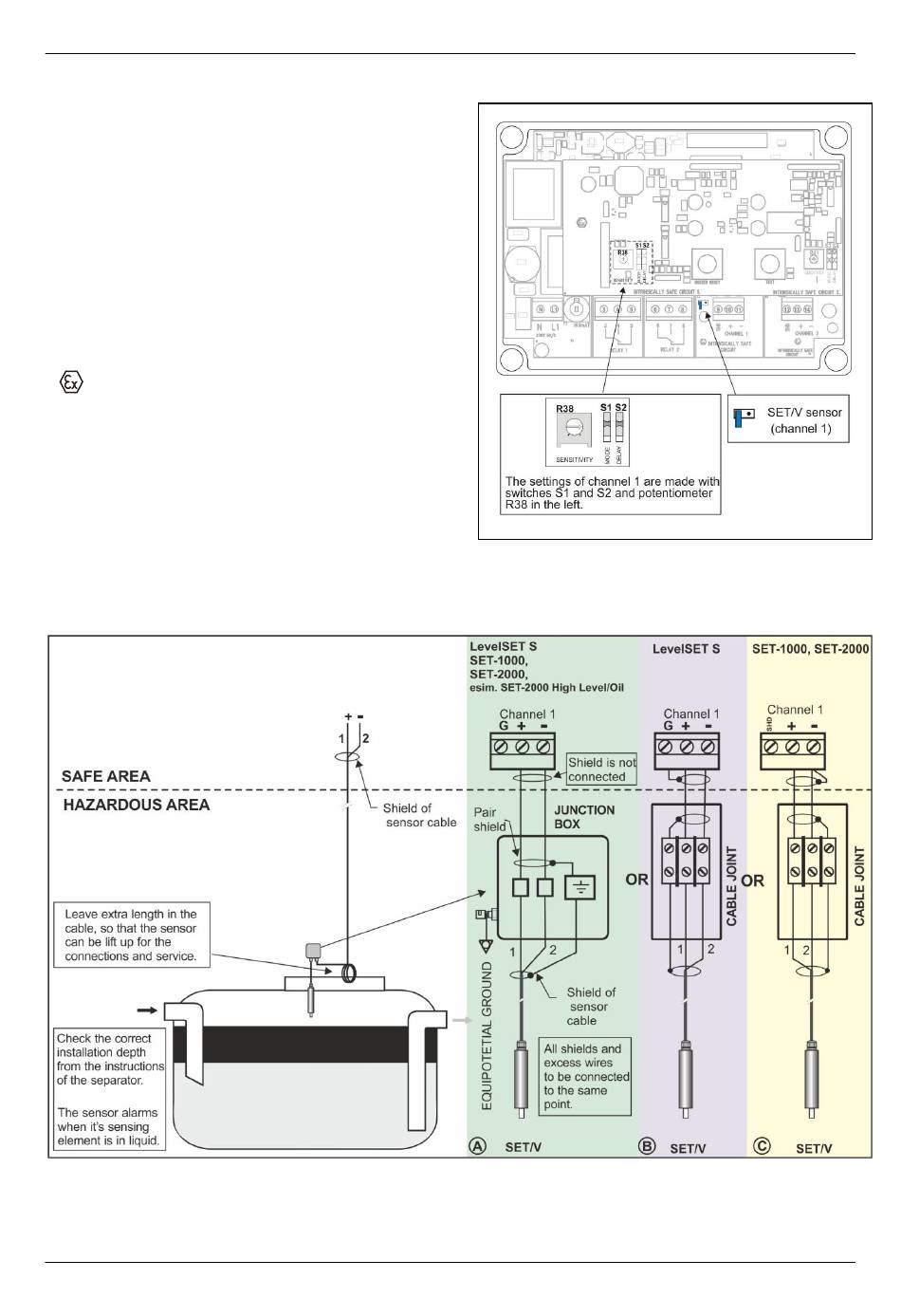

In the example shown in figure 4A, an LJB2-78-83
junction box has been used to connect the cabling
to the equipotential bonding.
In figures 4B and 4C, equipotential bonding is not
available. The shield is connected to the appropriate
connector in the supply device.
In these kinds of arrangements, it must be
ensured that the electrostatic charges do not
cause a hazard. Make sure in the installation that
the device and cabling are not close to a strong
current or other installations and that they are not
exposed to strong stream flows, mechanical
abrasions, or impacts.
The cable may be shortened or extended with a
junction box, if necessary.
The sensor is installed by hanging it from its cable at a
suitable height so that the switch data is received as
the surface level reaches the sensing element.
Figure 4. Installation example in an oil separator.
We reserve the right to any changes.
SET-1000 OR SET-2000 CONTROL UNIT:
Figure 3. Settings of SET-1000 and SET-2000
control units and selection of SET/V sensor.
3(5)
D27093AE-2
Copyright © 2019, Labkotec Oy
