Summary of Contents for Labkotec SET/V

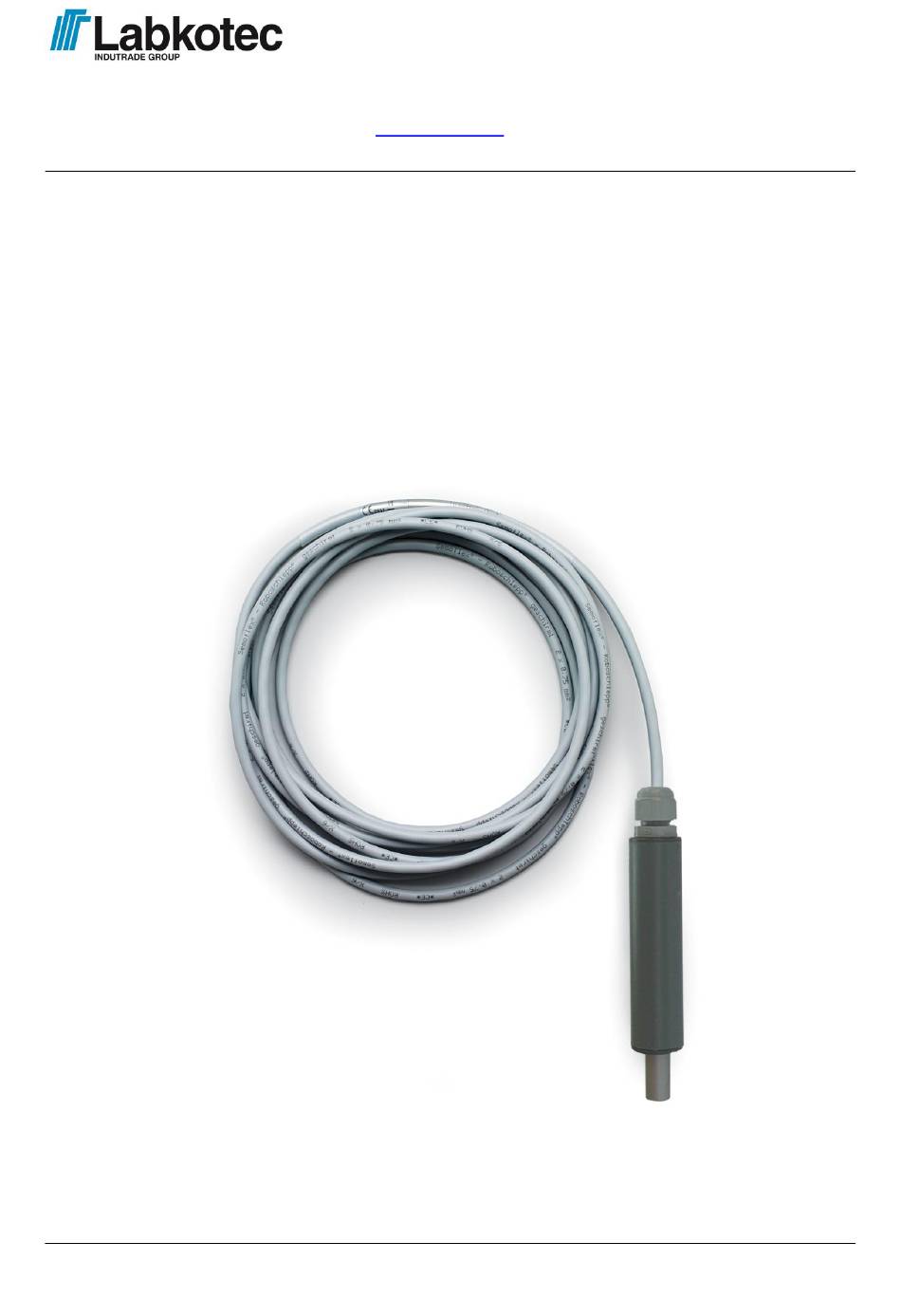

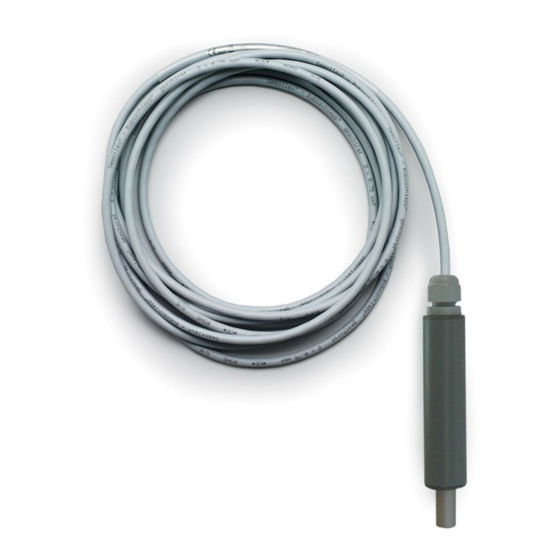

- Page 1 Labkotec Oy Myllyhaantie 6 FI-33960 PIRKKALA Tel. +358 029 006 260 Fax +358 029 006 1260 Internet: www.labkotec.fi 30.9.2019 D27093AE-2 SET/V High level sensor OPERATION AND INSTALLATION MANUAL We reserve the right to any changes. Copyright © 2019, Labkotec Oy 1(5)
-
Page 2: Technical Data
8V…16V (DC) Operating vol- tage 1. GENERAL SET/V is a level switch sensor that is to be con- Cable Shielded oil-proof cable 2 x 0.75 nected to analogical and digital SET control units of mm2. Standard length 5 m. Other Labkotec. -
Page 3: Connections And Installation
Operation and installation manual 3. CONNECTIONS AND INSTALLATION SET-1000 OR SET-2000 CONTROL UNIT: The SET/V sensor is equipped with a shielded 2- wire cable. The numbered wires 1 and 2 of the cable are connected to the corresponding connectors (1 = +, 2 = –... -
Page 4: Operation Test
The sensing element of the SET/V sensor is immersed in liquid. Also measure the output voltage of control unit. It is typically between 10 – 12 V with Labkotec Oy’s The Overfill indicator is on. SET-control units. See details from the manual of The relays are de-energized.
