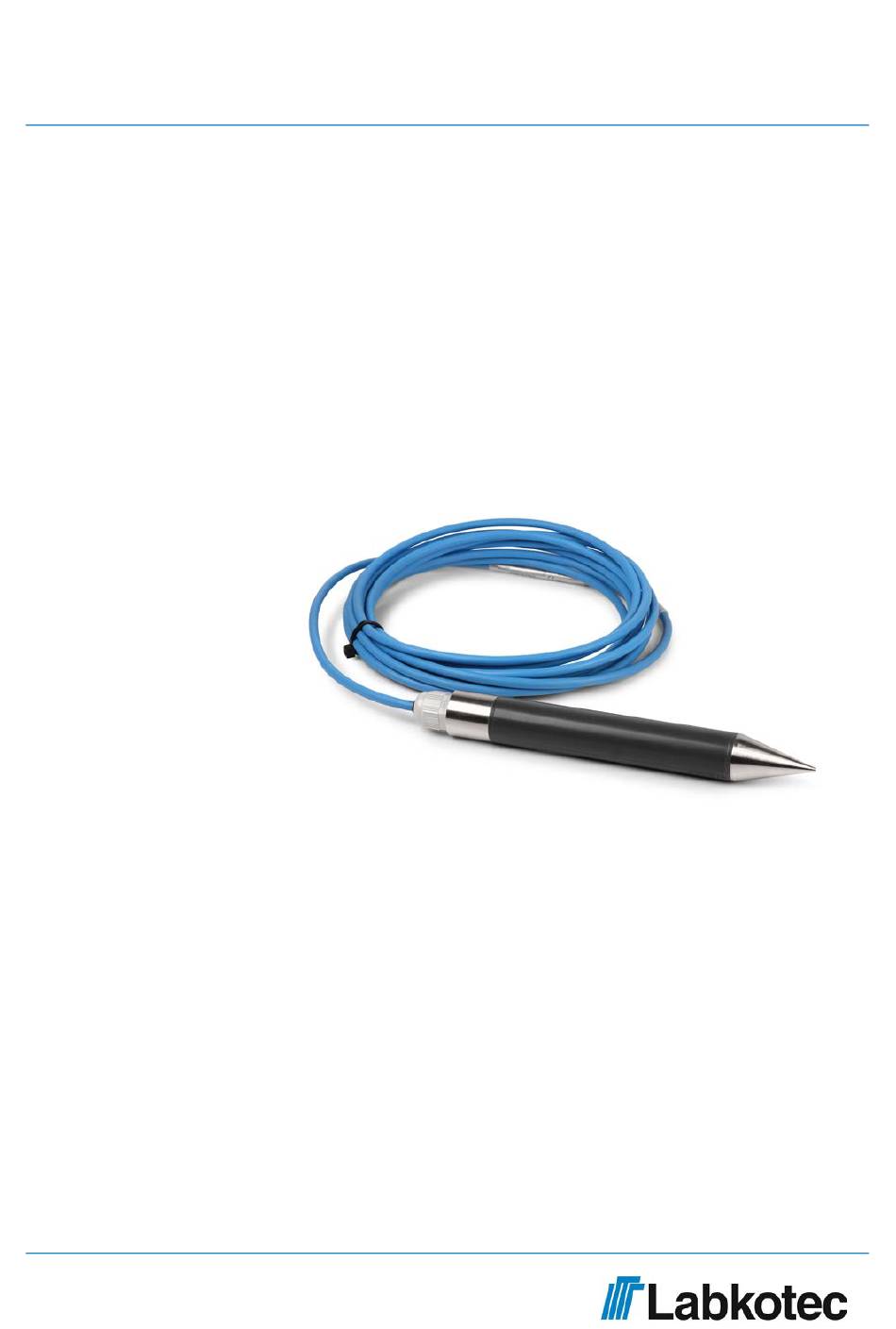

- Page 1 Installation and Operating Instructions idOil-OIL Oil sensor DOC001799-EN-1 9/11/2019...
-
Page 2: Table Of Contents
6.2. idOil-OIL sensor functional test with SET control unit ....... -
Page 3: General Information About The Manual
All of our products have been designed and manufactured with due consideration to the essential European standards, statutes and regulations. Labkotec Oy has a certified ISO 9001 quality management system and ISO 14001 environmental management system. 1.3. -
Page 4: Safety And The Environment
2.2. Intended use The idOil-OIL sensor is intended to be used in oil separators to detect when the accumulated oil in the separator has reached its maximum level. The sensor also detects if the standard liquid layer in the separator drops unexpectedly e.g. in the case of leakage. -
Page 5: Repair
Installation and Operating Instructions | idOil-OIL 5/18 Keep the original package. Always store and transport the device in the original packaging. Store the device in a clean and dry space. Observe the permitted storage temperatures. If the storage temperatures have not been presented separately, the products must be stored in conditions that are within the operating temperature range. -
Page 6: Product Description
3.1. Device operation The idOil-OIL sensor can be connected to Labkotec Oy analog (SET-1000 and SET-2000 - product family) or digital (idOil-product family) control units. The sensor issues an alarm signal when the accumulated oil layer in the separator reaches the sensor and the sensor’s measuring electrode is covered in oil. -
Page 7: Installation
Installation and Operating Instructions | idOil-OIL 7/18 Installation 4.1. General installation instructions for sensors idOil sensors can be installed in zone 0 explosive atmospheres. Do not remove the sensor markings from the cables or sensor frames. Read Section General safety instructions before installation. -
Page 8: Connections
Installation and Operating Instructions | idOil-OIL 8/18 Connections 5.1. idOil sensor connected to idOil control unit Kuva 5 . Connecting idOil sensor(s) to idOil control units Safe area Hazardous area The sensor connection is polarity free digital bus connection so the sensor can be connected to any of the sensor connectors (sensor 1, sensor 2 or sensor 3). - Page 9 Installation and Operating Instructions | idOil-OIL 9/18 Sensor connectors idOil-20, idOil-30/idOil-30 3G, idOil-30 Battery/idOil-30 Battery 3G sensor 1, connection 1 sensor 1, connection 2 sensor 2, connection 1 sensor 2, connection 2 sensor 3, connection 1 sensor 3, connection 2...
-
Page 10: Idoil-Oil Sensor Connected To Set Control Unit
SET control unit The sensor of the idOil product family can be connected to the control unit of Labkotec Oy's SET product family in place of the SET sensor. The difference is that the cable in the idOil series sensors has no shielding and the polarity of the conductors does not matter because the sensor connection is polarity-free. - Page 11 Installation and Operating Instructions | idOil-OIL 11/18 Sensor connector OilSET-1000 Shield is not connected to the control unit. Extra wires and shield must be cut and isolated carefully. Junction box LJB2-78-83 for a single sensor. Extra wires and possible shield are connected to the earthing connector of the junction box.
-
Page 12: Functional Test
You should also check the operation every time the separator is emptied or at least once every six months. 6.1. idOil-OIL sensor functional test with idOil control unit Functional test: The sensor is in the water. The control unit should be in normal mode; indicator lights are off (idOil-20) and there are no alarm notifications on the screen (idOil-30 and idOil- D30), the relays are energised and the buzzer is silent. -
Page 13: Maintenance
Installation and Operating Instructions | idOil-OIL 13/18 Maintenance The sensor should be cleaned every time the separator is emptied and at least once every six months during mantenance inspection. For cleaning the sensor you can use e.g. dishwashing detergent and brush. -
Page 14: Troubleshooting
B idOil-20, idOil-30 control unit’s sensor connectors 9–10 or 11–12 or 13–14 C idOil-D30 control unit’s sensor connectors 46–47 or 48–49 or 50–51 D idOil sensor(s) Figure 7 . Measuring sensor current; idOil control unit - idOil sensor(s) If problems occur, contact Labkotec Oy's service department. DOC001799-EN-1... -
Page 15: Idoil-Oil Sensor Troubleshooting With Set Control Unit
/ junction box. 1. Ex-classified mA current meter 2. SET-1000/2000 series control unit’s sensor connector 3. idOil-OIL sensor Figure 8 . Measuring sensor current; SET-1000/2000 control unit - idOil-OIL sensor If problems occur, contact Labkotec Oy's service department. DOC001799-EN-1... -
Page 16: Technical Specifications Idoil-Oil Oil Sensor
IEC/EN 61000-6-3 ATEX and IECEx EESF 19 ATEX 001X IECEx EESF 19.0001X Ex classification II 1 G Ex ia IIA T5 Ga (idOil-OIL) II 1 G Ex ia IIB T5 Ga (idOil-OIL-S) Special terms (X) Ta = -30°C…+60°C Exi connection values Ui = 16 V, Ii = 80 mA, Pi = 400 mW Ci <... -
Page 17: Appendix Eu Declaration Of Conformity
Installation and Operating Instructions | idOil-OIL 17/18 Appendix EU Declaration of Conformity DOC001799-EN-1... - Page 18 Installation and Operating Instructions | idOil-OIL 18/18 DOC001799-EN-1...
