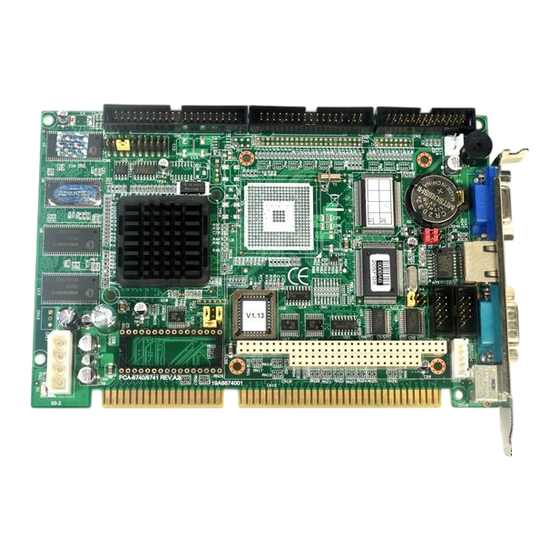

Advantech PCA-6741 Startup Manual

PCA-6741 STPC Consumer II
Half-Sized CPU Card
Startup Manual
Packing List
Before you begin installing your board, please make
sure that the following materials have been shipped:
• 1 PCA-6741 Series Half-sized CPU card
• 1 startup manual (200K674110)
• 1 utility disk/CD driver (2066000412)
• 1 hard disk drive (IDE) interface cable (40-pin)
(part no. 1701400601)
• 1 keyboard / PS2 mouse cable
(part no. 1700060202)
• 1 COM port/Parallel port cable
(part no. 1701260303)
• 1 floppy disk drive interface cable 700 mm (28")
(part no. 1701340700)
• 1 Warranty Certificate
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Note 1: For detailed contents of the PCA-6741
Series please refer to the enclosed CD-
ROM or disk (in PDF format).
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/
readstep.html
(Acrobat is a trademark of Adobe.)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our support
website at:
http://www.advantech.com/support
This manual is for the PCA-6741 series Rev.A1
Part No. 200K674110
Printed in Taiwan
Specifications
Standard SBC Functions
• CPU: STMicroelectronics STPC Consumer II 133
• BIOS: AWARD 256 KB Flash BIOS
• System memory: Onboard 32 MB SDRAM and optional
one SDRAM SODIMM socket supports up to 64 MB
• Enhanced IDE interface: Supports up to two IDE
devices. PIO mode 3,4 with bus mastering up to 14 MB/
sec.
• FDD interface: Supports up to two FDD devices
• Serial ports: One serial RS-232 port, one RS-232/422/
485 port (PCA-6741F-0CA2 only)
• Parallel port: One parallel port, supports EPP/ECP
mode
• Infrared port: One 115 K fast infrared (SIR) port, IrDA
1.1 compliant
• Keyboard/mouse connector: Mini-Din connector
supports standard PC/AT keyboard and PS/2 mouse
• Power management: APM
• Watchdog timer: 1 ~ 62 sec. System reset or IRQ11
VGA Interface
• Chipset: Consumer II Embedded
• Frame buffer: Supports 1/2/4MB frame buffer with
system memory
• Display type: Supports CRT
• CRT display mode: Non-interlaced CRT monitor
resolutions up to 1280 x 1024 @ 8 bpp or 1024 x 768 @
8 bpp
Ethernet Interface (PCA-6741F-0CA2 only)
• Chipset: RTL8139C
• Ethernet interface: PCI 10/100 Mbps Ethernet. IEEE
802.3 U protocol compatible
• Connection: On-board RJ-45 connector
• I/O address switchless setting
• Built-in boot ROM
• Supports Wake-on-Lan
Solid State Disk
• Supports DiskOnChip
1st Edition
• Supports CompactFlash™ Type I/II (optional)
Dec. 2002
®
PCA-6741 Series Startup Manual 1
