Advantech PCA-6751 Series Startup Manual

PCA-6751 Series Pentium
with VGA/LCD and Fast Ethernet
Startup Manual

Packing List

Before you begin installing your card, please make sure
that the following materials have been shipped:

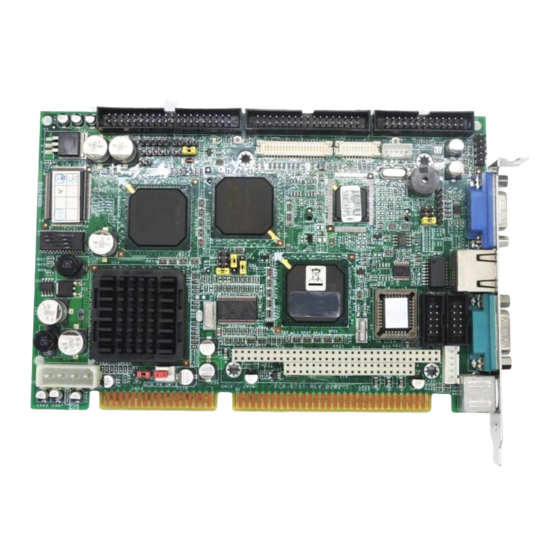

• 1 PCA-6751 all-in-one single board computer
• 1 startup manual
• 1 hard disk drive (IDE) interface cable (40-pin)
• 1 floppy disk drive interface cable (34-pin)
• 1 parallel port adapter (26-pin) and COM2 adapter
kit (9-pin)
• 1 mini-DIN keyboard & PS/2 mouse adapter (6-pin)
• 1 ATX/AT power cable and converter
• 1 warranty certificate
• 1 IrdA adapter (part no. 968900042)(optional)
• 1 USB cable (part no. 1700100170)(optional)
• CD-ROM or disks for utility, drivers, and manual (in
PDF format)
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Note 1: For detailed information on the
PCA-6751, please refer to the
enclosed CD-ROM or disk (in PDF format).
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/
readstep.html
(Acrobat is a trademark of Adobe.)
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our support
website at:
http://www.advantech.com/support
This manual is for the PCA-6751, PCA-6751V, PCA-6751L
Rev. A1 and above
Part No. 2006675122
Printed in Taiwan
®
MMX CPU card

Specifications

Standard SBC Functions
• CPU: Intel
• BIOS: AWARD 2 MB Flash BIOS, supports Plug & Play,
APM 1.2, Ethernet boot ROM, boot from CD-ROM, LS-
120, and ZIP drive
• Chipset: Intel
• L2 cache: 512 KB PB SRAM
• System memory: Two 144-pin SODIMM RAM sockets
support SDRAM memory modules 8 ~ 256 MB
• PCI IDE interface: One enhanced IDE interface
supports two IDE devices. Suppports PIO mode 3, 4
with bus mastering up to 14 MB/sec, and Ultra DMA
mode up to 33 MB/sec
• Floppy disk drive interface: Supports up to two floppy
disk drives: 3.5" (720 KB or 1.44 MB) and/or 5.25" (360
KB or 1.2 MB)
• Parallel port: One parallel port, supports
SPP/EPP/ECP mode
• Infrared port: Transmission rates up to 115 Kbps
• Serial ports: One RS-232 port, and one RS-232/422/
485 port
• Watchdog timer: Can generate a system reset or
IRQ11. Software enabled/disabled. Time interval
1 ~ 62 seconds. Jumperless with run-time setup
VGA Function
• Controller: C&T69000 or C&T69030, supports CRT
and 36-bit monitors
• Display memory: 2 MB SDRAM built-in (optional 4 MB
with C&T69030)
• Display resolution: Up to 1280 x 1024 @ 256 colors
(16 million colors @ 4 MB)
Ethernet Controller Functions (PCA-6751 only)
• Controller: Intel
10 Mbps / 100 Mbps
• I/O address switchless setting
• Connector type: RJ-45
• Boot ROM: Built-in system (optional)
Solid State Disk
3rd Edition • Supports CompactFlash™ cards
April 2000
® ®
Pentium MMX CPU 166/266 MHz
® 430 TX
® SB82558/82559/RTL8139.
PCA-6751 Series Startup Manual 1
