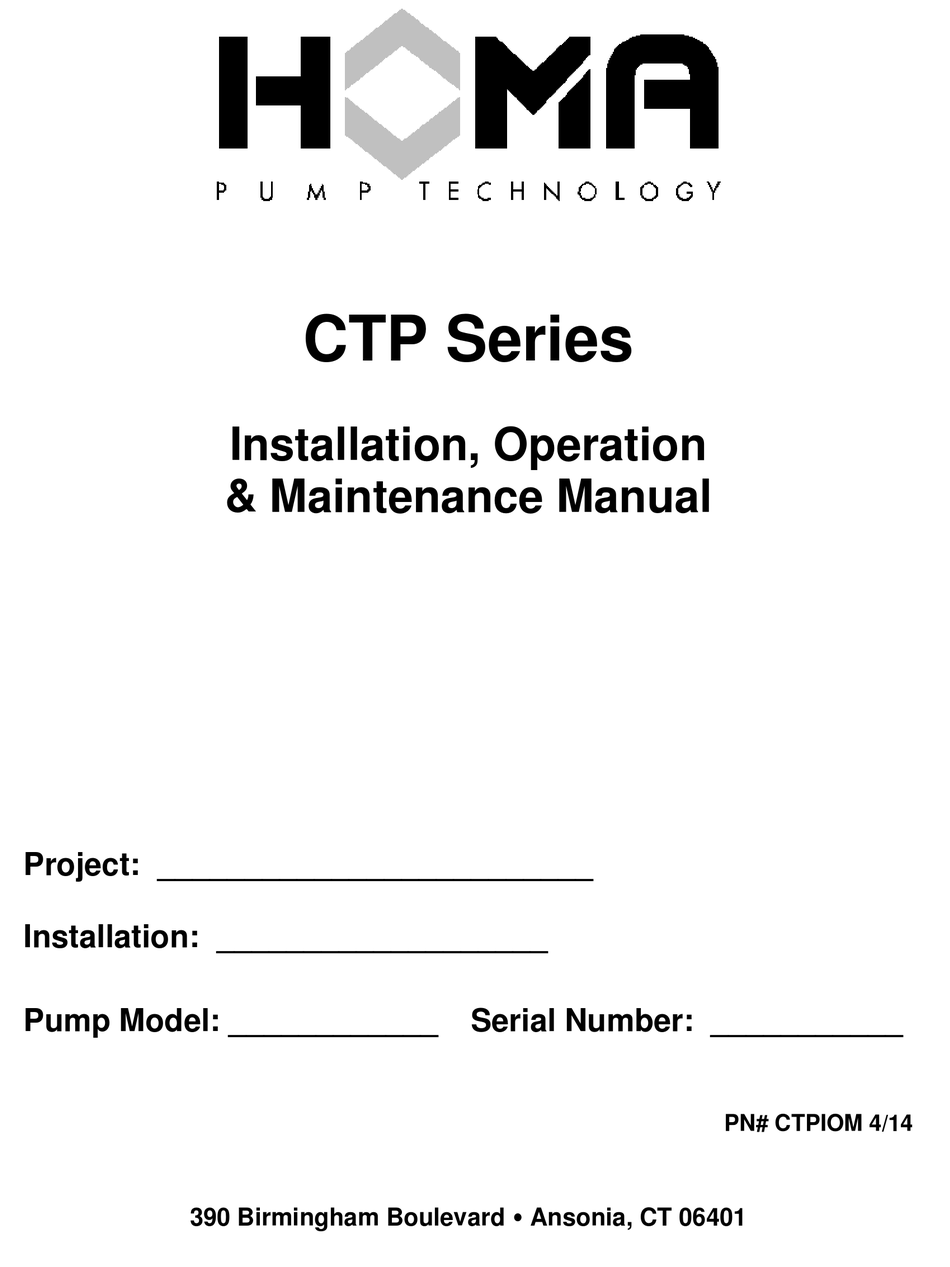

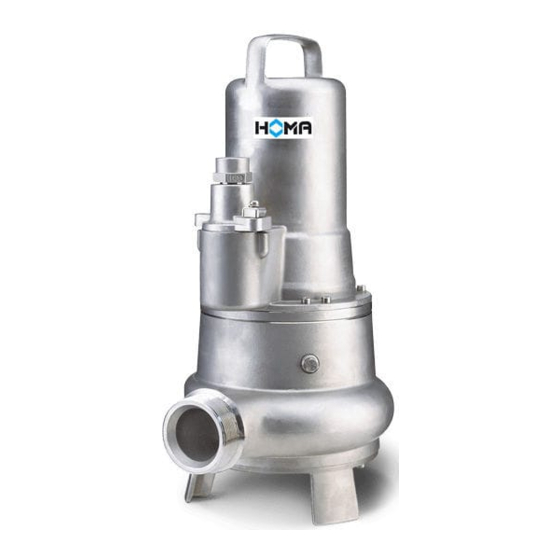

- Page 1 CTP Series Installation, Operation & Maintenance Manual Project: _________________________ Installation: ___________________ Pump Model: ____________ Serial Number: ___________ PN# CTPIOM 4/14 390 Birmingham Boulevard Ansonia, CT 06401...
-
Page 2: General Instructions
If any problems are detected contact an authorized HOMA Pump Technology SAFETY PRECAUTIONS: Representative immediately. Only trained qualified personnel shall be utilized for installation and start-up. -
Page 3: Electrical Installation
HOMA Go switch seal fail / thermal supply available at the pump station to the data relay (option) or other current regulated power on the unit's nameplate. - Page 4 SYSTEMS For all pumps, properly locate the base and with anchor bolts provided fasten to the floor of The HOMA Auto-Coupling is a quick removal the pump station. Make sure when locating and system used in keeping personnel from having securing the anchor bolts that the base will align to enter the wet well.
- Page 5 CTP Series Install lifting chain or cable of adequate size START-UP and load rating of the unit. Allow for proper length to permit proper lowering and raising Prior To Applying Power of the pump. Properly position power cables Prior to applying power to the pump; double...
- Page 6 4. Control panel circuit breaker open. or performance difficulties. 5. Actual system head is higher than calculated or specified. All HOMA pumps are factory tested, yet 6. Incorrect impeller rotation direction. startup difficulties can occur with any 7. Sump liquid level is below pump's minimum mechanical equipment.
- Page 7 3. MOTOR INSULATION RESISTANCE representative with the parts required and the Megger the insulation between the phases and pump serial number. Authentic Homa Pump between any phase and ground. The Technology parts shall be used to maintain Resistance values should be greater than 1 M warranty.
- Page 8 CTP Series PROFILE SEAL INSTALLATION IMPORTANT Black Rubber Sealing Ring (Profile Seal) must be installed in the Guide Claw before pump is installed. Ring must be installed with the large diameter lip inside the groove of the Guide Claw Flange.
- Page 9 CTP Series SEAL PROBE INSTALLATION PROCEDURE Mechanical Seal Leak Detection probe has been loose to protect from shipping damage. Please follow this procedure to install the probe. Lay pump on its side with the plug on the seal chamber facing upwards as indicated.
-
Page 10: Start-Up Report
This report is designed to insure the customer that customer service and a quality product are the number one priority with HOMA Pump Technology, Inc. Please answer the following questions completely and as accurately as possible. Mail this form to: HOMA PUMP TECHNOLOGY INC. - Page 11 Flow: Does Station Appear To Operate At Proper Rate ___________________________________ Vibration Level: Measured _____________________ Observed_____________________________ COMMENTS: _____________________________________________________________________ Equipment Difficulties During Start-Up:_________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ I Certify this Report to be accurate. Authorized Homa Service Representative: ___________________________________________________________ Phone #____________________ (Signature) DATE_______________________ Pump Station Owner/ Operator ___________________________________________________________ Phone # ____________________...
