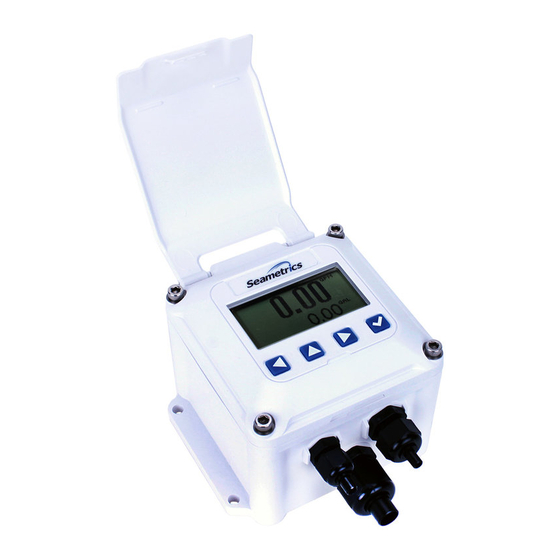

Seametrics FT430 Quick Setup Manual

The Home Screen

0.00
0
The left/right keys are used to move through the menus and position the cursor during data entry. The up arrow is
used to scroll through the available values that are to be entered. For example, numerical values for K factor entry
or selection of units from the available options. The enter key (represented on the keypad by the check mark) is
used to save selected entries and in conjunction with the exit tab to move between menus screens. As one
navigates the menus, the current parameter setting is shown and instructions are displayed for how to change the
selected parameter.

Set K Factor (SET K)

SET K R UNIT T UNIT SET D
086238.235
PRESS TO SET NUMBER
OF PULSES RECEIVED PER
GALLON OF FLOW
SET P RESET

Set Rate Display (R UNIT)

SET K R UNIT T UNIT SET D
FLOW RATE = GPD
PRESS TO SET UNITS
FOR DISPLAY
SET P RESET
The Home screen displays total flow volume and flow rate. The four buttons below the LCD
GPD
display are used to access menu screens for viewing and changing setup parameters.
MID
The K factor is the number of pulses the flow sensor provides for every gallon of flow.
(Note that the decimal is fixed at three places. If you only have two decimal places
for your K-factor, enter a zero for the third digit. If unable to set K-factor, the unit is
"locked" to prevent tampering. Please contact your distributor for assistance.)
EXIT
View or change the flow rate display units.
EXIT
FT430, 440 & 450
Quick Setup Guide
Press the check mark key to enter a submenu.
Page 1 of 2
