Magnetrol ECHOTEL 910 Instruction Manual And Replacement Parts

INSTRUCTION MANUAL AND REPLACEMENT PARTS
WARNING: NOT SUITABLE FOR USE IN AERATED/ADHESIVE PROCESSES

UNPACKING

Unpack the instrument carefully. Make sure all components
have been removed from the foam protection. Inspect all
components for damage. Report any concealed damage to
the carrier within 24 hours. Check the contents of the car-
ton/crates against the packing slip and report any discrep-
ancies to Magnetrol. Check the nameplate model number
(Model number/approvals as per inserted separate sheet) to
be sure it agrees with the packing slip and purchase order.
Check and record the serial number for future reference
when ordering parts.

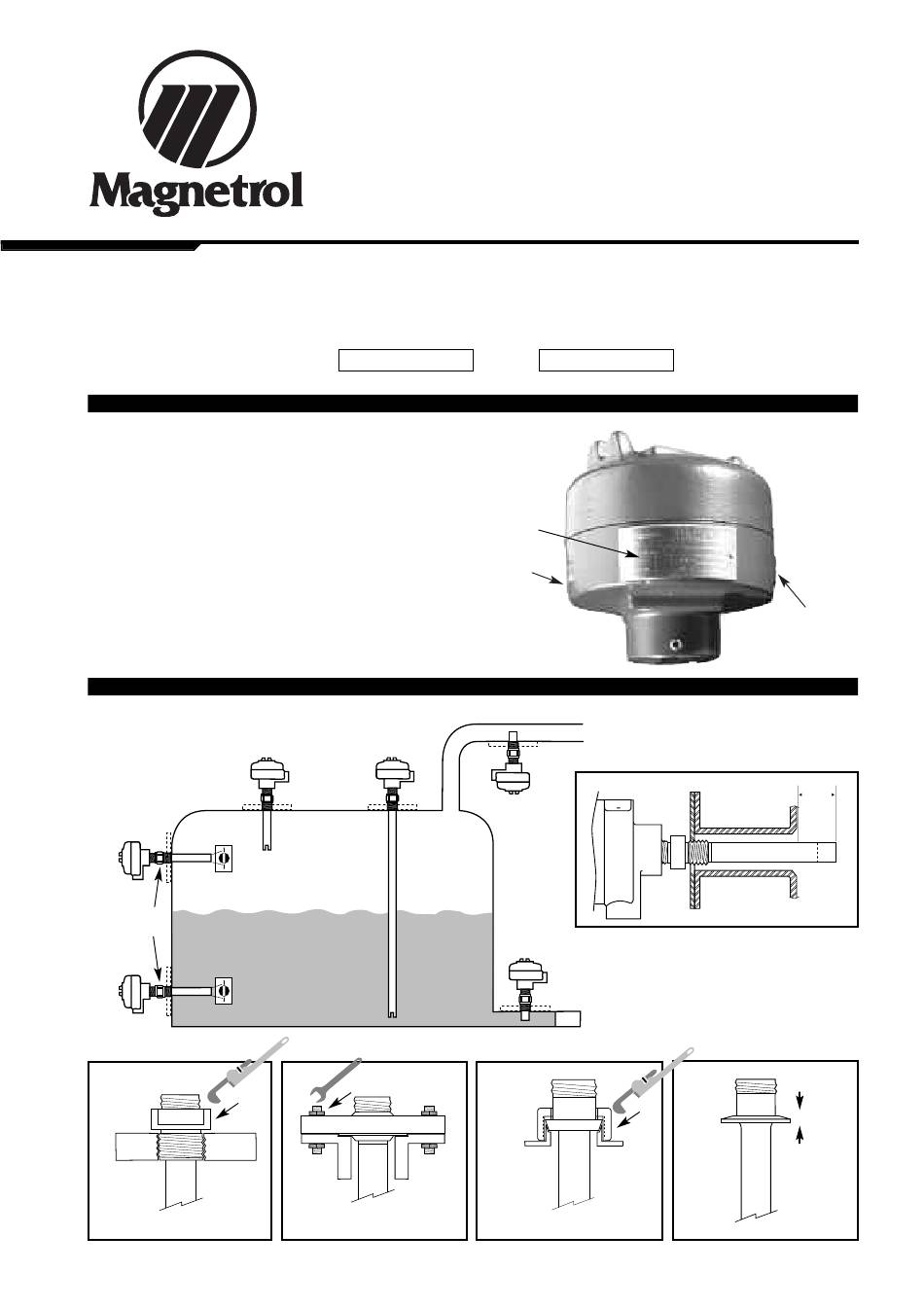

MOUNTING

Ambient temperature: -40°C (-40°F) to + 70°C (160°F)
Hi alarm
Hi alarm
Max pressure: 55 bar (200 psi) Œ Œ
Flats must
be vertical
Max temp: 120°C (250°F)
Min temp: -40°C (-40°F)
Lo alarm
@@@ @@@ @@@ @@@ @@@ @@@@ @@@@ @@@@ @@@@ @@@@
@@@ @@@ @@@ @@@ @@@ @@@@ @@@@ @@@@ @@@@ @@@@
@@@ @@@ @@@ @@@ @@@ @@@@ @@@@ @@@@ @@@@ @@@@
Threaded 1" BSP connection
®
Serial n°:..................................
Lo alarm
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @@@ @@@ @@@ @@@ @@@
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @@@ @@@ @@@ @@@ @@@
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @@@ @@@ @@@ @@@ @@@
@ @ @ @ @ @ @ @ @ @ @@@ @@@ @@@ @@@ @@@
Welded flange ANSI/DIN connection
ECHOTEL
Tip sensitive ultrasonic
level control
Tag n°:..................................
Nameplate
Tag
Filling line
Nozzle mounting: gap must be free
Pump protection
Pump
ΠΠFlanged models are downrated to the design pressure of
the selected flange
@@@@ @@@@ @@@@ @@@@ @@@@
@@@@ @@@@ @@@@ @@@@ @@@@
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @@@ @@@ @@@ @@@ @@@
@@@@ @@@@ @@@@ @@@@ @@@@ @@@ @@@ @@@ @@@ @@@
Sanitary DIN 11851 connection
® 910
Serial N°
min.
25 mm
Sanitary 3A connection
