Assembly

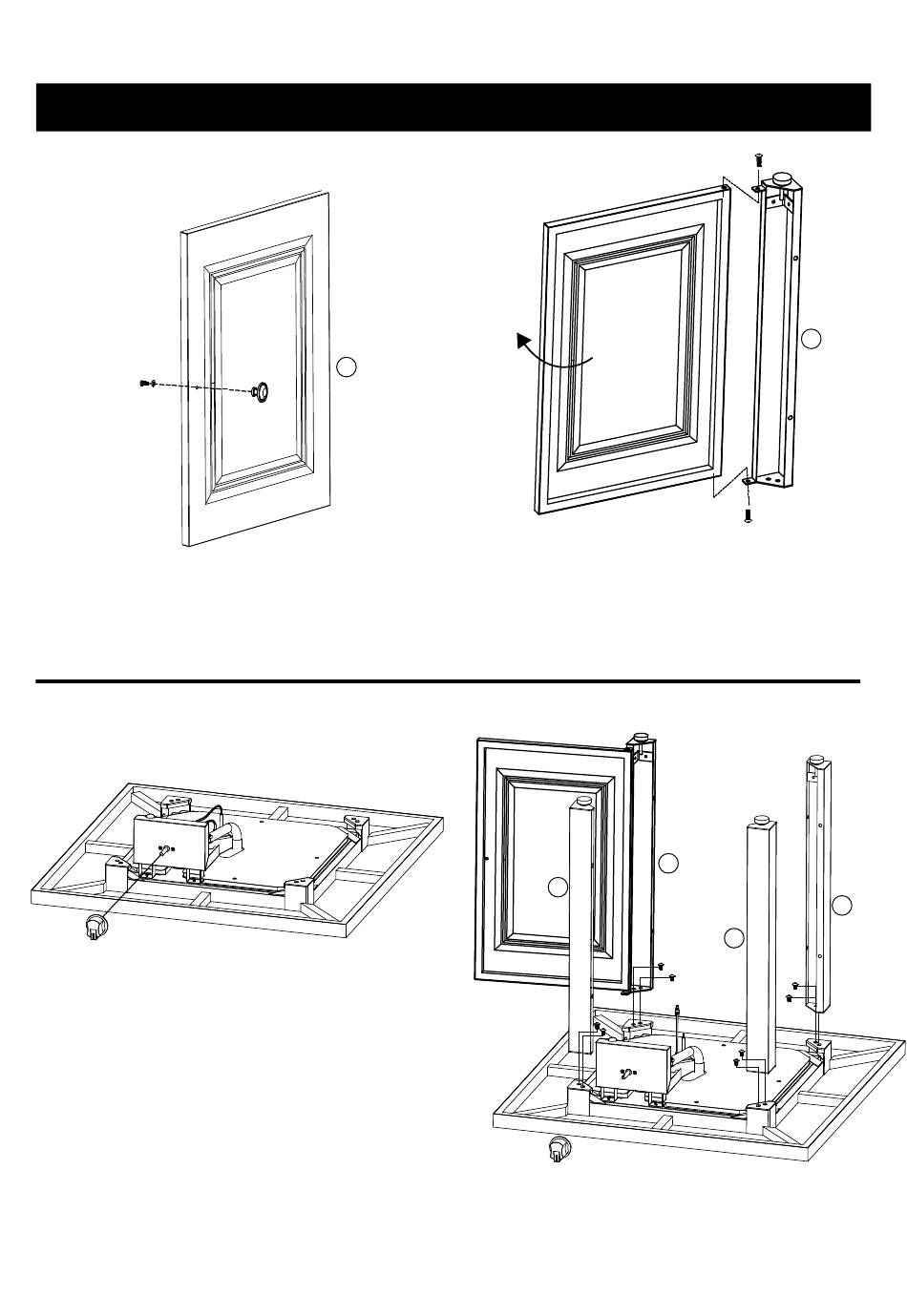

Step 1:
Remove the screws and washer from the door handle ( c ). Attach the door handle ( c ) to
door ( 12 ), then tighten the handle.
Attach door (12) to leg (10) using M6X25 (b) - 2PC
Note： Do not tighten all screws as you will need adjust the holes to ensure proper alignment.
Step 2:
R emove control knob (6), attach legs
Be mindful of the direction of the door (12).
door handle
12
(9), leg (10) and
Page 8 of 20
10
13
leg (13) with M6X12 (a) - 8 pcs.
10
9
9
