USER'S GUIDE
APEX-LOCATOR
«ENDOEST-APEX 02»
«GEOSOFT DENT»

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EndoEst-Apex 02 and is the answer not in the manual?

Questions and answers

Related Manuals for GEOSOFT DENT EndoEst-Apex 02

Summary of Contents for GEOSOFT DENT EndoEst-Apex 02

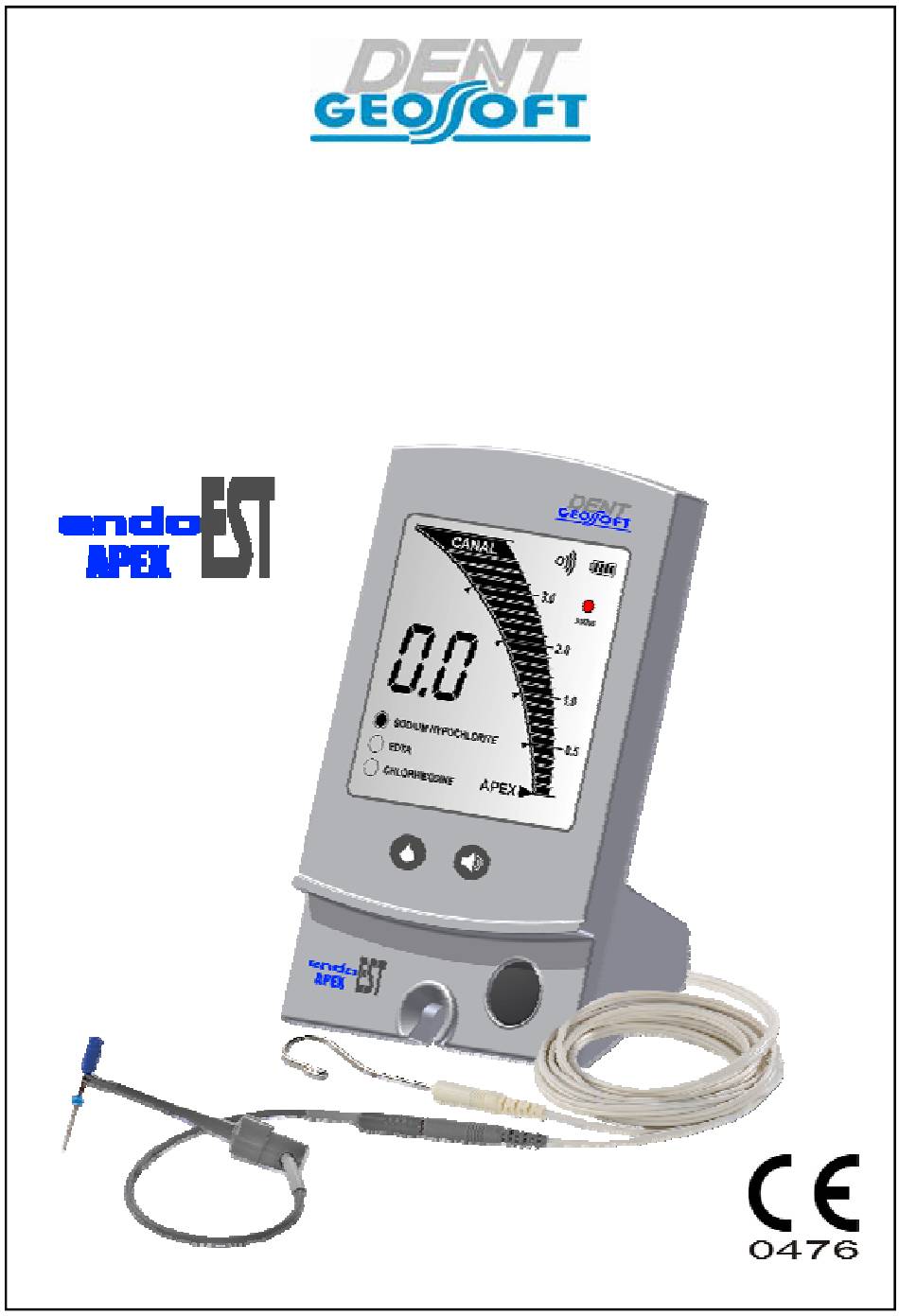

  • Page 1 USER’S GUIDE APEX-LOCATOR «ENDOEST-APEX 02» «GEOSOFT DENT»...
  • Page 2 ! Please, thoroughly read the user’s guide before using the device. Keep the User’s guide for future use. ! Please, address to the manufacturer if you have some questions when using the device. Hotline: +7(495)663-22-11 (extension 170), E-mail: hotline @ geosoft.ru CJSC GEOSOFT DENT (Russia) www.geosoft.ru/en...

  • Page 3: Table Of Contents

    7. Make ready and using…………........………. 8. The device sterilization and disinfection………………………. 9. Maintenance………………..………………………………….. 10. Troubleshooting……………………………………………… 11. Storage conditions, transportation and use…………...……... 12. Information on utilization……………………………………. 13. Information on certification ………………………………….. 14. Warranty ......……………………………………... 15. Symbol descriptions…………….…………………………….. Appendix Electromagnetic Emissions and Immunity……………………….. hotline @ geosoft.ru...

  • Page 4: General Information

    USER’S GUIDE 1. GENERAL INFORMATION 1.1. The device designation: The device EndoEst-Apex 02 is designed for root canal apical constriction localization at the time of endodontic treatment. Two modifications of the device are available in the production range as in the below table 1 Table 1.
  • Page 5 ENDOEST-АРЕХ 02 1.4. Safety measures and warnings: ! Use the device only with the “Geosoft Dent” authentic accessories (see part 3. “Accessories”). ! Do not dismount and do not change the device construction anyhow. In the case of the device integrity damage warranty is considered to be invalid.

  • Page 6: Delivery Set

    The device delivery set is represented in figure 1 1 - Control unit (1 pc); 2 - Cable «Signal Line» (USB (B) -plug) (1 pc); 3 - File clip «Probe Princh» (1 pc); 4 - Lip clip «Oral Hook» (1 pc); www.geosoft.ru/en...
  • Page 7 ENDOEST-АРЕХ 02 5 - Cable USB (A)-USB (B) for the battery charging (1 pc); 6 - Charger (USB-socket) (1 pc); 7 - Tester apex-locator (1 pc); - User’s guide (1 pc) Figure 1. Delivery set hotline @ geosoft.ru...

  • Page 8: Accessories

    It is used as passive electrode during apex location. It is fixed on patient’s lip. 3. Cable «Signal Line» (USBВ-plug) GЕ99.169.000 Connecting cable. Plug- USBB. ! Accessories are in the device set of delivery and can be also shipped loose at extra cost if necessary. www.geosoft.ru/en...

  • Page 9: Specifications

    Applied part BF type  Protection from dust and moisture : (level) IP41;  The device life time - 5 years 4.1. Control unit «EndoEst-Apex 02»:  Power source……………………..Li-Ро battery (3,7V; 700 mAh)  Monochrome LCD display ……………………………..66*66 mm  Measurement range ………………………………..from 3,0 to 0,0 ...

  • Page 10: The Device Outward Appearance

    USER’S GUIDE 5. THE DEVICE OUTWARD APPEARANCE Outward appearance of the device “EndoEst-Apex 02” is represented in the figure 2. Figure 2 where: 1 - case; 2 - LCD display (see fig. 3); 3 - three-color LED indicator «STATUS»; 4 - button «POWER / SOUND» : the device switch on/off,...
  • Page 11 ENDOEST-АРЕХ 02 5* - touch button «SOUND» : adjustment the volume level of the sound signal (only in the modification EndoEst-Apex 02 (C)); 6* - touch button «IRRIGANT» : the choice of irrigation solution (only in the modification EndoEst-Apex 02 (C));...

  • Page 12: The Fundamental Operating Instructions Of The Apex-Locator

    1. Root canal with large apical constriction   Root canal that has exceptionally Fig.4 large apical constriction due to a lesion or incomplete development cannot be accurately measured; the measurement results will be less than the actual length. www.geosoft.ru/en...
  • Page 13 4. Fractured tooth. Leakage through a branch canal Fractured tooth will cause electrical Fig.7 l e a k a g e a n d a c c u r a t e measurement cannot be obtained. A branch canal will also cause electrical leakage.  hotline @ geosoft.ru...
  • Page 14 7. Cutting debris on tooth. Pulp inside canal Thoroughly remove all cutting debris Fig.10 on the tooth. Thoroughly remove all the pulp inside the canal. Otherwise an accurate measurement cannot be obtained. www.geosoft.ru/en...
  • Page 15 10. Extremely dry canal Fig.13 If the canal is extremely dry, the meter will not move until it is quite close to the apex. In this case, try to moisten a canal with saline. hotline @ geosoft.ru...

  • Page 16: Make Ready And Using

    7.1. Battery charging Chargeable Li-Po battery is the “EndoEst-Apex 02” source power. Before the first device use it is necessary to fully charge the battery. One may charge the battery from the mains (110-240)V or from the PC USB-port.
  • Page 17 Number of the indicator colored segments is directly proportional to the current level of battery charge (see fig. 15). Fig.15 When the battery charge is lower than minimally allowable level (<20%), you should recharge it (see p.7.1). hotline @ geosoft.ru...
  • Page 18 . If the readings on the display are out of range from 0.5 ± 0.2, the device is not suitable for use . www.geosoft.ru/en...
  • Page 19 (fig.18). - Connect the electrodes to the cable sockets. Connect the active electrode ((file clip (3 - fig.1) to the socket with the hotline @ geosoft.ru...
  • Page 20 . Tug on the cable. If there is no indication on the display, readings are unstable and/or the signal indicator “Attention” ( ) is burning, then the continuity is broken, and the device is not suitable for use. www.geosoft.ru/en...
  • Page 21 7.7. The optional function of the measuring indication adjustment to a concrete irrigative solution (available only in EndoEst-Apex 02 (С)) The present device has the function of adjustment by a dentist of the measuring indications to the type of an irrigative solution sprung into the patient’s dental root canal during the device’s work.
  • Page 22 7.8. Adjustment the volume level of the sound signal 4 levels volume of the sound signal, including its blackout are provided in this device. On default the device factory settings have "medium" level of sound volume. To change the current parameter in the EndoEst-Apex 02 (С) modification: www.geosoft.ru/en...
  • Page 23 - To distinguish the level of sound volume you’d prefer in the set of 4, make consequent short pressing the touch button «SOUND» (5 - fig.2) or keep it retained until you make your choice pointed. To change the current parameter in the EndoEst-Apex 02 modification: - Switch off the device (see. p.7.10)  ...
  • Page 24 >3,0 (in canal) No sound from 3,0 to 1,1 rare discontinuous signal from 1,0 to 0,6 discontinuous signal of GREEN average frequency from 0,5 to 0,1 frequent discontinuous Flashing on and off signal 0,0 (Аpex) <0,0 (Periodontal) CONTINUOUS sound www.geosoft.ru/en...
  • Page 25 7.10. The device switching off The device switches off automatically in 40 minutes after the last time of device use. - Press and hold down the button «POWER/ MODE» (4– fig.2) for the device forced switching off. hotline @ geosoft.ru...

  • Page 26: The Device Sterilization And Disinfection

    It is recommended to use ultrasound baths “UltraEst”, “UltraEst- FSM” or “UltraEst-M” manufactured by the “Geosoft Dent”. The belongings sterilization should be carried out directly before the first device use and after every patient to avoid cross infection.

  • Page 27: Maintenance

    It’s only specialists of authorized service departments who should replace the battery. Do not open the device to replace the battery yourself. It may be unsafe. Besides, in the case of device opening by user, warranty is considered to be invalid. hotline @ geosoft.ru...

  • Page 28: Troubleshooting

     C heck if there is the power line voltage in the power  Cable for the battery line  Replace the cable for charging is damaged battery charging  The charger is  R eplace the charger defected www.geosoft.ru/en...
  • Page 29 - Switch on the device power If you have not found the necessary information, You may consult the manufacturer on the hotline phone: +7(495)663-22-11 (extension 170), E-mail: hotline @ geosoft.ru or address to the service department hotline @ geosoft.ru...

  • Page 30: Storage Conditions, Transportation And Use

    ! Do not throw the device into the system of household rubbish. Utilize the device according to the utilization regulations of the country where it is used . 13. INFORMATION ON CERTIFICATION EC Quality Assurance System Certificate: Reg № MED 26039 of 27.03.2017 (“CERMET” (Italy)) www.geosoft.ru/en...
  • Page 31 ENDOEST-АРЕХ 02 hotline @ geosoft.ru...
  • Page 32 USER’S GUIDE www.geosoft.ru/en...
  • Page 33 ENDOEST-АРЕХ 02 hotline @ geosoft.ru...
  • Page 34 USER’S GUIDE www.geosoft.ru/en...
  • Page 35 Italy by Dlgs. n. 46 of 24/2/1997 and by Dlgs. n. 37 of 25/1/2010, Annex II excluded point 3.4 Equipment: Apex locator Model names: EndoEst-Apex 02, EndoEst-Apex 02 (C) Quality System: ISO 13485/2003 Classification: Class IIa GMDN code: 16355 The compliance with the 93/42/EEC and 2007/47/ЕС...

  • Page 36: Warranty

    Before addressing to the service department connect to the manufacturer consultant on the hotline: Phone: +7(495) 663-22-11 (extension 170), E-mail: hotline @ geosoft.ru 6. The device is accepted for warranty repair only IN COMPLETE package, involving the user’s guide with the stamp of the manufacturer and with the product selling mark.

  • Page 37: Symbol Descriptions

    The device serial number Date of the device manufacturing Manufacturer REV. The device revision version IP41 Ingress Protection Rating dust and moisture European authorized representative Mark of conformity to product quality and safety standards of the European Union (CE-mark) 0476 hotline @ geosoft.ru...

  • Page 38: Appendix

    APPENDIX Electromagnetic Emissions and Immunity Table 1 The device “EndoEst-Apex 02” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Emission test...
  • Page 39 ENDOEST-АРЕХ 02 Table 2 The device “EndoEst-Apex 02” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Immunity test Test level...
  • Page 40 Un) emission in Un) interruptions, for 25 periods for 25 periods it is recommended that the device be powered from an uninterruptible power supply or a battery. Note: Un- level mains voltage prior to filing of the test exposure www.geosoft.ru/en...
  • Page 41 ENDOEST-АРЕХ 02 Table 3 The device “EndoEst-Apex 02” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Immunity Test level Complianc...
  • Page 42 Recommended working clearances between portable and mobile RF communication devices and the device “EndoEst-Apex 02” The device “EndoEst-Apex 02” is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by...
  • Page 43 Quality Warranty Card № 1 Date of repair Malfunction Service Master Quality Warranty Card № 2 Date of repair Malfunction Service Master Quality Warranty Card № 3 Date of repair Malfunction Service Master...
  • Page 44 «ENDOEST-APEX 02» Моdification С (need to note ) № : Stamp Date of manufacture Date of sale Seller «ENDOEST-APEX 02» Моdification С (need to note ) № : Stamp Date of manufacture Date of sale Seller «ENDOEST-APEX 02» Моdification С...
  • Page 45 ENDOEST-АРЕХ 02 Certificate of acceptance EndoEst-Apex 02 Modification of the device EndoEst-Apex 02 (С) Serial number Date of manufacture Version Controller The stamp of the manufacturer Sales mark Date of sale Seller Stamp of trading organization Sales mark is obligatory! The warranty is invalid without sales mark.
  • Page 46 USER’S GUIDE For notes www.geosoft.ru/en...
  • Page 47 Bld. 5, h. 6A, 2-oy Troitskiy per., Moscow, Russia, 129090 PHONE / FAX: +7(495) 663-22-11, E-mail: mail@geosoft.ru Web: www.geosoft.ru Hot line: PHONE: +7(495) 663-22-11 (ext.170), E-mail: hotline @ geosoft.ru Representative in Europe: DENTAL WORLD SRL Via Antichi Pastifici, 15-70056 Molfetta (BA). Italy Tel +39 080 3381004;...
  • Page 48 THE GEOSOFT DENT EQUIPMENT ENDOEST-MOTOR ENDOEST MOTOR-MINI ENDOEST-APEX ENDOEST-3D ENDOEST NANOEST LUMIEST PULPEST OBTUREST ESTUS LED-ALLADIN ESTUS LED-ALLADIN MC GUTTAFILL TERMOEST-CERAMIC GUTTAEST-V/M GUTTAEST TERMOEST ULTRAEST ULTRAEST-FSM ULTRAEST-М FOTEST-LED...
