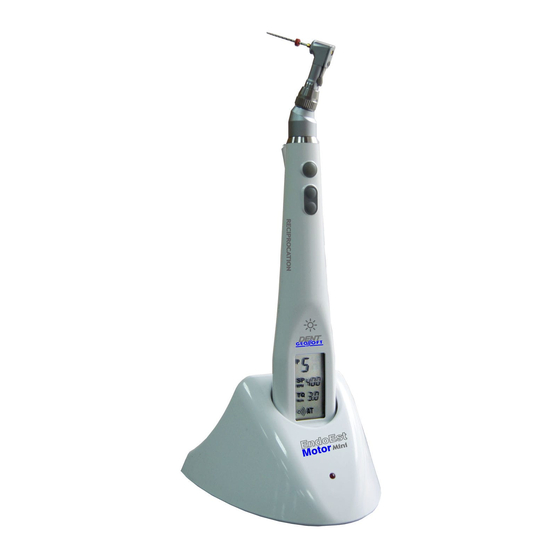

GEOSOFT DENT ENDOEST MOTOR-MINI User Manual

Endodontic motor
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER'S GUIDE
ENDODONTIC MOTOR
ENDOEST MOTOR-MINI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENDOEST MOTOR-MINI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEOSOFT DENT ENDOEST MOTOR-MINI

Summary of Contents for GEOSOFT DENT ENDOEST MOTOR-MINI

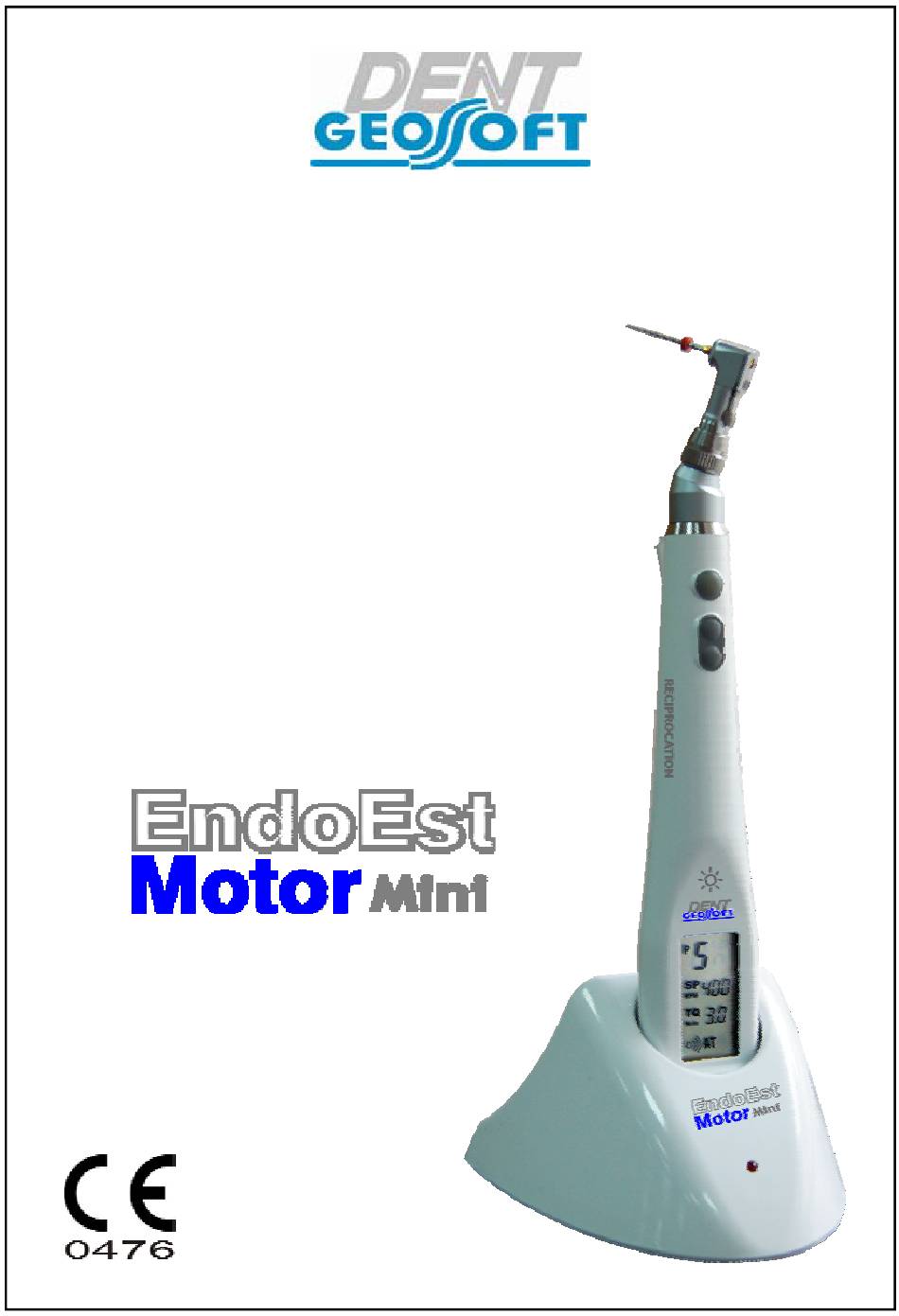

  • Page 1 USER’S GUIDE ENDODONTIC MOTOR ENDOEST MOTOR-MINI...
  • Page 2 ! Please, thoroughly read the user’s guide before using the device. Keep the User’s guide for future use. ! Please, address to the manufacturer if you have some questions when using the device. Hotline: +7(495)663-22-11 (extension 170), E-mail: hotline @ geosoft.ru CJSC GEOSOFT DENT (Russia) www.geosoft.ru/en...

  • Page 3: Table Of Contents

    ENDOEST MOTOR-MINI CONTENTS 1. General information ..........…………….. 2. Delivery set………........……………………. 3. Accessories………………….………………………………… 4. The device outward appearance.......…………...…… 5. Specifications………………......……………….. 6. Make ready…………………………………………………….. 7. Using………………………………………………………….. 8. The fundamental operating instructions of the apex-locator ….. 9. Caring for the device. Information on sterilization and ……….

  • Page 4: General Information

    Reciprocation - L 1.2. Field of application: The device is designed for use in dentistry (endodontics) and can be used only in hospitals by medical specialists licensed to practice dentistry. The manufacturer is not responsible for the device misuse. www.geosoft.ru/en...
  • Page 5 ENDOEST MOTOR-MINI 1.3. The device functional capabilities: Table 2. The list of programs endo-motor Programs The name of the file Mode of system, under which rotation adapted the program Basic, Apexlocation Reciprocation Apexlocation -L Reciprocation/-L 1 ,2, 3, 4, 5...
  • Page 6 Do not use the device on patients with pacemakers. 1.5. Safety measures and warnings ! Use the device only with the “Geosoft Dent” authentic accessories (see part 3. “Accessories”). ! Do not dismount and do not change the device construction anyhow.
  • Page 7 ENDOEST MOTOR-MINI ! In case of any abnormality in the endo-motor functioning (noise, shakiness, vibrations), stop using the device immediately and try to find the cause of malfunction, basing on the information represented in the part 11. ! This endo-motor has function of the file limit torque which lessens probability of break during its use.
  • Page 8 1.8m ! The device normally operates at temperatures 10-35°С, relative air humidity not more than 80%, atmosphere pressure (101±3) kPa. Any violation of the pointed restrictions may lead to the device failure. 1.6. Side effects: Not found out. www.geosoft.ru/en...

  • Page 9: Delivery Set

    ENDOEST MOTOR-MINI 2. DELIVERY SET The device delivery set is represented in table 3. Table 3. Position name Number of pieces for modification Basic Apexlocation / -L, Reciprocation / -L Control unit with head Apex-locator cable (micro pin 2 mm, single)
  • Page 10 Cable for external apex-locator connection (micro pin (2 mm) – micro pin (2 mm). Length - 15±5 cm 7. Mains charger GЕ99.049.000 Input voltage: (220±10%) V~50/60Hz. Output voltage: 4,5V; 500 mA. Plug - 3,5 mm ! Accessories are shipped apart at extra cost www.geosoft.ru/en...

  • Page 11: The Device Outward Appearance

    ENDOEST MOTOR-MINI 4. THE DEVICE OUTWARD APPEARANCE Outward appearance of the «EndoEst Motor-Mini” is represented in the figure 1. Fig.1. EndoEst Motor-Mini Back view Back view End view 10 11 17 18 hotline @ geosoft.ru...
  • Page 12 «Reciprocation/-L»); 4 - indicator of the instrument preset rotation speed value (rpm); 5 - indicator of the instrument limit torque preset value (Ncm); 6 - indicator “Auto twist”/“Auto stop”; 7 - indicator of sound signal switch on “Sound”. www.geosoft.ru/en...

  • Page 13: Specifications

    ENDOEST MOTOR-MINI 5. SPECIFICATIONS Electrical and maintenance device specifications answer the requirements of: EN 60601-1:2006, EN 80601-2-60:2012, EN 60601- 1-2:2007 5.1. Control unit & head Power source - Li-Ро battery (3,7V; 700 mAh);  E lectrical safety - type В;...

  • Page 14: Make Ready

    USER’S GUIDE 5.2. Charger stand  E lectrical safety - class II, type В; Overall dimensions - (98*98*60) ±3 mm; Weight -175±10 g; 5.3. Mains charger  М оdel- DN500 (Geosoft Dent);  I nput /Output voltage - (220±10%)V, ~50/60Hz / 4,5 V; 500 mA.
  • Page 15 ENDOEST MOTOR-MINI Red light (13-fig.1) indicates that battery is being charged. When the battery is fully charged, indicator changes color to yellow-green. Note: Standard time for the battery charging is about 1,5 hours, however, it depends on the battery current charge, level of its wear, temperature.
  • Page 16 - again to turn on the power and re-calibrate the micro-motor without head. If no head calibration is successful, then you need to lubricate, clean or replace the head. If no head system again fails the calibration it is necessary to replace or repair the control unit of the device. www.geosoft.ru/en...
  • Page 17 ENDOEST MOTOR-MINI 6.6. The device setting All settings of the device should be carried out only when the micro- motor doesn’t rotate. 6.6.1. Torque and speed programming in the “continuous” rotation mode The device has 6 programs for user to independently program speed limit torque for different Ni-Ti instruments "continuous"...
  • Page 18 Table 4: Table 4 Preset limit torque, Ncm 0,2- 1,7- 1,9- 2,1- 2,3- 2,6- 2,9- 3,4- Maximal speed, rpm When the speed is more than maximally allowed, the preset value of limit torque will lessen automatically. www.geosoft.ru/en...
  • Page 19 ENDOEST MOTOR-MINI Attention! When selecting rotation speed for the instrument, follow the Ni-Ti instrument manufacturer’s recommendations (see the Torque card enclosed). Do not preset speed value on the display more than maximally allowed by the manufacturer. 6.6.1.3. Limit torque programming...
  • Page 20 - when attaining limit torque - when attaining the apex Working with micro-motor in the Discontinuous signal mode of reverse rotation like “rattle” Operation of integrated apex- Discontinuous signal locator Checking the apex-locator Frequent electrical circuit continuity discontinuous signal www.geosoft.ru/en...
  • Page 21 ENDOEST MOTOR-MINI On default the device factory settings have medium sound signals activated. Fig.6 To change the current setting: - Activate “Sound” indicator on the display. To do it press the button “POWER/SET” (3-fig.1) in the short run until the indicator starts flashing on and off (fig.6);...
  • Page 22 6.7. Fixing Ni-Ti instrument (file) (fig.9) - Shift the file fixing lever on the head over the far right position (position “open”); - Set the file in the clamping hole until bumping, slightly turning the file until matching it with the fixing mechanism; www.geosoft.ru/en...
  • Page 23 ENDOEST MOTOR-MINI - Recover the place of the fixing lever open (position “close”); - Slightly pull the file and be sure that it’s reliably fixed. close Attention! Use only sterile files. Sterilize files according to the User’s guide of the files manufacturer.
  • Page 24 If it doesn’t happen - the apex-locator electrical circuit continuity is broken and it’s out of service. www.geosoft.ru/en...
  • Page 25 - Free connector of the cable plug to cable of the external apex- locator* (instead of file clip). *Compatible apex-locator models: NanoEst, EndoEst-Apex 02, EndoEst-3D, EndoEst produced by JSC GEOSOFT DENT and other manufactures’ models, compatible with connector micro pin 2mm. hotline @ geosoft.ru...

  • Page 26: Using

    - Press the pointed button once again to stop the micro-motor rotation. Note: If the micro-motor is continuously rotating 10 minutes in the "continuous" rotation mode or 3 minutes in the "reciprocal" rotation mode , the micro-motor switches off automatically. www.geosoft.ru/en...
  • Page 27 ENDOEST MOTOR-MINI Variant 2: - To start the micro-motor press and hold down the button “START/ STOP” (4-fig.1). - Release the button to stop the micro-motor rotation. 7.8. Function “Auto twist”/“Auto stop” when limit torque attaining If during the micro-motor rotation the current limit torque attains preset value, function activated in the device setting mode (see p.6.6.3) activates automatically:...
  • Page 28 7.9. The integrated apex-locator operation. Function “Auto stop- Reverse” when apex attaining (only for modifications «Apexlocation/-L» and «Reciprocation/-L”). - The apex-locator switches on automatically when closing the apex- locator electrical circuit in patient’s oral cavity during the micro- motor rotation (fig. 17). Fig.17 www.geosoft.ru/en...
  • Page 29 ENDOEST MOTOR-MINI The apex-locator operation is followed with discontinuous sound signal depending on the file top location area: 1 area (from 3,0 to 1,6) - rare discontinuous signal 2 area (from 1,5 to 0,6) - discontinuous signal of average frequency 3 area (from 0,5 to the apex) - frequent discontinuous signal Having attained the apex point, the micro-motor stops automatically.
  • Page 30 7.10. The device switching off The device switches off automatically (see p. 6.3 “Power saving function”) - Press and hold down the button “POWER/SET” (3-fig.1) for about 2 seconds for the device forced switching off. www.geosoft.ru/en...

  • Page 31: The Fundamental Operating Instructions Of The Apex-Locator

    ENDOEST MOTOR-MINI 8. THE FUNDAMENTAL OPERATING INSTRUCTIONS OF THE APEX-LOCATOR For more accurate apex-locator measurement results, please, follow these rules: 1. Carefully isolate the studied tooth and working file from saliva. We recommend to use cofferdam, cotton swabs, saliva ejectors;...
  • Page 32 4. Fractured tooth. Leakage through a branch canal Fractured tooth will cause electrical Fig.22 l e a k a g e a n d a c c u r a t e measurement cannot be obtained. A branch canal will also cause electrical leakage.  www.geosoft.ru/en...
  • Page 33 ENDOEST MOTOR-MINI 5. Retreatment of a root canal, filled with gutta-percha The gutta-percha must be completely Fig.23 removed to eliminate its insulating effect. After removing the gutta- percha, pass a small file all the way through apical constriction and then put a little saline in the canal, but do not let it overflow the canal opening.
  • Page 34 10. Extremely dry canal Fig.28 If the canal is extremely dry, the meter will not move until it is quite close to the apex. In this case, try to moisten a canal with saline. www.geosoft.ru/en...

  • Page 35: Disinfection

    ENDOEST MOTOR-MINI 9. CARING FOR THE DEVICE. INFORMATION ON STERILIZATION AND DISINFECTION 9.1. The micro-motor head lubricating The micro-motor head (C) (1- Fig.29) should be lubricated before each sterilization time. For the lubrication of the head it is recommend to use a standard aerosol can with a lubricant (3- Fig.29) and a special rubber...
  • Page 36 It is recommended to use ultrasound baths “UltraEst”, “UltraEst- FSM” or “UltraEst-M” manufactured by the “Geosoft-Dent”. The belongings sterilization should be carried out directly before the first device use and after every patient to avoid cross infection.

  • Page 37: Maintenance

    ENDOEST MOTOR-MINI 9.3. Disinfection All the device components are to be disinfected. The device disinfection should be carried out before the first use and after every patient to avoid cross infection. Disinfection must be carried out by chemical method of the device surface wiping with a napkin wetted in the ethanol and wrung according to the corresponding regulatory documents.
  • Page 38 - Take the new ring and place it instead of the old one, acting in reverse sequence; - Fix the head to the control unit (see p. 6.6). Note: The replaceable seal ring is not in the delivery set and is acquired apart at extra cost. (see part 3 “Accessories”) . www.geosoft.ru/en...

  • Page 39: Troubleshooting

    ENDOEST MOTOR-MINI 11.TROUBLESHOOTING Table 7. General malfunctions Malfunction Cause Action The device doesn’t   The battery is Charge the battery (see switch on. “LB” discharged p.6.1) displays The device switches   Power saving function See p.6.3 off automatically activates ...
  • Page 40 The WDT - Press “Reset”(9-fig.1) button control unit buttons timer was not using any thin subject (e.g. a pressing activated needle). Herewith the device power switches off automatically. - Switch on the device power (see p.6.4) www.geosoft.ru/en...
  • Page 41 Replace the replace the cable. working file. If you have not found the necessary information, You may consult the manufacturer on the hotline phone: +7(495)663-22-11 (extension 170), E-mail: hotline @ geosoft.ru or address to the service department hotline @ geosoft.ru...

  • Page 42: Storage Conditions, Transportation And Use

    ! Do not throw the device into the system of household rubbish. Utilize the device according to the utilization regulations of the country where it is used . 14. INFORMATION ON CERTIFICATION EC Quality Assurance System Certificate: Reg № MED 26039 of 27.03.2017 (“CERMET” (Italy)) www.geosoft.ru/en...
  • Page 43 ENDOEST MOTOR-MINI hotline @ geosoft.ru...

  • Page 44: Warranty

    Before addressing to the service department connect to the manufacturer consultant on the hotline: Phone: +7(495) 663-22-11 (extension 170), E-mail: hotline @ geosoft.ru 6. The device is accepted for warranty repair only IN COMPLETE package, involving the user’s guide with the stamp of the manufacturer and with the product selling mark.

  • Page 45: Symbol Descriptions

    ENDOEST MOTOR-MINI 16. SYMBOL DESCRIPTIONS Symbol Description Warning: Address to supporting documentation Type of protection against electric-shock hazard. Device of the II class Protection level from electrical shock: Applied part B type Continuous current Only use the device with the mains charger provided...

  • Page 46: Appendix

    APPENDIX Electromagnetic Emissions and Immunity Table 1 The device “EndoEst Motor-Mini” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Emission test...
  • Page 47 ENDOEST MOTOR-MINI Table 2 The device “EndoEst Motor-Mini” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Immunity test Test level...
  • Page 48 Un) power mains for 25 periods for 25 periods interruptions, it is recommended that the device be powered from an uninterruptible power supply or a battery. Note: Un- level mains voltage prior to filing of the test exposure www.geosoft.ru/en...
  • Page 49 ENDOEST MOTOR-MINI Table 3 The device “EndoEst Motor-Mini” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Immunity Test level Complianc...
  • Page 50 Recommended working clearances between portable and mobile RF communication devices and the device “EndoEst Motor-Mini” The device “EndoEst Motor-Mini” is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by...
  • Page 51 Quality Warranty Card № 1 Date of repair Malfunction Service Master Quality Warranty Card № 2 Date of repair Malfunction Service Master Quality Warranty Card № 3 Date of repair Malfunction Service Master...
  • Page 52 ENDOEST MOTOR-MINI Modification Basic Арех (tick) Serial № : Stamp Date of manufacture Date of sale Seller ENDOEST MOTOR-MINI Modification Basic Арех (tick) Serial № : Stamp Date of manufacture Date of sale Seller ENDOEST MOTOR-MINI Modification Basic Арех (tick) Serial №...
  • Page 53 ENDOEST MOTOR-MINI Certificate of acceptance Basic Apexlocation Reciprocation Modification (tick) Control unit Head Date of manufacture Version Controller The stamp of the manufacturer Sales mark Date of sale Seller The stamp of trading organization Sales mark is obligatory! The warranty is invalid without sales mark.
  • Page 54 Directive amendments 2007/47/EC of the European Parliament) transposed in Italy by Dlgs. n. 46 of 24/2/1997 and by Dlgs. n. 37 of 25/1/2010, Annex II excluded point 3.4 Equipment: Endodontic motor Model names: EndoEst Motor-Mini Quality System: ISO 13485/2003 Classification: Class IIa GMDN code: 38763 The compliance with the 93/42/EEC and 2007/47/ЕС...
  • Page 55 Bld. 5, h. 6A, 2-oy Troitskiy per., Moscow, Russia, 129090 PHONE / FAX: +7(495) 663-22-11, E-mail: mail@geosoft.ru Web: www.geosoft.ru Hot line: PHONE: +7(495) 663-22-11 (ext.170), E-mail: hotline @ geosoft.ru Representative in Europe: DENTAL WORLD SRL Via Antichi Pastifici, 15-70056 Molfetta (BA). Italy Tel +39 080 3381004;...
  • Page 56 THE GEOSOFT DENT EQUIPMENT ENDOEST-MOTOR ENDOEST MOTOR-MINI ENDOEST-APEX ENDOEST-3D ENDOEST NANOEST LUMIEST PULPEST OBTUREST ESTUS LED-ALLADIN ESTUS LED-ALLADIN MC GUTTAFILL GUTTAEST-V/M GUTTAEST TERMOEST TERMOEST-CERAMIC ULTRAEST ULTRAEST-FSM ULTRAEST-М FOTEST-LED...
