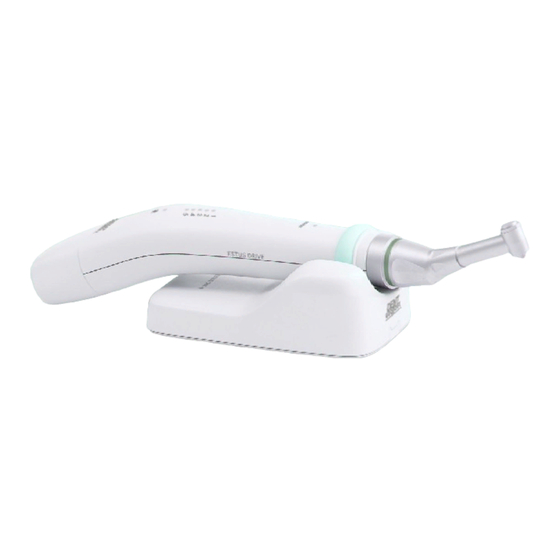

Summary of Contents for GEOSOFT DENT ESTUS

  • Page 2 ! Please, read the user’s manual carefully before the operation. Keep the User’s manual for future use. ! Please, address to the manufacturer if you have some questions when using the device. Tel.: +7(495)663-22-11 (extension 109), E-mail: geosoftdent@geosoft.ru JSC GEOSOFT DENT (Russia) www.geosoft-dent.ru/en...

  • Page 3: Table Of Contents

    ESTUS SONIC CONTENTS 1. General information.........………………... 2. Delivery set………........……………………. 3. Accessories………………….………………………………… 4. Technical specifications……......……………….. 5. “Estus Sonic” appearance....………………………… 6. Preparatory stage and working procedure……………………. 7. Sterilization and disinfection…………..……………………... 8. Maintenance………………...………………………………… 9. Troubleshooting….…………………………………………… 10. Storage, transportation and use……………………………… 11. Information on utilization…………………………………….

  • Page 4: General Information

    USER’S MANUAL 1. GENERAL INFORMATION 1.1. Intended use: Endodontic ultrasonic scaler «Estus Sonic» is part of the dental complex "Estus", intended for carrying out procedures in the field of dentistry. This device is designed for ultrasonic treatment of the tooth root canals.
  • Page 5  Possibility of expanding the device functionality in terms of settings and displaying the values of its working parameters when the device is operating as a part of the “Estus” dental complex together with the “Estus Multi”* main control unit.
  • Page 6 USER’S MANUAL ! Do not disassemble or modify the device. Disassembly of the device, violation of the device integrity cancels the warranty. ! Avoid letting any liquid inside the device’s housing. ! Do not use the device close to flammable agents. The device is not suitable for use in presence of flammable anesthetic agents with air, oxygen or nitric oxide.

  • Page 7: Delivery Set

    Any violation of these restrictions may cause the device error. 2. DELIVERY SET Delivery set variants are in the table 1 Table 1 The device element Quantity in delivery set variants, pcs 35-SP 35-S0 Control unit «Estus Sonic» Battery unit Tip "Е4ES" 22 mm Tip-endochuck "Е1/07ES" www.geosoft-dent.ru/en...
  • Page 8 File for tip-endochuck "Е1/07ES" (21 mm) Tip “Е5DES” 16mm with diamond-coated Hygienic case Wrench for tips Stand «Estus One-B» 10 Charging stand «Estus Energy-S» 11 Charger cable USB - USBB 12 Power adapter (USB-socket) 1А 13 User’s Manual «Estus Sonic» 14 Warranty Card «Estus Sonic»...

  • Page 9: Accessories

    ESTUS SONIC 3. ACCESSORIES Battery unit GЕ99.205.000 Additional battery unit for the «Estus Sonic» tip (2х3.7 V,800mА/h) Stand «Estus One-B» GЕ99.208.000 Single-stand for the «Estus Sonic» tip Stand “Estus Two-B” GE99.209.000 Double-stand for all “Estus” handpieces Charging stand “Estus Energy-S”...
  • Page 10 USER’S MANUAL Charger cable USB-USВB GЕ99.001.00P Cable for charging stand "Estus Energy-S" / "Estus Energy-D". Length 1.8 m Power adapter (USB-socket) 1А GЕ99.005.00P Model: Robiton USB1000/White Input voltage - (100-240) V, ~50/60 Hz Output voltage - 5 V; 1А. Power adapter (USB-socket) 2А...
  • Page 11 ESTUS SONIC Tip «E3ES». GЕ99.230.000 The tip for a lateral gutta-percha condensation in a canal. Tip «E3DES». GЕ99.232.000 The diamond coated tip for unsealing a canal and for a calcificate removing. Tip «E4ES». GЕ99.233.000 The tip for the ledges removal during a root canal filling at its repeated processing.
  • Page 12 USER’S MANUAL Tip «E10ES». GЕ99.241.000 The tip for the retrograde preparation of the tooth canals. Small diameter length is 4,5 mm. Tip «E10DES». GЕ99.242.000 The diamond coated tip for the retrograde preparation of the tooth canals. The diamond coating length is 3,3 mm. Tip «E11ES».

  • Page 13: Technical Specifications

    «Estus Sonic» handpiece. The «Sonic-KeyES» wrench for the tips. GЕ99.238.000 The wrench for fixation of the working tips of the «Estus Sonic» handpiece. Autoclavable. ! Accessories are delivered separately for an additional fee 4. TECHNICAL SPECIFICATIONS 4.1. «Estus Sonic» handpiece: ...
  • Page 14  Dimensions - (181*33*43) ±3 mm  Weight - 110 ±5 g  Service time of the device - 5 years. 4.2. Charging stand «Estus Energy-S»:  Power supply - 5 V, 1А;  Electric shock protection - the device of class II;...

  • Page 15: Estus Sonic" Appearance

    ESTUS SONIC 5. ”ESTUS SONIC” APPEARANCE Appearance of the «Estus Sonic» is on the figure1 Figure 1. «Estus Sonic» www.geosoft-dent.ru/en...
  • Page 16 5. «STATUS» indicator (see table 3); 6. LED scale includes 5 indicators to display the chosen working mode; 7. Discharge indicator of the removable battery unit; B. Stand «Estus One-B» for the handpiece; C. Charging stand «Estus Energy-S» : 8. Charging socket; 9. Charge indicator;...
  • Page 17 ESTUS SONIC Table 3. STATUS indicator variants STATUS indication color Meaning WHITE Power on. The tip is not identified Activation of the pair creation mode or a warning that the current settings are different WHITE from the factory settings blinking (changed by the user).

  • Page 18: Preparatory Stage And Working Procedure

    1 hour at +25 °С А) Disconnect the battery unit from the handpiece (in package the battery unit is packed separately from the handpiece) B) Insert the battery unit into the charging socket of the charging stand “Estus Energy-S” www.geosoft-dent.ru/en...
  • Page 19 ESTUS SONIC C) Connect the cable USB- USBB to the charging stand and the power adapter, then put the power adapter into the mains socket. Power adapter (100-240) V ~50/60 Hz Cable USB - USBB USBB-socket D) Wait till the battery is fully charged.
  • Page 20 USER’S MANUAL E) Take the charged battery unit out of the charging stand and connect it to the handpiece. In the absence of the battery unit in the socket of the сharging stand, the voltage is automatically disconnected from the terminals of the сharging stand, ensuring complete electrical safety of the product.
  • Page 21 ESTUS SONIC Charge the handpiece battery unit in a timely manner. Do not let the battery unit discharge completely Step 2. Working tip installation - Use the tips and files, recommended by the manufacturer (see section 3). - Be sure to sterilize the tips and files, if specified by the manufacturer, before using them after each patient (see section 7).
  • Page 22 USER’S MANUAL wrench file C) In case of using an tip-endochuck, loosen the fixing nut on the endochuck, insert the working file into the endochuck and carefully tighten the nut by turning the wrench clockwise. Be sure to use the wrench to secure the attachment tip and/or file.
  • Page 23 ESTUS SONIC Put the hygienic case on the handpiece from the side of the working tip. To avoid cross infections at the contact of the handpiece with oral mucosa use the hygienic case from the delivery set. Be sure to sterilize the hygiene case before use after each patient (see section 7) Step 4.
  • Page 24 If the STATUS indicator blinks white three times when the device is turned on, it means that the settings have been changed by the user with the “Estus Multi” device. For default factory setting return see Step 10. Step 5. Working mode choosing The handpiece has 4 working modes with the different vibration amplitude (power) («Нigh-SCAN», «Нigh», «Мiddle», «Low»).
  • Page 25 «М» Middle «L» Low The working parameters changing in modes «Н-SCAN», «Н», «M», «L» is IMPOSSIBLE, but using the “Estus Multi”* control unit the additional working mode is activated « » (Favorite), allowing to change the scaler working parameters in a large range of values.
  • Page 26 USER’S MANUAL To select the required volume Hold at switch- level hold the ring switch ing power on when switching the power on. Within 10 sec. volume levels change one another cyclically. To choose the required volume level stop pressing the ring switch. Step 8.
  • Page 27 ESTUS SONIC If, when the scaler is activated, the “STATUS” indicator does not light up, but BLINKING orange, accompanied by a specific “error” sound, then the resonant frequency of the tip could not be determined. This can happen in two reasons: 1. if the tip was connected while the handpiece was powered on, and 2.
  • Page 28 Step 11. Pair creating mode activation For the joint work of the handpiece and the «Estus Multi» control unit it is necessary to create a pair by radio channel. To activate pair creating mode on the handpiece:...

  • Page 29: Sterilization And Disinfection

    ESTUS SONIC The pair creation further procedure of the handpiece with “Estus Multi” is described in the User’s Manual “Estus Multi” (p. 12.2. Setting "Creating/Deleting pair" function) 7. STERILIZATION AND DISINFECTION All the device's elements directly contacted with the patient's oral liquid, mucosa and tooth tissues must be preliminarily cleaned and sterilize.
  • Page 30 USER’S MANUAL Instruction № 1 Manufacturer: JSC Geosoft Dent (Russia) Product: Working tips, Hygienic case, Wrench for tips, Files for tip- endochuck   Table 5 ATTENTION Restrictions at repeated The minimal guaranteed number of processing processing cycles is: - 250 - for working tips, hygienic case, wrench for tips;...

  • Page 31: Maintenance

    ESTUS SONIC Instruction # 1 was validated by the Manufacturer of the medical product as suitable for repeated using. The company, conducting the processing, is responsible for repeated processing and for using the equipment, materials and the recruitment of the personnel providing the required result.

  • Page 32: Troubleshooting

    USER’S MANUAL -For optimal battery unit performance, replace it about once every 2 years. - It is not recommended to purchase an additional battery unit in advance, as its long-term storage impairs its technical characteristics. - An additional battery unit is not included into the delivery set and should be purchased separately for an additional fee.
  • Page 33 ESTUS SONIC Problem Possible cause Solution The battery unit   Charger cable is Replace the charger cable does not charge damaged.   Power adapter is Replace the power adapter defective. Problems with sound.   Volume level is Check the settings (see not set correctly.
  • Page 34 USER’S MANUAL Problem Possible cause Solution   During scaler work the Working tip See Step 8 STATUS LED blinked resonant frequency not found ORANGE   STATUS indicator During the last Turn the scaler on and off in blinking ORANGE in cycle of the scale, air by pressing the ring button the resonant...

  • Page 35: Storage, Transportation And Use

    Dispose of the product in accordance with the disposal regulations of the country in which this product is used. The device “ESTUS SONIC” belongs to the medical waste hazard category of class A (non-hazardous waste of medical institutions).

  • Page 36: Symbol Descriptions

    USER’S MANUAL 12. SYMBOLS DESCRIPTION Symbol Description Warning: Address to supporting documentation Type of protection against electric-shock hazard. Device of the II class Direct current Protection level from electrical shock: Applied part BF type Do not throw away the device into system of daily rubbish The device serial number Date of the device manufacturing...

  • Page 37: Appendix

    APPENDIX 1. Electromagnetic Emissions and Immunity Table 1 The device “Estus Sonic” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment.
  • Page 38 USER’S MANUAL Table 2 The device “Estus Sonic” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Immunity test Test level...
  • Page 39 ESTUS SONIC Continuation of Table 2 Immunity test Test level Compliance Electromagnetic EN 60601-1-2 Level environment - guidance Voltage dips, Voltage dips: Voltage dips: Mains power short quality should be interruptions 0% U for 0.5 0% U for 0.5 that of a typical and voltage cycle (at 0°, 45°,...
  • Page 40 USER’S MANUAL Table 3 The device “Estus Sonic” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Immunity Test level Complianc...
  • Page 41 Recommended working clearances between portable and mobile RF communication devices and the device “Estus Sonic” The device “Estus Sonic” is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by...
  • Page 42 USER’S MANUAL 2. Information on the availability in the medical device of a pharmaceutical product for medical use, materials of animal and (or) human origin Materials in the device Description (if they are) Pharmaceutical product absent for medical use Materials of animal and (or) absent human origin 3.
  • Page 43 ESTUS SONIC Manufactured by JSC GEOSOFT DENT 129090, Russia, Moscow, Vasnetsov pereulok, 7 TEL./ FAX: +7(495) 663-22-11 (ext.109), E-mail: geosoftdent@geosoft.ru Web: www.geosoft-dent.ru/en Representative in Europe: DENTAL WORLD SRL Via Antichi Pastifici, 15-70056 Molfetta (BA). Italy Tel +39 080 3381004; Fax+39 080 3386617 Version 27.01.23...
