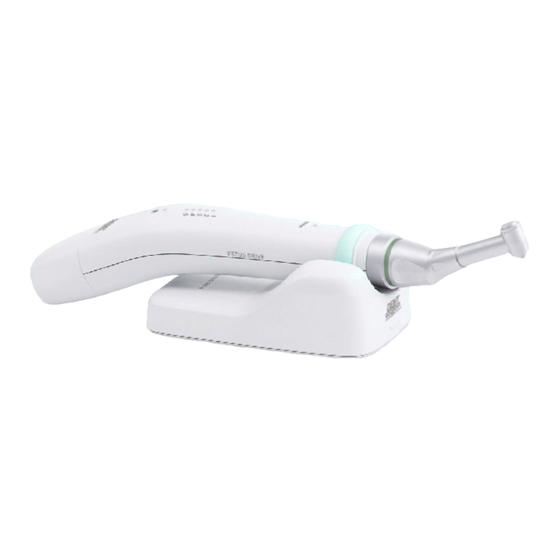

GEOSOFT DENT ESTUS User Manual

Endodontic motor
Hide thumbs Also See for ESTUS:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESTUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEOSOFT DENT ESTUS

Summary of Contents for GEOSOFT DENT ESTUS

  • Page 2 ! Please, thoroughly read the user’s guide before using the device. Keep the User’s guide for future use. ! Please, address to the manufacturer if you have some questions when using the device. Tel.: +7(495)663-22-11 (extension 109), E-mail: geosoftdent@geosoft.ru JSC GEOSOFT DENT (Russia) www.geosoft.ru/en...

  • Page 3: Table Of Contents

    ESTUS DRIVE CONTENTS 1. General information........…………………. 2. Delivery set........…………………………….. 3. Accessories…………………………………………………….. 4. Technical specifications......……………………….. 5. “Estus Drive” appearance.....…………………………….. 6. Preparatory stage and working procedure…………………….. 7. Basic rules of work with apex locator…...…………………….. 8. Sterilization and disinfection………………………………….. 9. Maintenance…………………………………………………… 10. Troubleshooting……………………………………………….

  • Page 4: General Information

    USER’S MANUAL 1. GENERAL INFORMATION 1.1. Intended use: Endodontic motor “Estus Drive” is a device for the tooth root canals preparation using: - all types of Ni‐Ti files with continuous and reciprocal rotation and with built-in apex locator to control the distance from the file tip to the apical constriction (physiological apex) during the endomotor operation;...
  • Page 5 ESTUS DRIVE 1.8. Operating principal: Endodontic motor: the drive combined with “RT”, “SAF” or “GF” heads allows to control endodontic continuous and reciprocal rotations of Ni-Ti files, self-adjusting files or endodontic burs and brushes of the “GentleBrush File” type accordingly.
  • Page 6 “Estus” dental complex together with the “Estus Multi (Plus)”* main control unit. www.geosoft.ru/en...
  • Page 7 * is not included into the delivery set and should be purchased separately. 1.10 Precautions and Warnings ! Use the device with the original “Geosoft Dent” accessories only (see section 3). ! Do not disassemble or modify the device. Violation of the device integrity cancels the warranty.
  • Page 8 USER’S MANUAL ! Always clean the shank of the file to be set. The contaminated head clamp mechanism could cause improper file fixation in the head and also the contact loss and violation of the measuring circuit continuity of the in-built apex locator. ! Do not start the motor until the file is not reliably set in the head clamp mechanism.

  • Page 9: Delivery Set

    Table 1 The device element Quantity, pcs in the delivery set variant Drive Drive+ Drive+ Drive+ Smart Control unit “Estus Drive” Battery unit “RT” head “SAF” head “GF” head Protective case for the “RT” head Adapter for the heads lubrication...
  • Page 10 ** The presented products are delivered individually packed. Information on use of the devices is in the different User’s manual : User’s manual Irrigation pump “Estus Pump”, User’s manual Smart stand “Estus Smart-B” and User’s manual Wireless adapter “Estus USB”.

  • Page 11: Accessories

    Miniature button head with magnetic lock for working with endodontic burs and brushes of the GentleBrush File type. Battery unit GE99.205.000 Additional battery unit for the “Estus Drive” handpiece (2х3.7 V, 800 mАh). Wireless adapter “Estus USB” GE41.000.000 Special wireless adapter for changing the working parameters of the “Estus Drive”...
  • Page 12 “Estus Drive” handpiece. Irrigation pump “Estus Pump” GE38.000.000 One-channel pump the irrigating solution feed during the operation of the “Estus Drive” handpiece with SAF head. Protective case for the RТ head GE99.206.000 Protective reusable sterilizable silicone case for RT head electro-isolation during the work in combined mode “motor + apex locator”.
  • Page 13 Single-stand for the “Estus Drive” handpiece. Stand «Estus Smart-B» GЕ44.000.000 Smart stand for performing the following functions: 1) as an Estus drive handpiece stand 2) setting and indication of endomotor operation parameters 3) autonomous apex locator ! Accessories are delivered separately, additionally paid...

  • Page 14: Technical Specifications

    USER’S MANUAL 4. TECHNICAL SPECIFICATIONS 4.1. Handpiece “Estus Drive” :  Power supply - Li-Ро battery unit (2х3,7 V; 800 mАh).  Electric shock protection - Device with the built-in power supply. Applied part is of the ВF type.  The built-in radio module NF-03: frequency range - 2,4-2,525GHz, max output capacity - 7 dBm (0,00501W), cover range -up to 3 m in the direct vision.
  • Page 15 ESTUS DRIVE Table 2 Parameters Parameters Values at using factory settings Estus USB, Estus Smart-B or Estus Multi (Plus)* with the RТ head: Head model GE29.140.000GG with magnetic lock, 16:1 reduction, button type Speed in the mode of Р1=250, from 200 to 400 continuous rotation with Р2=350,...
  • Page 16 Rotation speed with accuracy Р1=6500, from 3000 to 9000 ±10%, rpm Р2=3000 (with a step 500) is not in the delivery set, could be purchased separately, additionally paid ** when using “Estus Smart-B” and setting this parameter is not available www.geosoft.ru/en...
  • Page 17 ESTUS DRIVE 4.2. Charging stand “Estus Energy-S”:  Power - 5V, 1А.  Electric shock protection - the product is of the class II.  Dust and water protection rate - IP41.  Dimensions - (87*56*49) ±3 mm  Weight - 130±10 g ...

  • Page 18: Estus Drive" Appearance

    USER’S MANUAL 5. “ESTUS DRIVE” APPEARANCE Appearance of endomotor “ESTUS DRIVE” is on the figure 1, including: А. “Estus Drive” handpiece: 1. Control unit; 2. RT / SAF / GF heads; 3. Removable battery unit; 4. Ring switch (see table 3);...
  • Page 19 ESTUS DRIVE Figure 1. “Estus Drive” www.geosoft.ru/en...
  • Page 20 USER’S MANUAL Table 3. Variants of using the ring switch Power Press ring switch Result supply 1 time Power on Holding up to 10 sec. Volume adjustment Holding > 20 sec. Pair creating mode activation 1 time Start/ Stop motor rotary 2 times The working program selection 2 times with holding...
  • Page 21 RT head is connected GREEN Connection with «ESTUS USB» blinking BLUE SAF head is connected BLUE Connection with “ESTUS PUMP” or blinking In SAF mode timer value > 0 ORANGE GF head is connected LILAC LED scale displays the current...

  • Page 22: Preparatory Stage And Working Procedure

    1 hour < +5°С 1 hour at +25°С Step 1. Battery unit charging А) Disconnect the battery unit from the handpiece B) Put the battery unit into the charging socket of the charging stand “Estus Energy-S” www.geosoft.ru/en...
  • Page 23 ESTUS DRIVE C) Connect the cable USB- USB-B to the сharging stand and the power adapter, then put the power adapter into the mains socket. Power adapter (100-240) V ~50/60 Hz Cable USB - USB-B USB-B-socket D) Wait till the battery is fully charged.
  • Page 24 USER’S MANUAL E) Take the charged battery unit out of the сharging stand and connect it to the handpiece. In the absence of the battery unit in the socket of the сharging stand, the voltage is automatically disconnected from the terminals of the сharging stand, ensuring complete electrical safety of the product.
  • Page 25 (that is, they were changed by the user using "Estus USB", “Estus Smart-B” or " Estus Multi (Plus)". To return to the factory settings, see Step 12 on page 38 В) Set the RT, SAF or GF head in the handpiece socket.
  • Page 26 USER’S MANUAL The determination of the head is confirmed by the activation of the corresponding operating mode. Put in the head in the control unit only when the power is turned on, in order to ensure a reliable connection of the head gearbox to the motor and correct automatic recognition.
  • Page 27 ESTUS DRIVE Step 3. Connecting the cable and apex locator lip clip To activate the function built-in apex locator, connect the apex apex locator locator cable with the cable attached lip clip to the handpiece. lip clip Built-in apex locator is active only during operation with the RT head.
  • Page 28 “Estus USB”, Smart stand «Estus Smart-B» or the control unit “Estus Multi (Plus)”*. *“Estus Multi (Plus)” is not included into the delivery set, but could be purchased if necessary (see section 3). The operating parameters changing range is presented in section 4 “Technical specifications”.
  • Page 29 ESTUS DRIVE Step 5. Apex locator measuring circuit continuity check Apex locator measuring circuit continuity is the significant factor for the accurate and reliable localization of the canal apical constriction. Even the short-time electrical contact failure between any circuit elements could cause accuracy and/or stability measurements loss.
  • Page 30 USER’S MANUAL 2. Do not use contaminated or oxidized files. 3. Check the apex locator measuring circuit continuity every time before working and also if during the working process the readings are absent or unstable. For checking the circuit continuity: Close the lip clip and the working file to each other.
  • Page 31 ESTUS DRIVE Press the ring switch 3 times 3 times or automatically to turn the power off or the in 10 min. device switched automatically in 10 minutes. All the indicators on the handpiece go out. Step 7. Audio volume adjustment Apex locator sound projector has 4 volume levels: low, normal, high and off.
  • Page 32 USER’S MANUAL During operation with SAF head it is necessary to use pump “Estus Pump” for the irrigating solution supply. The absence of the pump connected to the motor (see Step 13.3) causes the blocking of the motor start by the program.
  • Page 33 ESTUS DRIVE activated: 100% torque <50% direct rotation STR rotation STR function is accompanied by the STATUS indicator blinking LILAC. B) At the connected lip clip the built-in apex locator starts working automatically at the moment of inserting the file into the tooth.
  • Page 34 USER’S MANUAL APEX LOCATOR mint indication is activated beginning with 2,0 units apex locator apex In approaching the apex gradually all the indicators light up 5- 4- 3- 2- 1. Apex locator operation is accompanied by the interrupting audio signal, that increases the frequency during moving the file closer to the apex.
  • Page 35 1.The following functions could be switched off if necessary: - “Apical Reverse” function with the help of “Estus USB” or “Estus Multi (Plus)”. In this case at the apex achieving the reverse rotation is not switched on, and the file rotates directly. ATTENTION! At this function switched off the file could go beyond the apical constriction.
  • Page 36 USER’S MANUAL Recommended motor operation time in this mode - 4 min., maximum - 5 min. rotation stop If the operation time lasts less than 4 minutes, after the motor stops, the current time is stored, the STATUS indicator Time is <4 min.
  • Page 37 ESTUS DRIVE rotation stop If the timer value is 5 min. the motor stops autostop automatically and the timer is reset. 5 min. Timer reset 3) Operation with GF head The motor operation with the GF head is not displayed on the handpiece scale.
  • Page 38 USER’S MANUAL Step 11. Function of automatic calibration system of the micro- motor In the process of the motor rotation the handpiece automatic calibration occurs, which compensate the inner friction in the micro- motor system. In the case of exceeding the accepted value of the inner friction in the micro-motor system, after the motor stops the program warns of failed calibration by three-times blinking of the...
  • Page 39 For the joint work of the handpiece and wireless adapter “Estus USB” , irrigation pump “Estus Pump”, Smart stand «Estus Smart-B» or control unit “Estus Multi (Plus)” by radio channel it is necessary to create a pair. Step 13.1. Pair creating mode activation Hold at power on >20sec...
  • Page 40 WHITE Step 13.2. Pair creating with “Estus USB” А) Insert the wireless adapter “Estus USB” into the socket USB of your PC. The white indicator lights up on the adapter. B) Activate the pair creating mode on the handpiece “Estus Drive”...
  • Page 41 ESTUS DRIVE C) As soon as “Estus Drive” detects the pump the blinking STATUS indicator would turn BLUE. D) To confirm the pair creation, press and hold the ring switch on the handpiece about 3 sec. till the audio signal appears and the power of both devices switches off.

  • Page 42: Basic Rules Of Work With Apex Locator

    USER’S MANUAL 7. BASIC RULES OF WORK WITH APEX LOCATOR For more accurate apex-locator measurement results, please, follow these rules: 1. Carefully isolate the studied tooth and working file from saliva. We recommend to use cofferdam, cotton swabs, saliva ejectors; 2.
  • Page 43 ESTUS DRIVE 2. Root canal with blood, saliva or a chemical solution overflowing from the opening If blood, saliva, or a chemical solution overflows from the opening of the root canal and contacts gums, this will result in electrical leakage and an accurate measurement can not be obtained.
  • Page 44 USER’S MANUAL 5. Retreatment of a root canal, filled with gutta-percha The gutta-percha must be completely removed to eliminate its insulating effect. After removing the gutta- percha, pass a small file all the way through apical constriction and then put a little saline in the canal, but do not let it overflow the canal opening.
  • Page 45 ESTUS DRIVE 8. Caries contacts with gum  In this case, electrical leakage through the caries infected area to the gums will make it impossible to obtain an accurate measurement. 9. Blocked canal  The meter will not move if the canal is blocked.

  • Page 46: Sterilization And Disinfection

    USER’S MANUAL 8. STERILIZATION AND DISINFECTION All the device's elements directly contacted with the patient's oral liquid, mucosa and tooth tissues must be preliminarily cleaned and terminally sterilized. All the rest elements and surfaces of the device must be disinfected for further using without sterilization.
  • Page 47 ESTUS DRIVE Instruction on repeated sterilization and disinfection of reusable medical products Instruction #1 Manufacturer: JSC Geosoft Dent (Russia) Product: RТ, SAF and GF heads  Table 6 To lubricate the product, carefully read section 9 (1) of ATTENTION this manual.
  • Page 48 To keep in a sealed craft package not longer than it is specified by the craft package manufacturer (from 21 to 60 days) Instruction # 2 Manufacturer: JSC Geosoft Dent (Russia) Product: apex locator lip clip “Oral Hook”, RТ head protective case  Table 7 ATTENTION...
  • Page 49 ESTUS DRIVE Not applied in this case. Automatic cleaning/ disinfection Clean the product surface. Rinse with distilled Hand cleaning/ disinfection water and dry with a clean napkin. Inspection, maintenance Not applied in this case. and testing Packing Recommended to pack the product in the craft package for sterilization.

  • Page 50: Maintenance

    USER’S MANUAL Disinfection should be conducted chemically by wiping the product surface with thoroughly wrung napkin, soaked in 70% ethyl spirit solution. To avoid entering he disinfectant into the product housing, it is strictly forbidden to carry out disinfection by immersing the handpiece or the charging station in any solutions.
  • Page 51 ESTUS DRIVE If the oil flowing from the head clamping hole is dark or contains particles, continue to lubricate until clean oil flows out. 3. After the procedure, thoroughly remove all excess oil from the head. For a better treatment of the head, use the specialized unit “Assistina-301 Plus”...

  • Page 52: Troubleshooting

    USER’S MANUAL 10. TROUBLESHOOTING Table 8. General problems and solutions Problem Possible cause Solution Handpiece does not   The battery unit is Charge the battery unit switch on. discharged. (see section 6 -Step 1).   Handpiece switches off Energy saving function See section 6-Step 6 spontaneously.
  • Page 53 “Apical Reverse” Activate the apex locator is failed. function were indication and/or “Apical switched off with Reverse” function with «Estus Multi «Estus Multi (Plus)”/ “Estus (Plus)”/ “Estus USB” USB”   Incorrect values of the T he canal is over-...
  • Page 54 USER’S MANUAL Table 9. Troubleshooting in case of the built-in apex location measurement circuit continuity violation № Action Indicators 1-5 blink Switch on the handpiece power (see section. 6 -Step 2) 1 Check the correctness and reliability ОК See p.2 of the apex locator cable with the handpiece battery unit and lip clip fixation in the cable socket (see...

  • Page 55: Storage, Transportation And Use

    Dispose of the product in accordance with the disposal regulations of the country in which this product is used. The device “ESTUS DRIVE” belongs to the medical waste hazard category of class A (non-hazardous waste of medical institutions).

  • Page 56: Symbol Descriptions

    USER’S MANUAL 13. SYMBOLS DESCRIPTION Symbol Description Warning: Address to supporting documentation Type of protection against electric-shock hazard. Device of the II class Direct current Protection level from electrical shock: Applied part BF type Do not throw away the device into system of daily rubbish The device serial number Date of the device manufacturing...

  • Page 57: Appendix

    APPENDIX 1. Electromagnetic Emissions and Immunity Table 1 The device “Estus Drive” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment.
  • Page 58 USER’S MANUAL Table 2 The device “Estus Drive” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Immunity test Test level...
  • Page 59 ESTUS DRIVE Continuation of Table 2 Immunity test Test level Compliance Electromagnetic EN 60601-1-2 Level environment - guidance Voltage dips, Voltage dips: Voltage dips: Mains power short quality should be interruptions 0% U for 0.5 0% U for 0.5 that of a typical and voltage cycle (at 0°, 45°,...
  • Page 60 USER’S MANUAL Table 3 The device “Estus Drive” is intended for use in the electromagnetic environment specified below. The customer ore the user of the device should assure that it is used in such an environment. Immunity Test level Complianc...
  • Page 61 Recommended working clearances between portable and mobile RF communication devices and the device “Estus Drive” The device “Estus Drive” is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by...
  • Page 62 USER’S MANUAL 2. Information on the availability in the medical device of a pharmaceutical product for medical use, materials of animal and (or) human origin Materials in the device Description (if they are) Pharmaceutical product absent for medical use materials of animal and (or) absent human origin 3.
  • Page 63 ESTUS DRIVE Manufactured by JSC GEOSOFT DENT 129090, Russia, Moscow, Vasnetsov pereulok, 7 TEL./ FAX: +7(495) 663-22-11 (ext.109), E-mail: geosoftdent@geosoft.ru Web: www.geosoft.ru/en Representative in Europe: DENTAL WORLD SRL Via Antichi Pastifici, 15-70056 Molfetta (BA). Italy Tel +39 080 3381004; Fax+39 080 3386617 Version 08.12.21...
